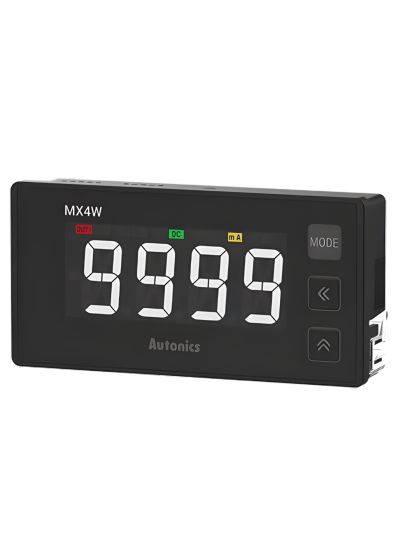

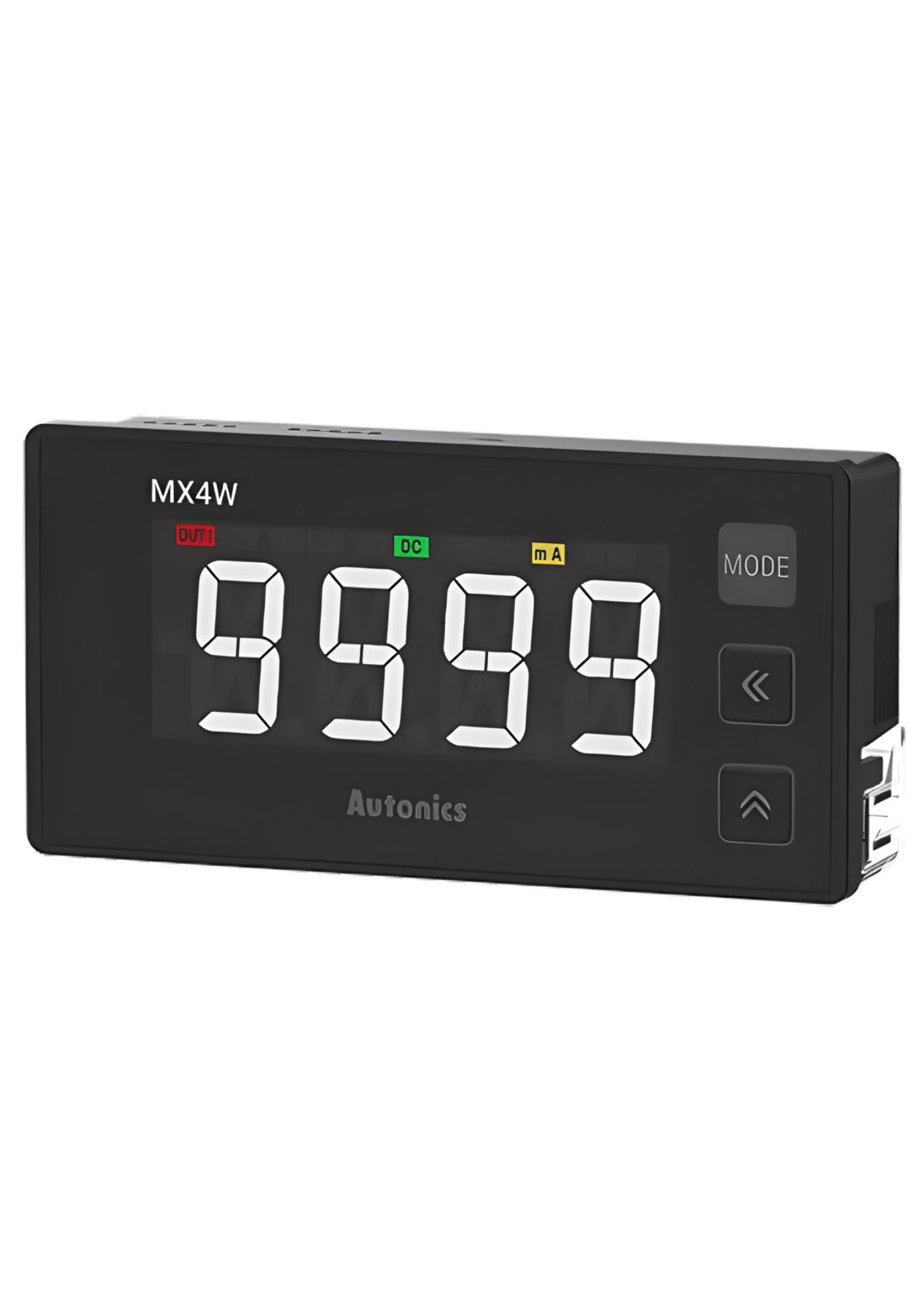

Autonics MX4W-A-F2, 12 Segment, DC current, AC current Frequency, LCD Display Multi Panel Meter
In stock
SKU
MX4W-A-F2
Special Price
₹3,626.70
Regular Price
₹6,594.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Display method | 12 segment (measurement value display part: white, character height: 19mm), other display parts (red, green, yellow, indicator model: white) LCD method |
| Character height | 19mm |
| Max. display Range | -9999 to 9999 (4 digit) |
| Measurement | DC current, AC current, Frequency |
| Input specification |
DC ±20mA, 4-20mA, ±5mA, ±2mA, ±500mA, ±200mA, ±50mA, ±5A, ±2A, AC 0-20mA, 0-5mA, 0-2mA, 0-500mA, 0-200mA, 0-50mA, 0-5A, 0-2A |
| AC Measurement | Select RMS value / AVG value measurement methods |
| Power Factor Display | Power factor display available when input type is DC |
| Power voltage | 24-240VAC~ 50/60Hz, 24-240VDC specialstring |
| Output_Main Output (Comparative Value) | PNP open collector output |
| Max. allowable input |
DC input: approx. -110 to 110% of each measurement input range (when not using minus input: -10 to 110%) AC input: approx. 110% of each measurement input range |
| Display accuracy |
23±5℃ - DC input: ±0.1% F.S. ±2 digit, AC input: ±0.3% F.S. ±3 digit ※ The terminal for 5A of current input, ±0.3% F.S. ±3 digit 0~50℃ - AC/DC input: ±0.5% F.S. ±3 digit ※ The terminal for 5A of current input, ±1% F.S. ±3 digit |
| Display cycle | 0.2 to 5.0 sec (select per 0.1 sec) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP54 (front part, IEC standard) |
