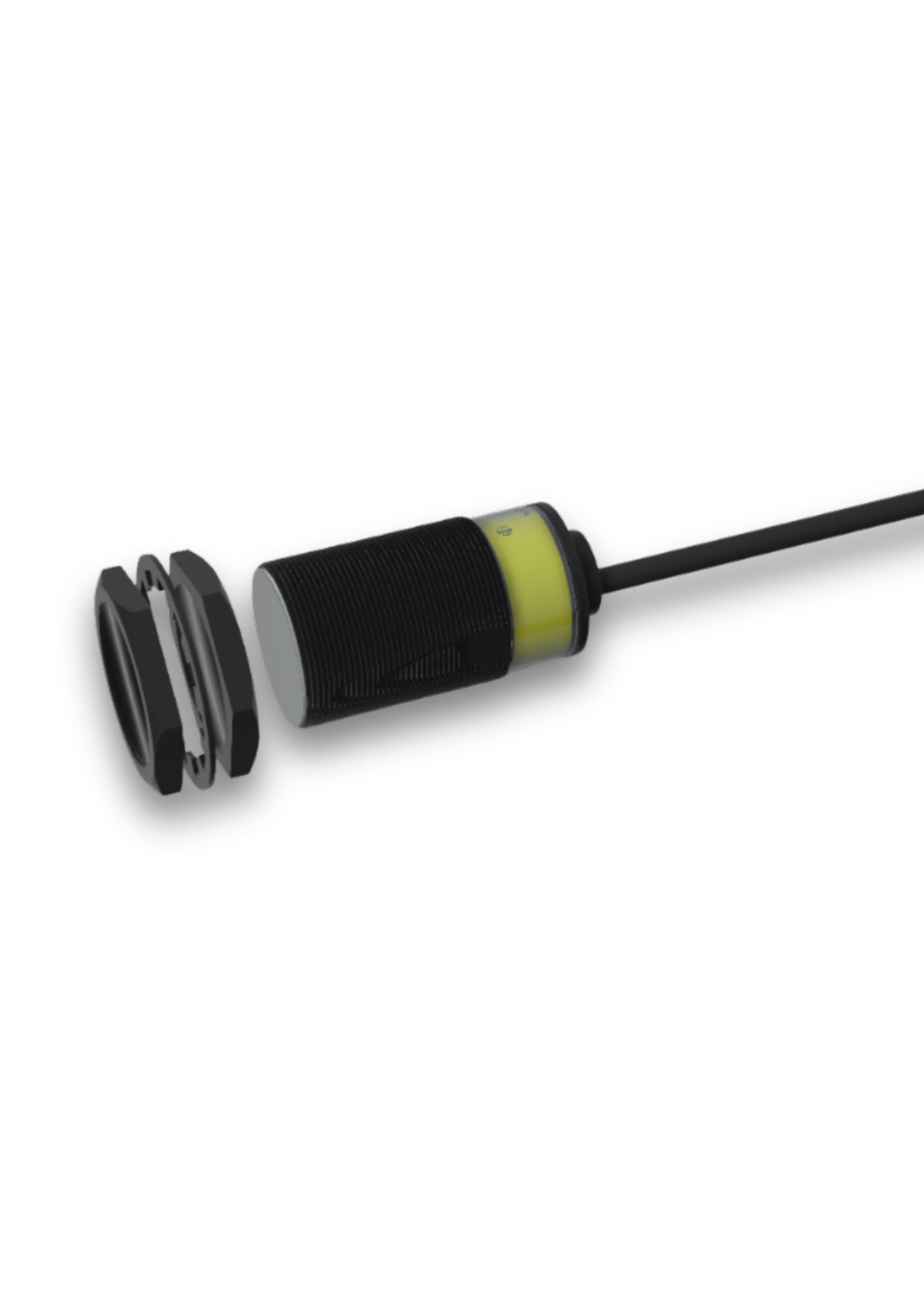

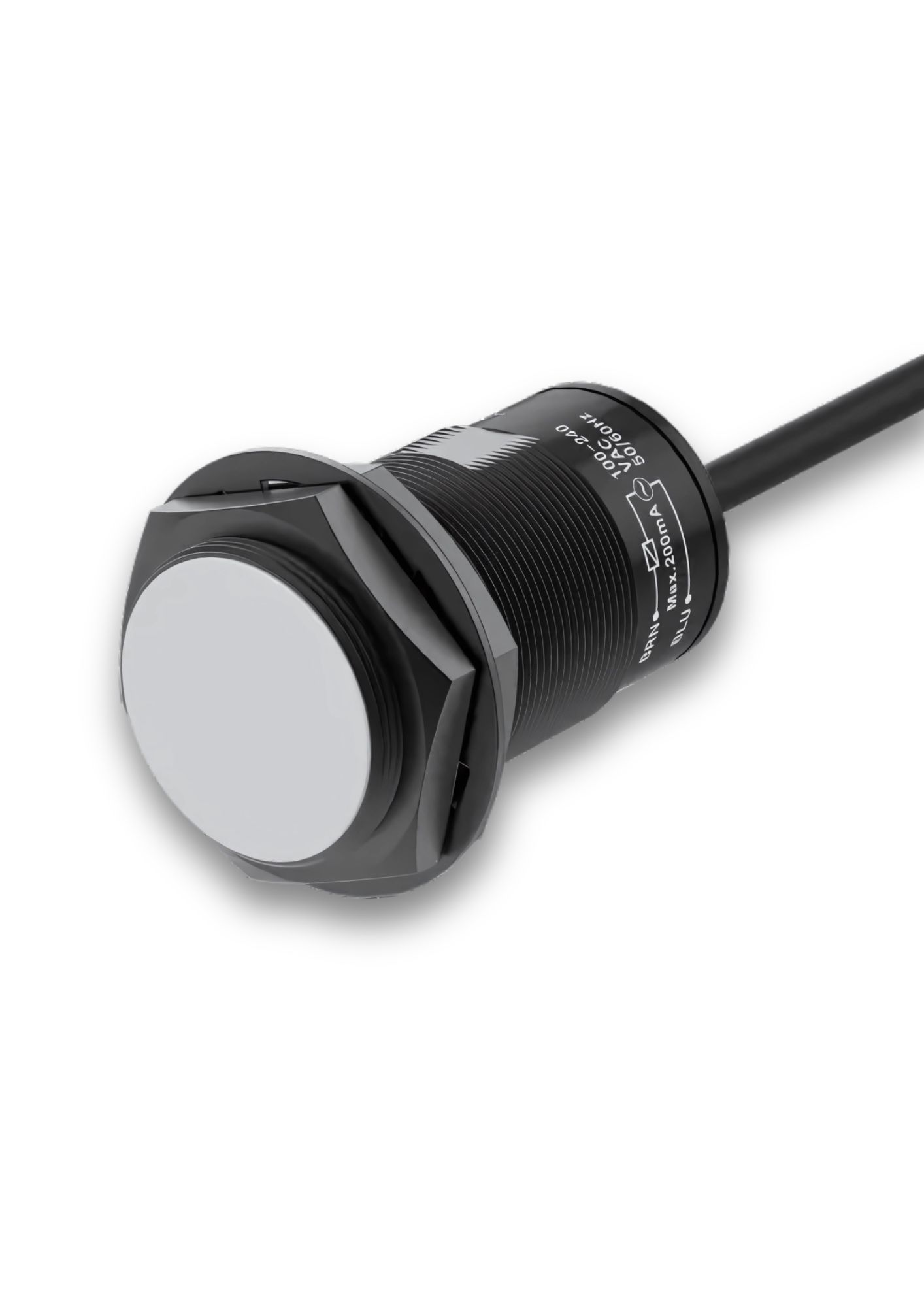

Autonics PRA30-10AO, Cylindrical Inductive Proximity Sensor, Sensing Distance 10mm, NO, 2-Wire, Flush Type
In stock
SKU
PRA30-10AO
Special Price
₹4,312.55
Regular Price
₹7,841.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Installation | Flush |
| Sensing side diameter | Ø30mm |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30×30×1mm(iron) |
| Response frequency | 20Hz |
| Indicator | Operation indicator (red LED) |
| Power supply | 100 - 240 VAC~ 50 / 60 Hz, operating voltage: 85 - 264 VAC~ |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | 5 to 200 mA |
| Residual voltage | Max. 10V |
| Protection circuit | Surge protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Insulation type | Double insulation or reinforced insulation (dielectric strength between measuring input and power part: 1.5kV) |
| Dielectric strength | 1,500 VAC~ 50/60Hz for 1 minute |
| Vibration | 1.0 mm amplitude at 10 to 55 Hz in X, Y, Z for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in X, Y, Z for 3 times |
| Ambient temperature | -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) |
| Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP67 (IEC standard) |
| Connection | Cable type |
| Cable Standard/material | Standard type cable (black): polyvinyl chloride (PVC) |
| Material | Case/Nut: PTFE coated brass, washer: PTFE coated iron, sensing side: PTFE |
