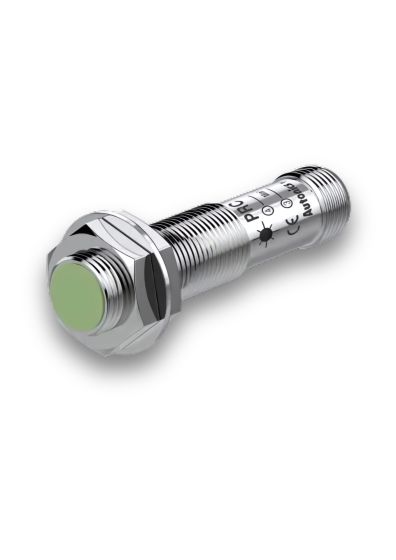

Autonics PRCM12-2DN2, Cylindrical Inductive Proximity Sensor, Sensing Distance 2mm, NPN, 3-Wire, Flush Type
In stock
SKU
PRCM12-2DN2
Special Price
₹2,074.60
Regular Price
₹3,772.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Installation | Flush |
| Sensing side diameter | Ø12mm |
| Sensing distance | 2mm |
| Hysteresis (distance) | Max. 10% of sensing distance |
| Standard sensing target | 12×12×1mm (iron) |
| Response frequency | 1.5kHz |
| Indicator | Operation indicator (red LED) |
| Power supply | 12 - 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC |
| Current specification | Current consumption: Max. 10mA |
| Control output | ≤ 200 mA |
| Residual voltage | Max. 1.5V |
| Protection circuit | Surge protection, output short over-current protection, reverse polarity protection |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | Between charging part & case: 1,500 VAC~ 50/60Hz for 1 min |
| Vibration | 1.0 mm amplitude at 10–55 Hz, each X/Y/Z direction, 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X/Y/Z direction, 3 times |
| Environment - Ambient temperature | -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing/condensation) |
| Environment - Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing/condensation) |
| Protection structure | IP67 (IEC standard) |
| Connection | Connector models |
| Connector type | M12 Connector |
| Material | Case/Nut: nickel plated brass (Ø8mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT |
