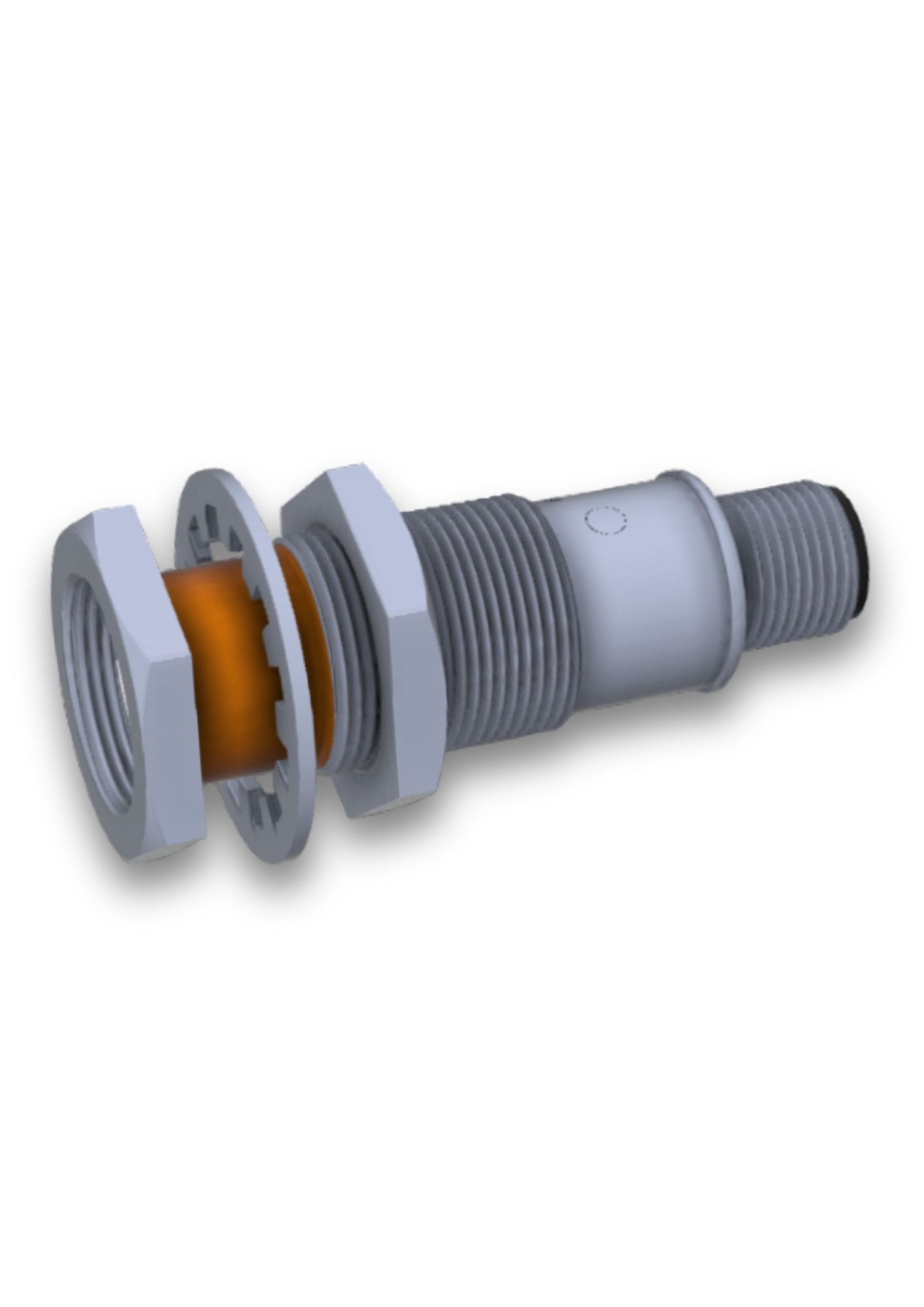

Autonics PRCM18-8DP2, Cylindrical Inductive Proximity Sensor, Sensing Distance 8mm, PNP, 3-Wire, Non-Flush Type
Out of stock
SKU
PRCM18-8DP2
Special Price
₹1,741.85
Regular Price
₹3,167.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Installation | Non-flush |
| Sensing side diameter | Ø18mm |
| Sensing distance | 8mm |
| Hysteresis (distance) | Max. 10% of sensing distance |
| Standard sensing target | 25×25×1mm (iron) |
| Response frequency | 350Hz |
| Indicator | Operation indicator (red LED) |
| Power voltage | 12 - 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC |
| Current specification | Current consumption: Max. 10mA |
| Control output | ≤ 200 mA |
| Residual voltage | Max. 1.5V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min |
| Vibration | 1.0 mm amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
| Environment - Ambient temperature | -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) |
| Environment - Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP67 (IEC standard) |
| Connection | Connector models |
| Connector type | M12 Connector |
| Material | Case/Nut: nickel plated brass (DIA. of sensing side Ø8mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT |
