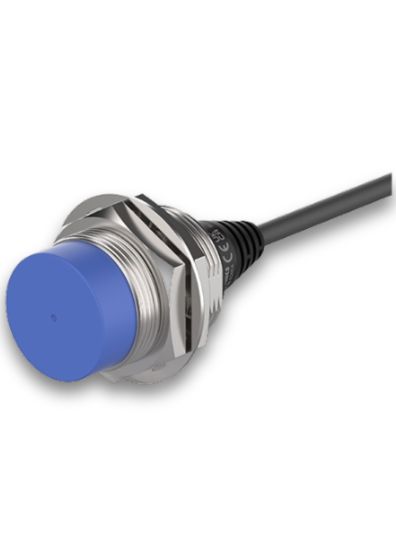

Autonics, PRDT30-25DC, Cylindrical Inductive Long-Distance Proximity Sensors, Sensing Distance of 25 mm, 2-wire, NC
In stock
SKU
PRDT30-25DC
Special Price
₹1,382.15
Regular Price
₹2,513.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Installation: Non-flush
- Sensing side diameter: Ø30 mm
- Sensing distance: 25 mm
- Hysteresis (distance): Max. 10 % of sensing distance
- Standard sensing target: 75 × 75 × 1 mm (iron)
- Response frequency: 100 Hz
- Indicator: Operation indicator (red LED)
- Power supply: 12 – 24 V DC (ripple P-P ≤ 10 %), operating voltage: 10 – 30 V DC
- Current specification: Leakage current: Max. 0.6 mA
- Control output: 2 – 100 mA
- Residual voltage: Max. 3.5 V
- Protection circuit: Surge protection, output short over-current protection, reverse polarity protection
- Insulation resistance: ≥ 50 MΩ (500 V DC megger)
- Dielectric strength: 1,500 V AC, 50/60 Hz for 1 minute
- Vibration: 1.0 mm amplitude at 10 – 55 Hz in X, Y, Z directions for 2 hours
- Shock: 500 m/s² (≈ 50 G) in X, Y, Z directions, 3 times each
- Environment – Ambient temperature: −25 to 70 °C; storage: −30 to 80 °C (no freezing or condensation)
- Environment – Ambient humidity: 35 – 95 % RH; storage: 35 – 95 % RH (no freezing or condensation)
- Protection structure: IP67 (IEC standard)
- Connection: Cable type
- Cable Standard/material: Standard type cable (black), polyvinyl chloride (PVC)
- Material: Case/Nut: nickel-plated brass (sensing side Ø8 mm connector type case: SUS303); washer: nickel-plated iron; sensing side: PBT
