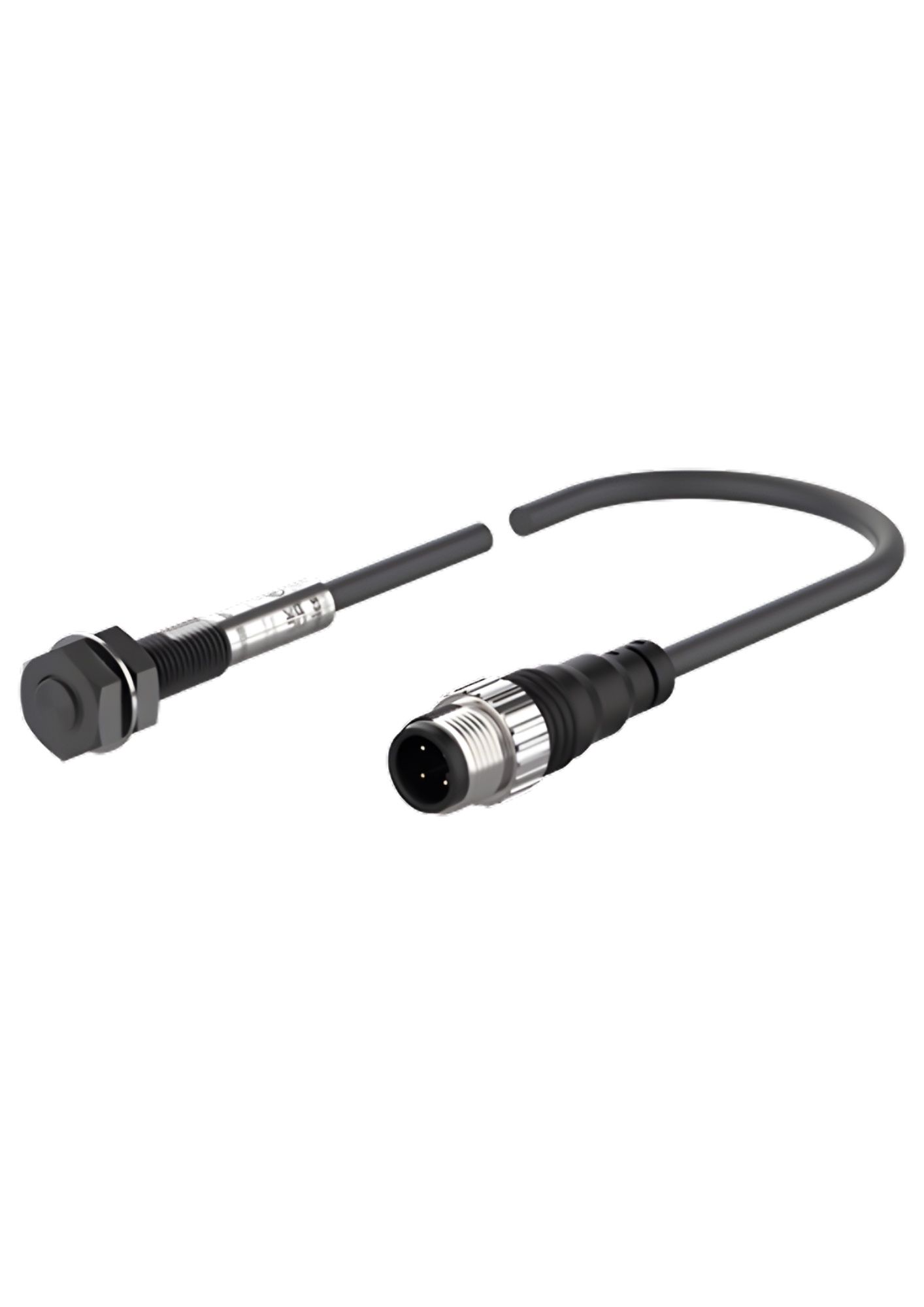

Autonics PRFDAWT08-2DO-IV, Sensing Distance 2mm, Flush Installation, Cylindrical Inductive Full-Metal Long-Distance Proximity Sensor
In stock
SKU
PRFDAWT08-2DO-IV
Special Price
₹4,046.80
Regular Price
₹20,234.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Installation | Flush |
| Sensing side diameter | Ø8mm |
| Sensing distance | 2mm |
| Hysteresis (distance) | Max. 15% of sensing distance |
| Standard sensing target | 12×12×1mm (iron) |
| Response frequency | 150Hz |
| Indicator | Stability indicator (green), operation indicator (red) |
| Power voltage | 12–24 VDC (ripple P-P: ≤10%), operating voltage: 10–30 VDC |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | 3 to 100 mA |
| Residual voltage | Max. 3.5V |
| Protection circuit | Surge protection, output short overcurrent protection, reverse polarity protection |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at 10–55Hz in X, Y, Z directions for 2 hours |
| Shock | 500 m/s² (≈ 50G) in X, Y, Z directions (10 times) |
| Ambient temperature | -25 to 70 ℃, storage: -25 to 70 ℃ |
| Ambient humidity | 35 to 95 %RH (no condensation) |
| Protection structure | IP67 (IEC standard) |
| Connection | Cable connector type |

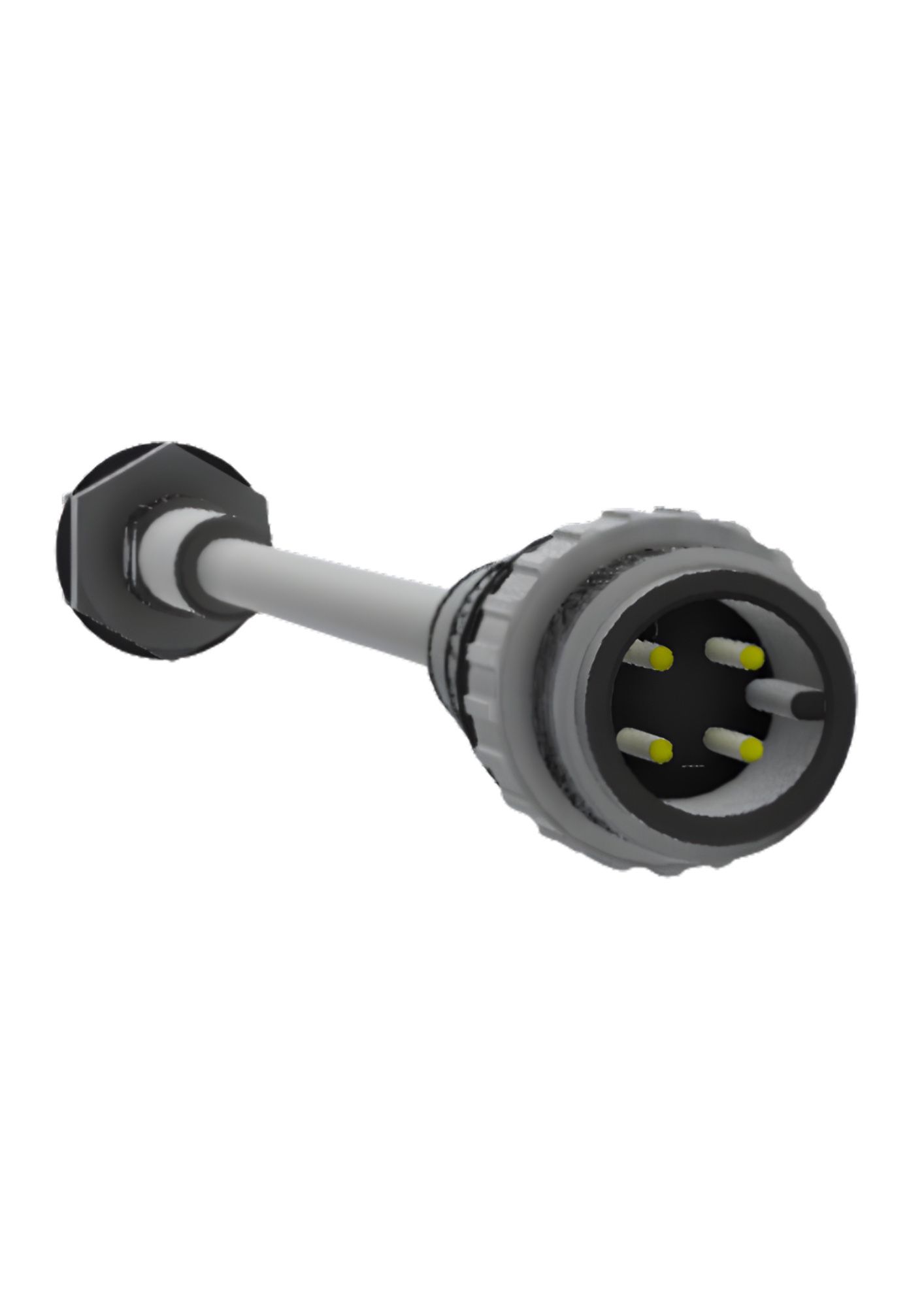

| Connector type | M12 Connector |
| Cable standard / material | Oil resistant PVC cable (dark gray) |
| Material | Case/Nut: stainless steel 303 (SUS303, PTFE coated), Washer: stainless steel 304 (SUS304), Sensing side: stainless steel 303 (SUS303, PTFE coated) |
