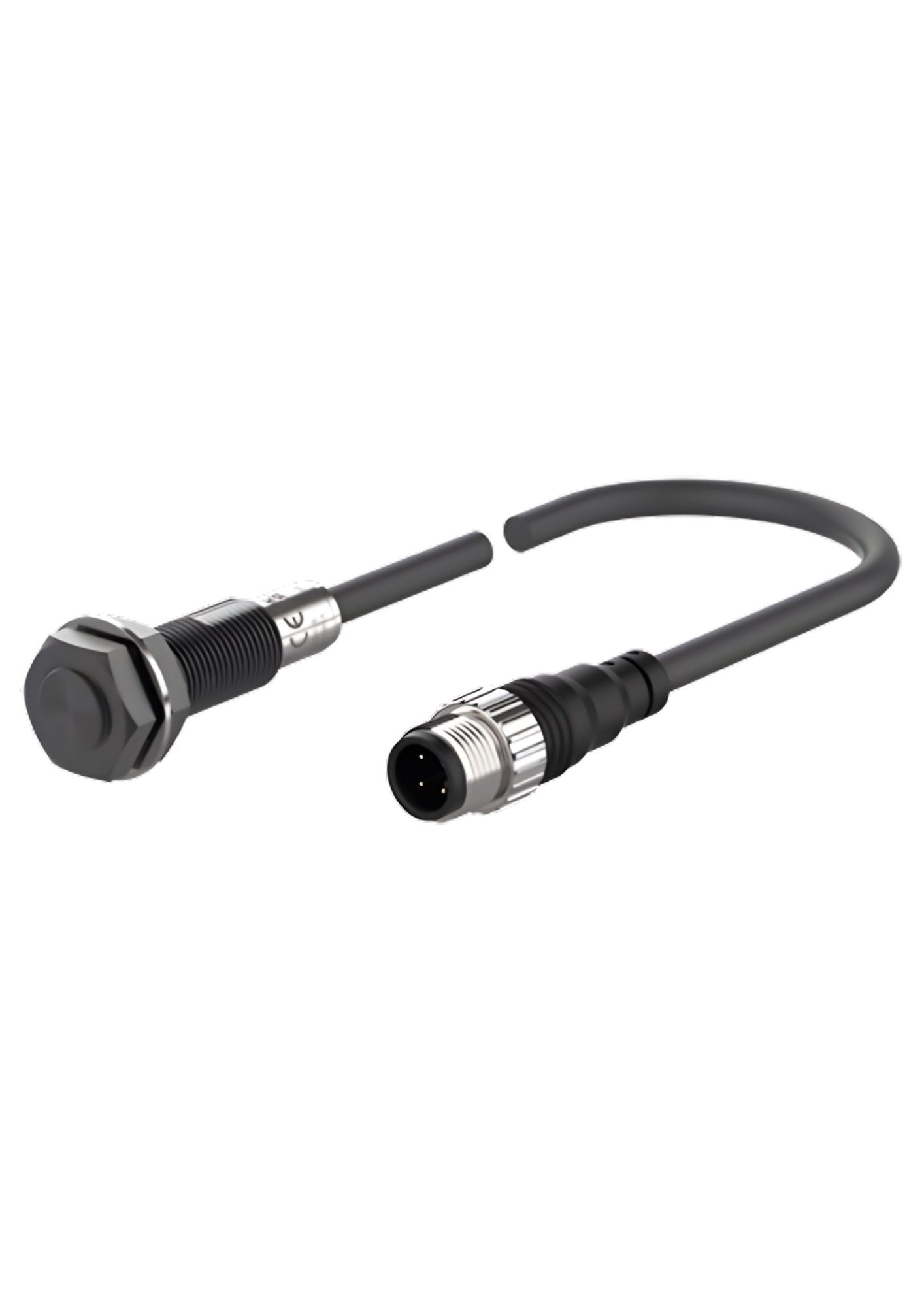

Autonics PRFDAWT12-3DO-IV, Sensing Distance 3mm, Flush Installation, Cylindrical Inductive Full-Metal Long Distance Proximity Sensor
In stock
SKU
PRFDAWT12-3DO-IV
Special Price
₹3,222.40
Regular Price
₹16,112.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Installation | Flush |
| Sensing side diameter | Ø12 mm |
| Sensing distance | 3 mm |
| Hysteresis (distance) | Max. 15% of sensing distance |
| Standard sensing target | 12 × 12 × 1 mm (iron) |
| Response frequency | 80 Hz |
| Indicator | Stability indicator (green), operation indicator (red) |
| Power voltage | 12–24 VDC (ripple P-P ≤ 10%), operating: 10–30 VDC |
| Current specification | Leakage current: Max. 0.8 mA |
| Control output | 3 to 100 mA |
| Residual voltage | Max. 3.5 V |
| Protection circuit | Surge, output short over-current, reverse polarity protection |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | 1,000 VAC~ 50/60 Hz for 1 min (charging part to case) |
| Vibration | 1.5 mm amplitude, 10–55 Hz, X/Y/Z directions, 2 h each |
| Shock | 1,000 m/s² (≈100 G), X/Y/Z directions, 10 times |
| Ambient temperature | -25 to 70 ℃, storage: -25 to 70 ℃ (no condensation) |
| Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH |
| Protection structure | IP67 (IEC standard) |
| Connection | Cable connector type |

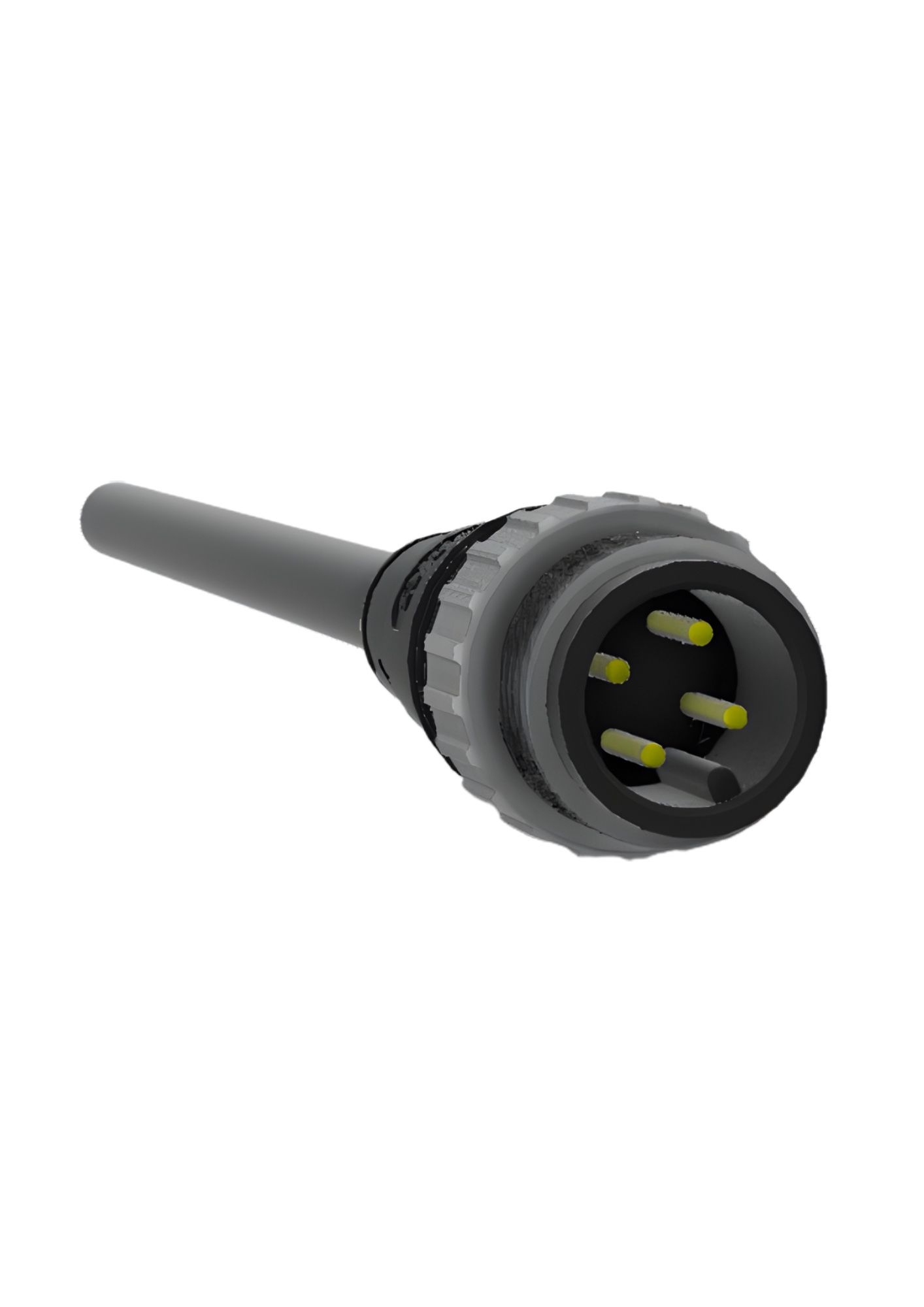

| Connector type | M12 Connector |
| Cable standard / material | Oil resistant PVC (dark gray) |
| Material | Case/Nut: SUS303 (PTFE coated), Washer: SUS304, Sensing side: SUS303 (PTFE coated) |
