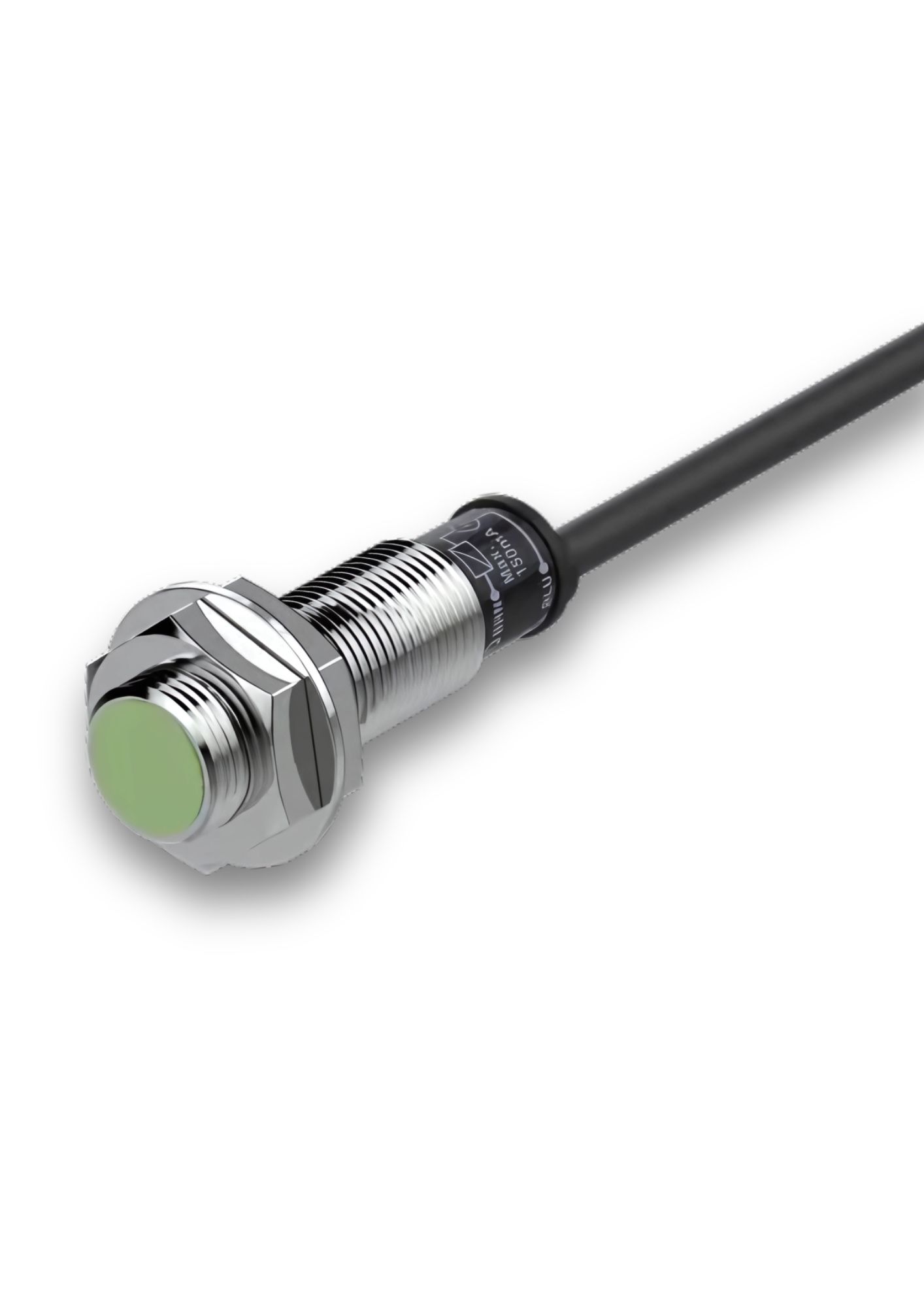

Autonics PRT12-2DO, Cylindrical Inductive Proximity Sensor, Sensing Distance 2mm, NO, 2-Wire, Flush Type
In stock
SKU
PRT12-2DO
Special Price
₹931.15
Regular Price
₹1,693.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Installation: Flush
- Sensing side diameter: Ø12mm
- Sensing distance: 2mm
- Hysteresis (distance): Max. 10% of sensing distance
- Standard sensing target: 12×12×1mm (iron)
- Response frequency: 1.5kHz
- Indicator: Operation indicator (red LED)
- Power supply: 12 - 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC
- Current specification: Leakage current: Max. 0.6mA
- Control output: 2 to 100 mA
- Residual voltage: Max. 3.5V
- Protection circuit: Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Insulation resistance: ≥ 50 MΩ (500 VDC megger)
- Dielectric strength: Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min
- Vibration: 1.0 mm amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours
- Shock: 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
- Environment - Ambient temperature: -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation)
- Environment - Ambient humidity: 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Protection structure: IP67 (IEC standard)
- Connection: Cable type
- Cable Standard/material: Standard type cable (black): polyvinyl chloride (PVC)
- Material: Case/Nut: nickel plated brass (DIA. of sensing side Ø8mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT
