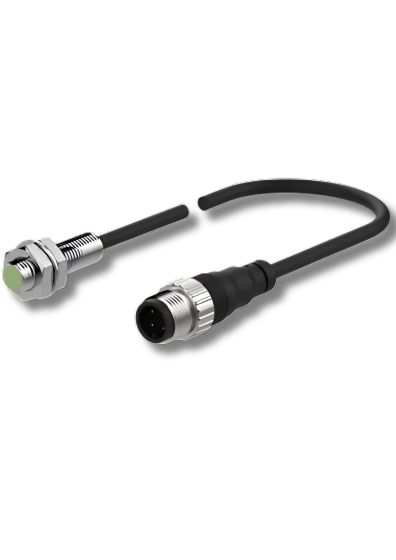

Autonics PRWT08-1.5DO, Cylindrical Inductive Proximity Sensor, Sensing distance of 1.5mm, NO, 2-Wire
In stock
SKU
PRWT08-1.5DO
Special Price
₹1,678.05
Regular Price
₹3,051.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Data sheet | |
|---|---|
| Installation | Flush |
| Sensing side diameter | Ø8mm |
| Sensing distance | 1.5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1.5kHz |
| Indicator | Operation indicator (red LED) |
| Power voltage | 12 - 24 VDCspecialstring(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDCspecialstring |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | 2 to 100 mA |
| Residual voltage | Max. 3.5V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDCspecialstring megger) |
| Dielectric strength | Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min |
| Vibration | 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP67(IEC standard) |
| Connection | Cable connector type |
| Connector type | M12 Connector |
| Cable Standard/material | Standard type cable (black): polyvinyl chloride (PVC) |
| Material | Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT |
