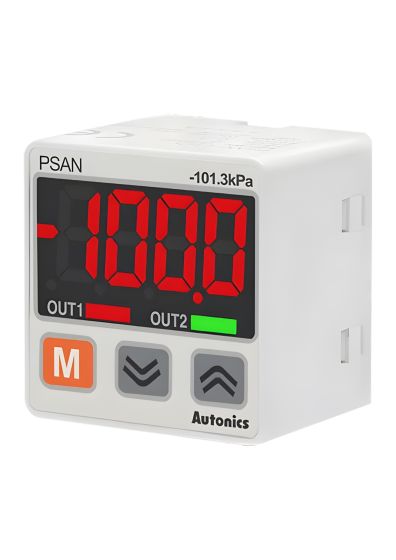

Autonics PSAN-V01CPA-RC1/8, (Pneumatic type) Air, Non-corrosive gas, Rear fitting, Digital Display Pressure Sensor
In stock
SKU
PSAN-V01CPA-RC1/8
Special Price
₹3,929.75
Regular Price
₹7,145.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure port direction | Rear fitting |
| Pressure port | Rc1/8 |
| Connection type | Connector type (connector type cable: 2m) |
| Pressure type | Negative pressure |
| Rated pressure range | 0.0 to -101.3 kPa |
| Display pressure unit | kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Control output_PNP open collector | PNP open collector |
| Option input/output | Current output (DC4-20mA) |
| Power voltage | 12-24VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Voltage output type: Max. 50mA Current output type: Max. 75mA |
| Protection structure | IP40 |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ± Min. display interval |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass |
No specifications available for this product.
