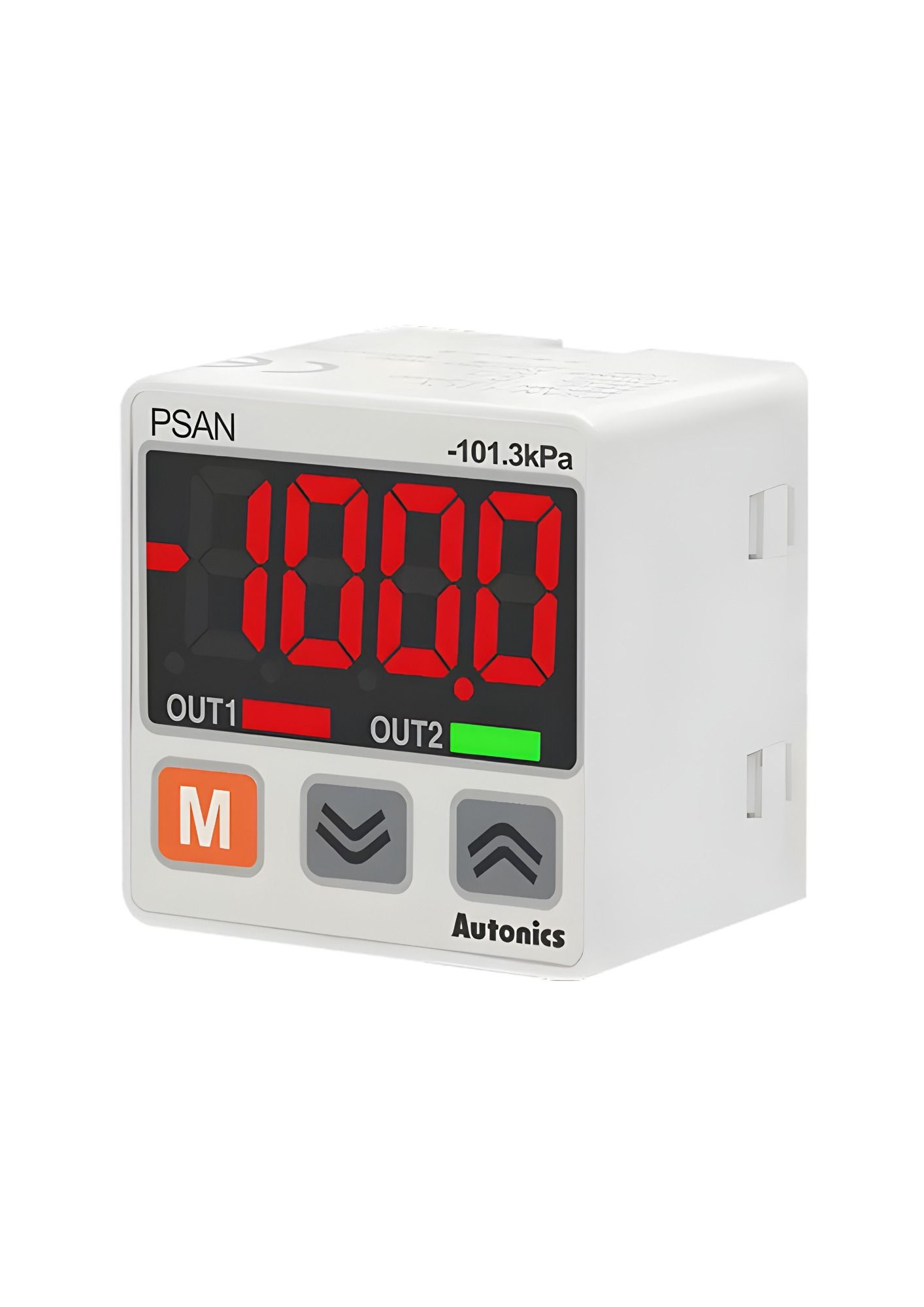

Autonics PSAN-V01CPV-RC1/8, Applicable fluid (Pneumatic type) Air & Non-corrosive gas, Rear fitting, PNP open collector, Digital Display Pressure Sensor
In stock
SKU
PSAN-V01CPV-RC1/8
Special Price
₹4,519.35
Regular Price
₹8,217.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Applicable Fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure Port Direction | Rear fitting |
| Pressure Port | Rc1/8 |
| Connection Type | Connector type (Connector cable: 2 m) |
| Pressure Type | Negative pressure |
| Rated Pressure Range | 0.0 to -101.3 kPa |
| Display Pressure Unit | kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Control Output (PNP Open Collector) | PNP open collector |
| Option Input/Output | Voltage (1–5 VDC) output |
| Power Voltage | 12–24 VDC ±10% (Ripple P-P: max. 10%) |
| Current Consumption |
Voltage output type: Max. 50 mA Current output type: Max. 75 mA |
| Protection Structure | IP40 |
| Control Output Hysteresis | Min. display interval |
| Control Output Repeat Error | ±0.2% F.S. ± Min. display interval |
| Control Output Response Time | Selectable 2.5 ms, 5 ms, 100 ms, 500 ms, 1000 ms |
| Ambient Temperature | -10 to 50 ℃ (Storage: -20 to 60 ℃) |
| Ambient Humidity | 30 to 80 %RH (Storage: 30 to 80 %RH) |
| Material | Front & Rear case: Polycarbonate; Pressure port: Nickel Plated Brass |
