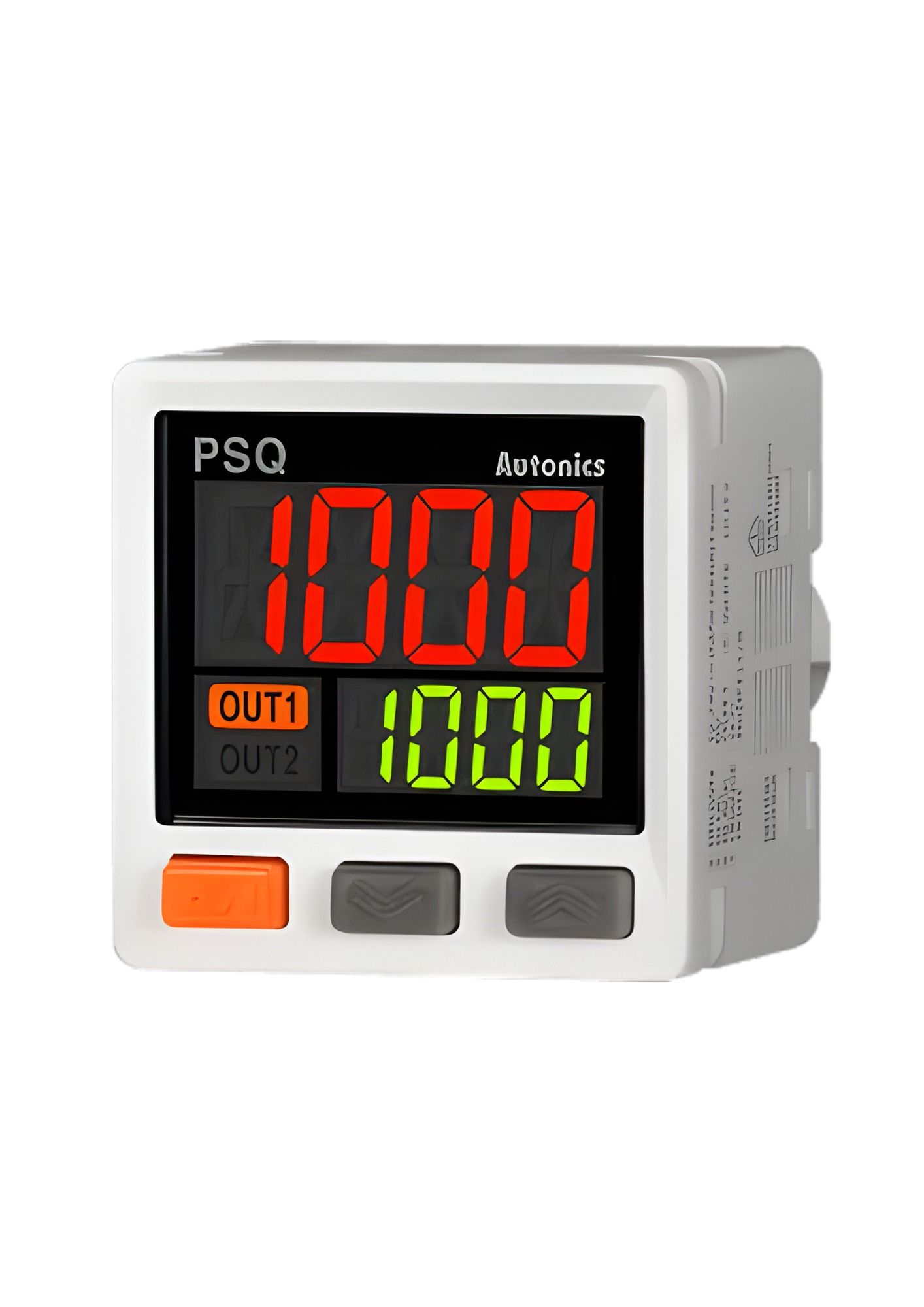

Autonics PSQ-C1C-RC1/8, Rear fitting, Applicable fluid type Air & Non-corrosive gas, Dual Digital Display Pressure Sensor
In stock
SKU
PSQ-C1C-RC1/8
Special Price
₹6,922.85
Regular Price
₹12,587.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Applicable Fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure Port Direction | Rear fitting |
| Pressure Port | Rc1/8 |
| Connection Type | Connector type (Connector cable: 2 m) |
| Pressure Type | Compound pressure |
| Rated Pressure Range | -100 to 1,000 kPa |
| Display Pressure Unit | MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Control Output |
Select one at parameter setting NPN open collector output PNP open collector output |
| Power Voltage | 12–24 VDC ±10% (Ripple P-P: max. 10%) |
| Current Consumption | Max. 50 mA |
| Protection Structure | IP40 |
| Control Output Hysteresis | Min. display interval |
| Control Output Repeat Error | ±0.2% F.S. ± Min. display interval |
| Control Output Response Time | Select one: 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms |
| Ambient Temperature | -10 to 50 ℃ (Storage: -20 to 60 ℃) |
| Ambient Humidity | 30 to 80 %RH (Storage: 30 to 80 %RH) |
| Material |
Front case: Polycarbonate Rear case: Polybutylene terephthalate + glass 15% Pressure port: Stainless steel 303 |
