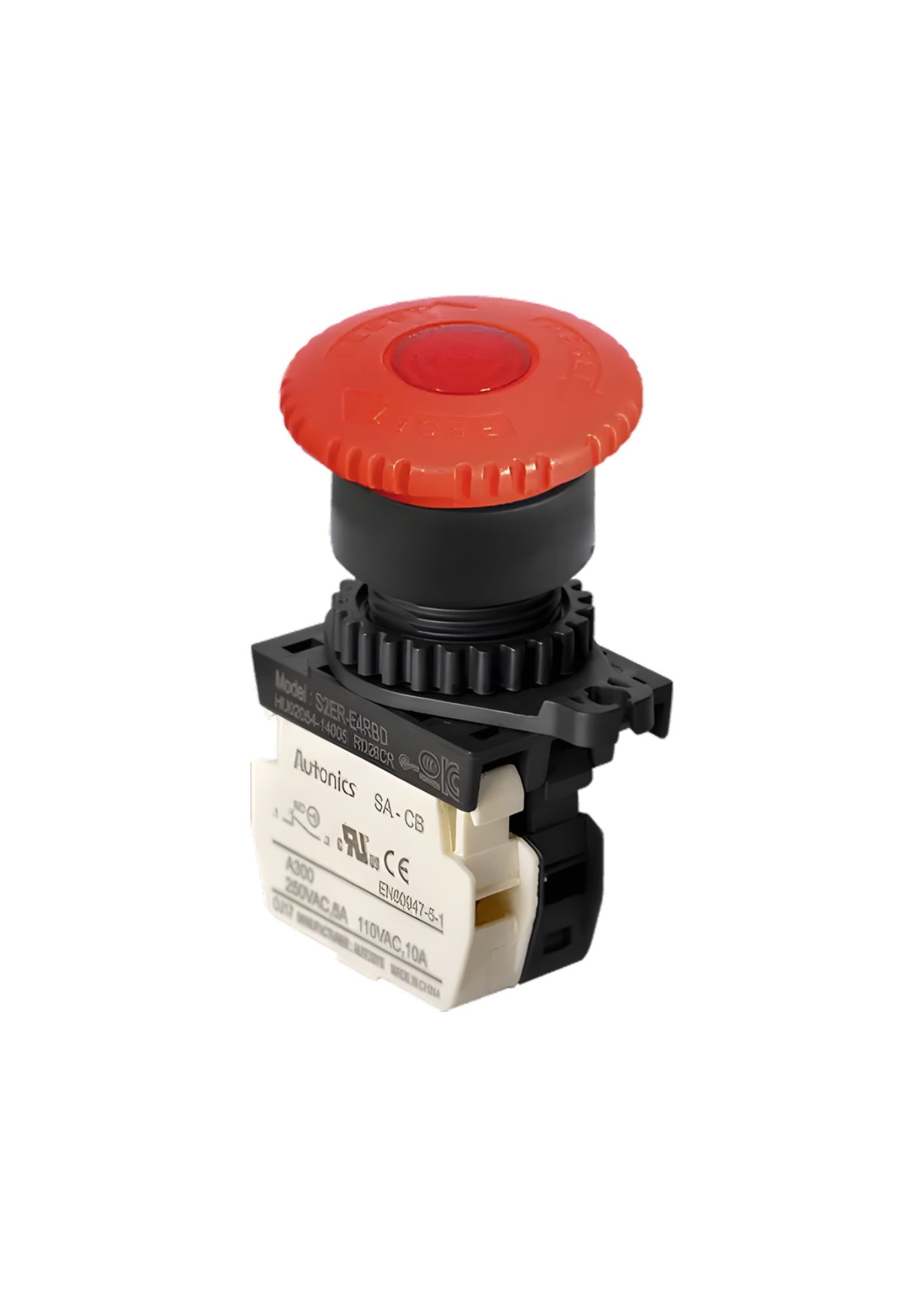

Autonics S2ER-E4RBD, Push-lock & Turn-reset type, D40(short head, illuminated), Red, Emergency Switch
In stock
SKU
S2ER-E4RBD
Special Price
₹384.45
Regular Price
₹699.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC specialstring |
| LED block_Current consumption | Max. 20mA |
| Protection structure | IP52 |
| Weight_Mounting hole_Ø22/25 | Approx. 22.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Operation type | Push-lock, Turn-reset |
| Button type | D40(short head, illuminated) |
| Color | Red |
| Contact block | B contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
