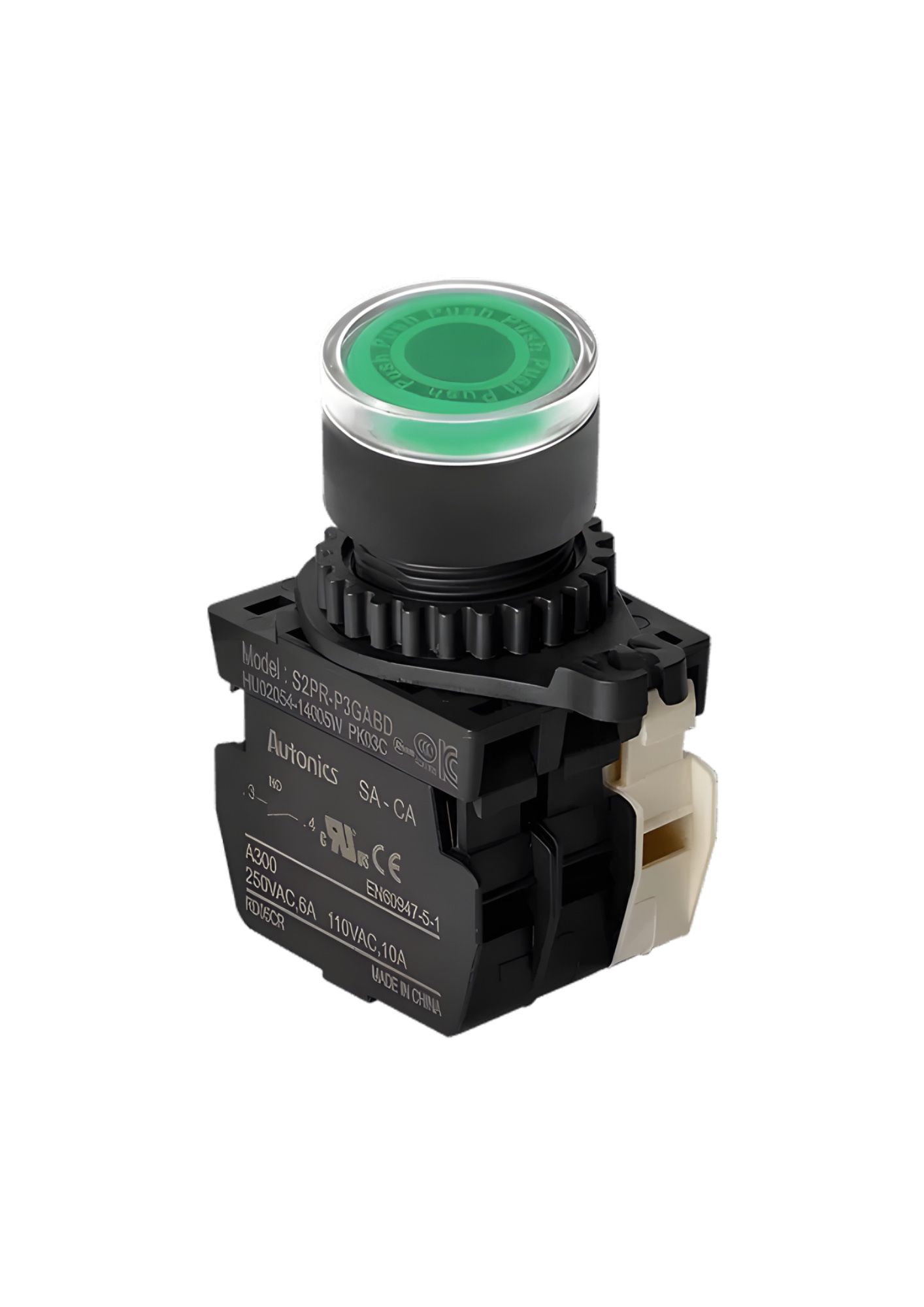

Autonics S2PR-P3GABD, Illuminated, Green, Push Button
In stock
SKU
S2PR-P3GABD
Special Price
₹435.05
Regular Price
₹791.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Contact Block - Electrical Specification | Power voltage/current: 110VAC~/10A, 250VAC~/6A |
| LED Block - Power Supply | 12-24VAC~ 50/60Hz, 12-24VDC |
| LED Block - Current Consumption | Max. 20mA |
| Protection Structure | IP52 (IP65 protection structure with waterproof cap for Ø22/25 round push button switches) |
| Weight - Mounting Hole Ø22/25 | Approx. 14.5g |
| Weight - Housing | Approx. 7g |
| Weight - Contact Block | Singular type A/B contact: Approx. 11g |
| Weight - LED Block | AC/DC voltage type: Approx. 11g |
| Illuminated | Illuminated |
| Letter Marking | Marking (Push) |
| Button Type | Extended (Illuminated) |
| Color | Green |
| Contact Block | A contact: 1, B contact: 1 |
| Contact Block Type | Singular type |
| Environment - Ambient Temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment - Ambient Humidity | 35 to 85% RH, storage: 35 to 85% RH |
