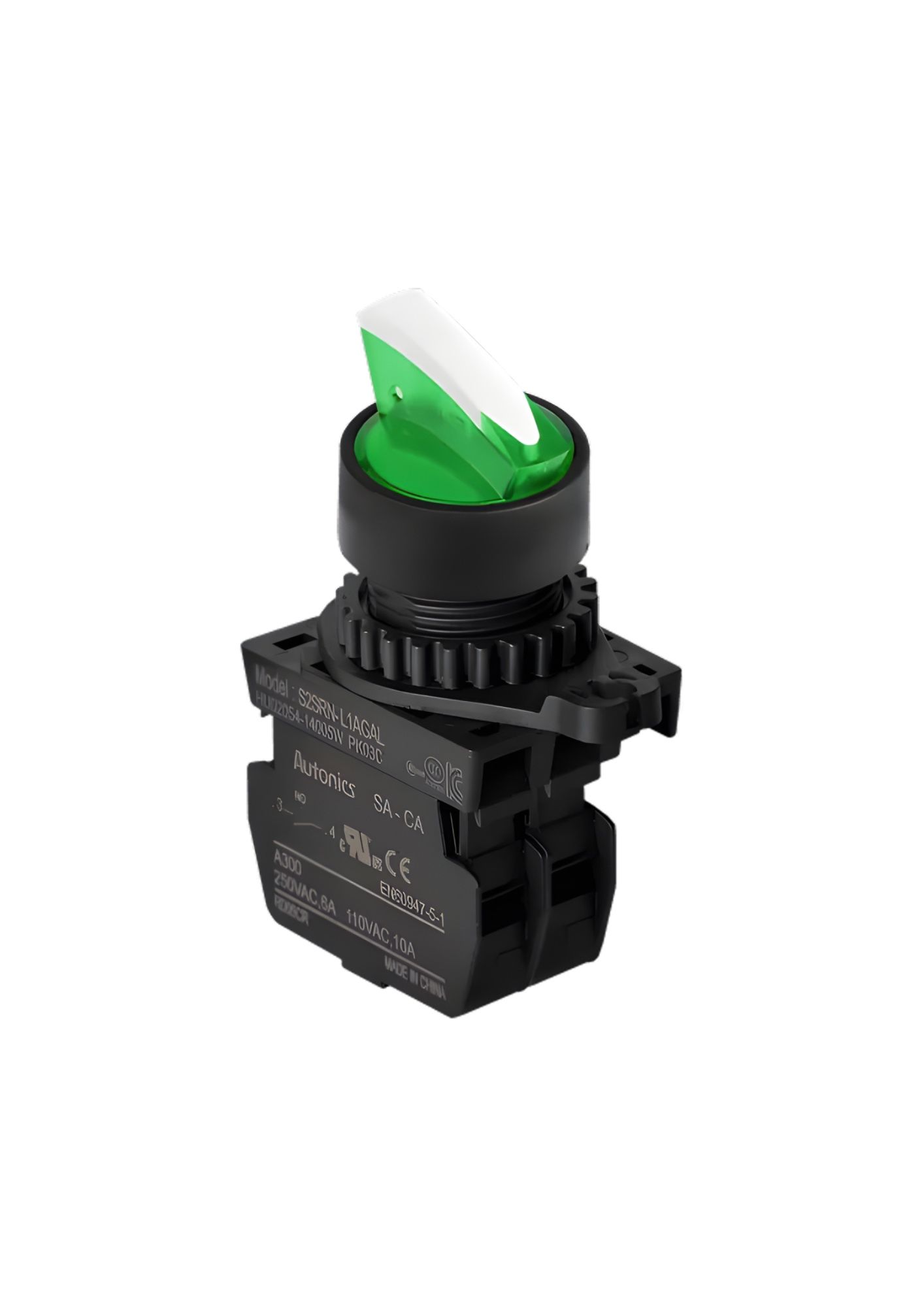

Autonics S2SRN-L3BGAL, Short lever 2-position, Maintained operation type, Green, Selector Switch
In stock
SKU
S2SRN-L3BGAL
Special Price
₹407.55
Regular Price
₹741.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Mechanical Characteristics | Operation angle – Left 45°, Right 45° |
| Electrical Specification | 110VAC~/10A, 250VAC~/6A |
| LED Block Power Supply | 110–220VAC~ 50/60Hz |
| LED Block Current Consumption | Max. 20mA |
| Protection Structure | IP52 |
| Weight (Mounting Hole Ø22/25) | Approx. 16g |
| Weight (Housing) | Approx. 7g |
| Weight (Contact Block) | Approx. 11g |
| Weight (LED Block) | Approx. 12g |
| Operation Type | Short lever 2-position, maintained |
| Color | Green |
| Contact Block | A contact: 1 |
| Contact Block Type | Singular type |
| Ambient Temperature | -15 to 55°C (storage: -25 to 65°C) |
| Ambient Humidity | 35 to 85% RH (storage: 35 to 85% RH) |
