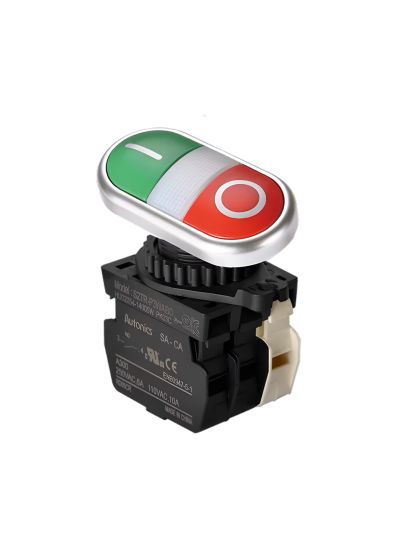

Autonics S2TR-P3WABD, LED block Current consumption Max. 20mA, (Illuminated) Extended, Double Push Button Switch
In stock
SKU
S2TR-P3WABD
Special Price
₹576.95
Regular Price
₹1,049.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC specialstring |
| LED block_Current consumption | Max. 20mA |
| Weight_Mounting hole_Ø22/25 | Approx. 14.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Button type | [Illuminated] Extended |
| Contact block | A contact: 1, B contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50 |
