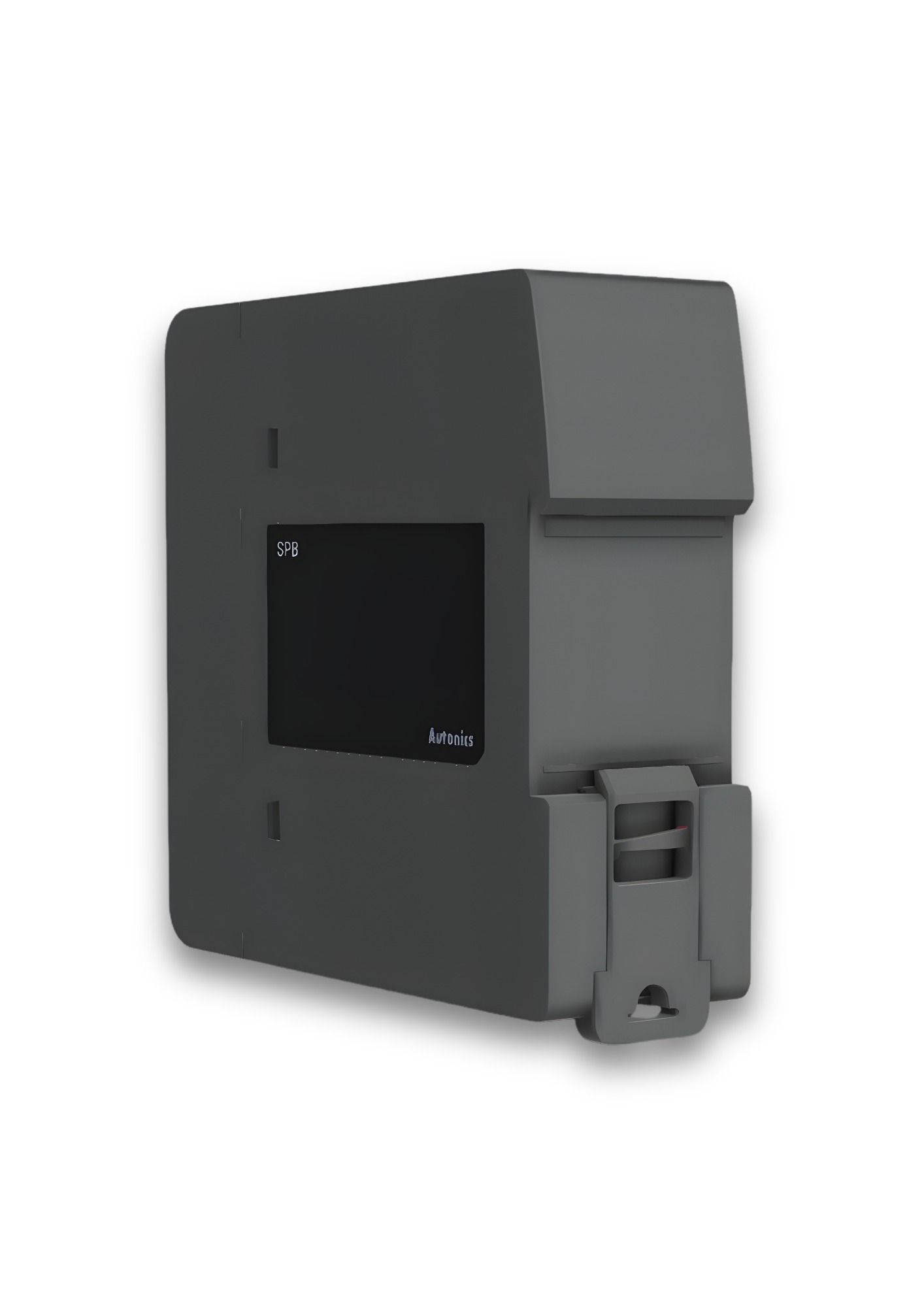

Autonics SPB-A030-24, Output indicator (green), output low voltage indicator (red), 100 - 240 VAC~/ 90 - 350 VDC, DIN Rail Switching Mode Power Supplies
In stock
SKU
SPB-A030-24
Special Price
₹2,301.20
Regular Price
₹4,184.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Indicator | Output indicator (Green), Output low voltage indicator (Red) |
| Protection | Over-current protection, Over-voltage protection, Output short-circuit protection, Overheat protection |
| Insulation Resistance | ≥ 100 MΩ (500 VDC megger) among all input terminals, all output terminals and PE |
| Dielectric Strength |
Input ↔ Output: 3 kVAC, Cutoff current = 20 mA Input ↔ PE: 2 kVAC, Cutoff current = 20 mA Output ↔ PE: 1 kVAC, Cutoff current = 20 mA |
| Vibration | 0.75 mm amplitude, 10–55 Hz, X/Y/Z directions, 2 hours each |
| Shock | 150 m/s² (≈15 G), X/Y/Z directions, 3 times each |
| EMS | Conforms to EN61000-6-2 |
| EMI | Conforms to EN61000-6-4 |
| Ambient Temperature | -20 to 70 ℃ (Storage: -25 to 80 ℃, no freezing or condensation) |
| Ambient Humidity | 20 to 90 %RH (Storage: 20 to 90 %RH, no freezing or condensation) |
| Life Expectancy | 10 years |
| Protection Structure | IP20 (IEC standard) |
| Input Voltage | 100–240 VAC / 90–350 VDC (Allowable: 85–264 VAC) |
| Input Current (115 VAC) | 0.58 A |
| Input Current (230 VAC) | 0.36 A |
| Input Frequency | 50/60 Hz |
| Efficiency (115 VAC) | 0.82 |
| Efficiency (230 VAC) | 0.82 |
| Power Factor (115 VAC) | 0.53 |
| Power Factor (230 VAC) | 0.43 |
| Output Voltage | 24 VDC |
| Output Current | 1.3 A |
| Output Power | 31.2 W |
| Input Fluctuation Ratio | Max. ±0.5% |
| Load Fluctuation Ratio | ≤ 1.5% |
| Temperature Variation | ≤ 0.05% / ℃ |
