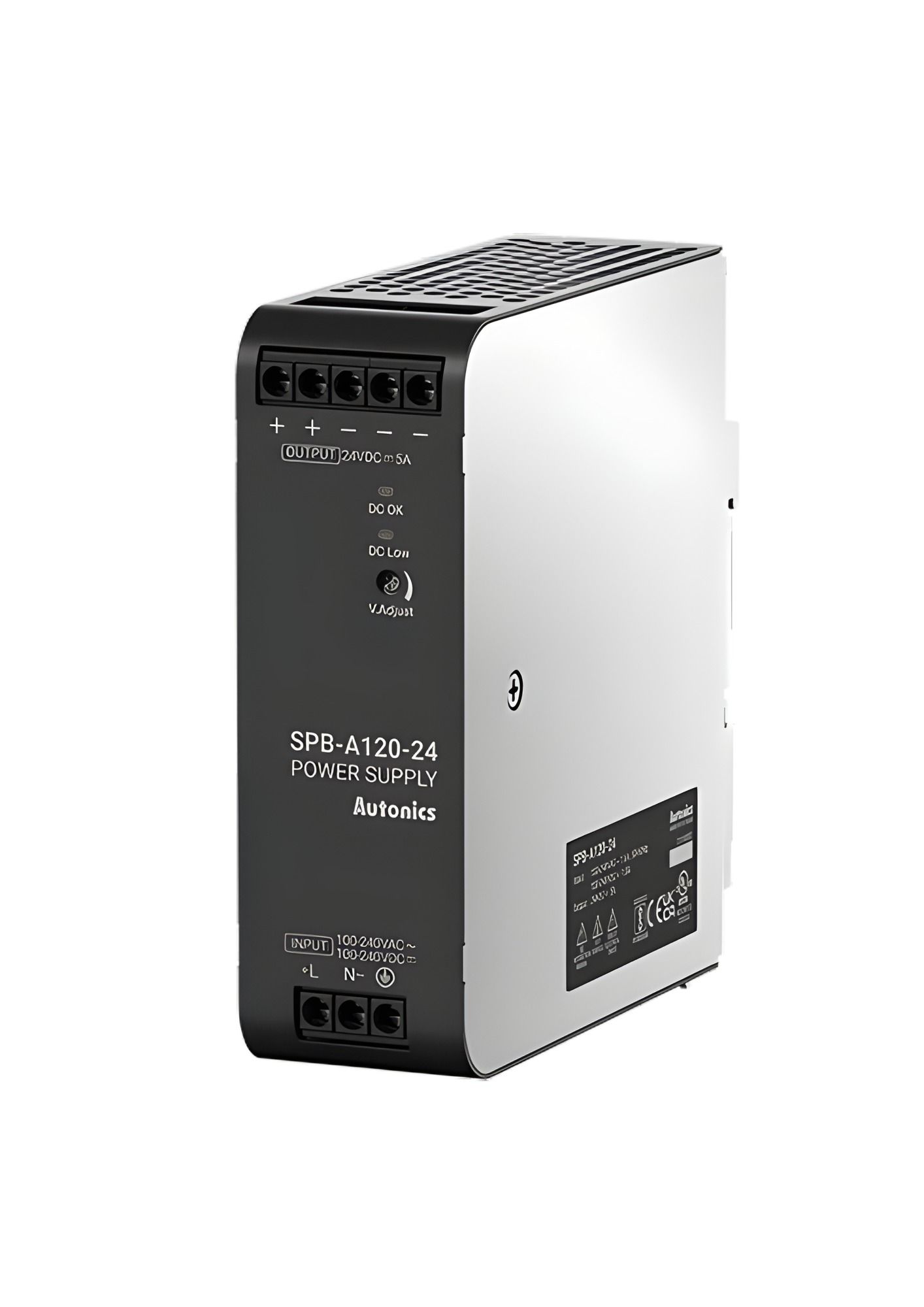

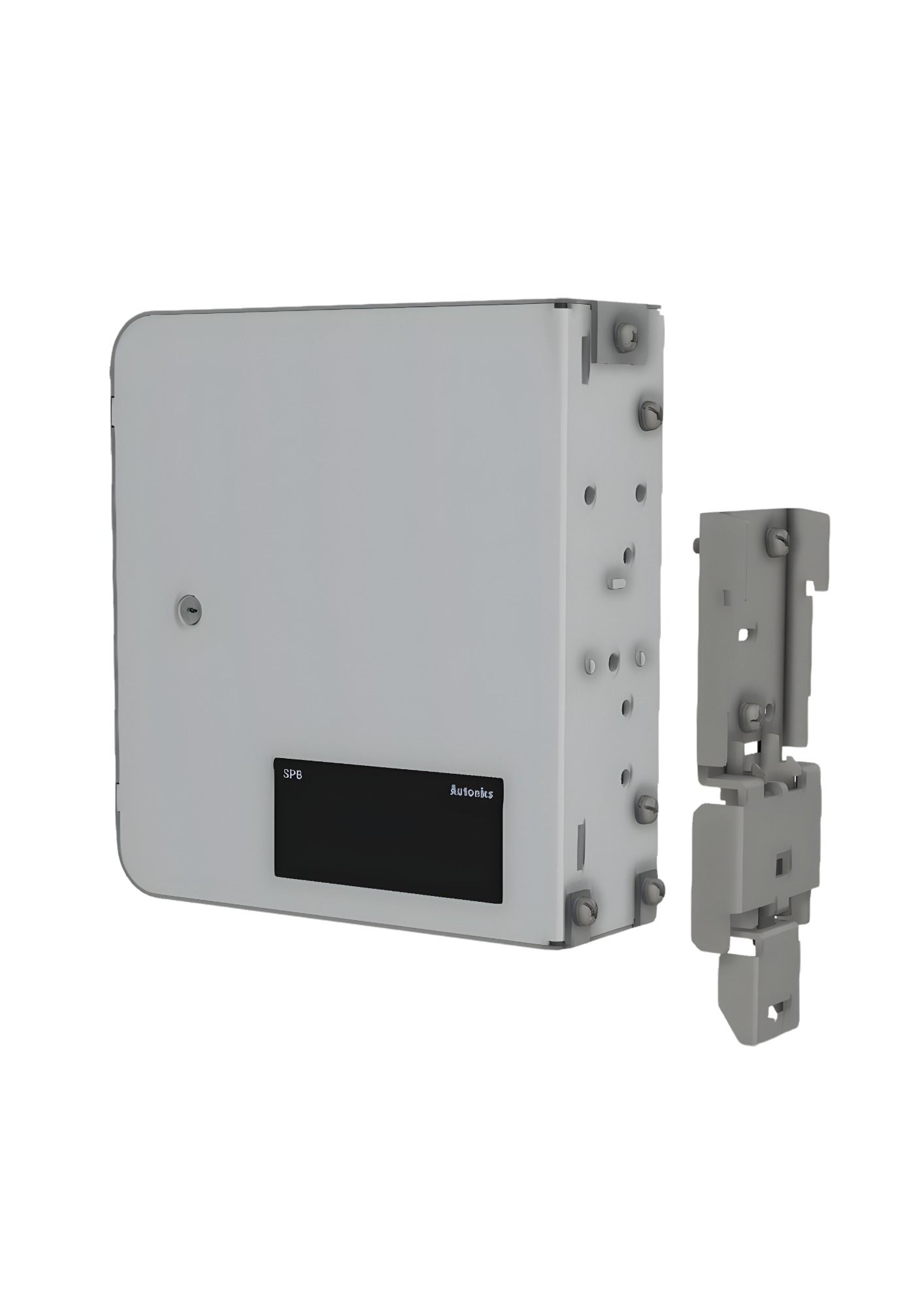

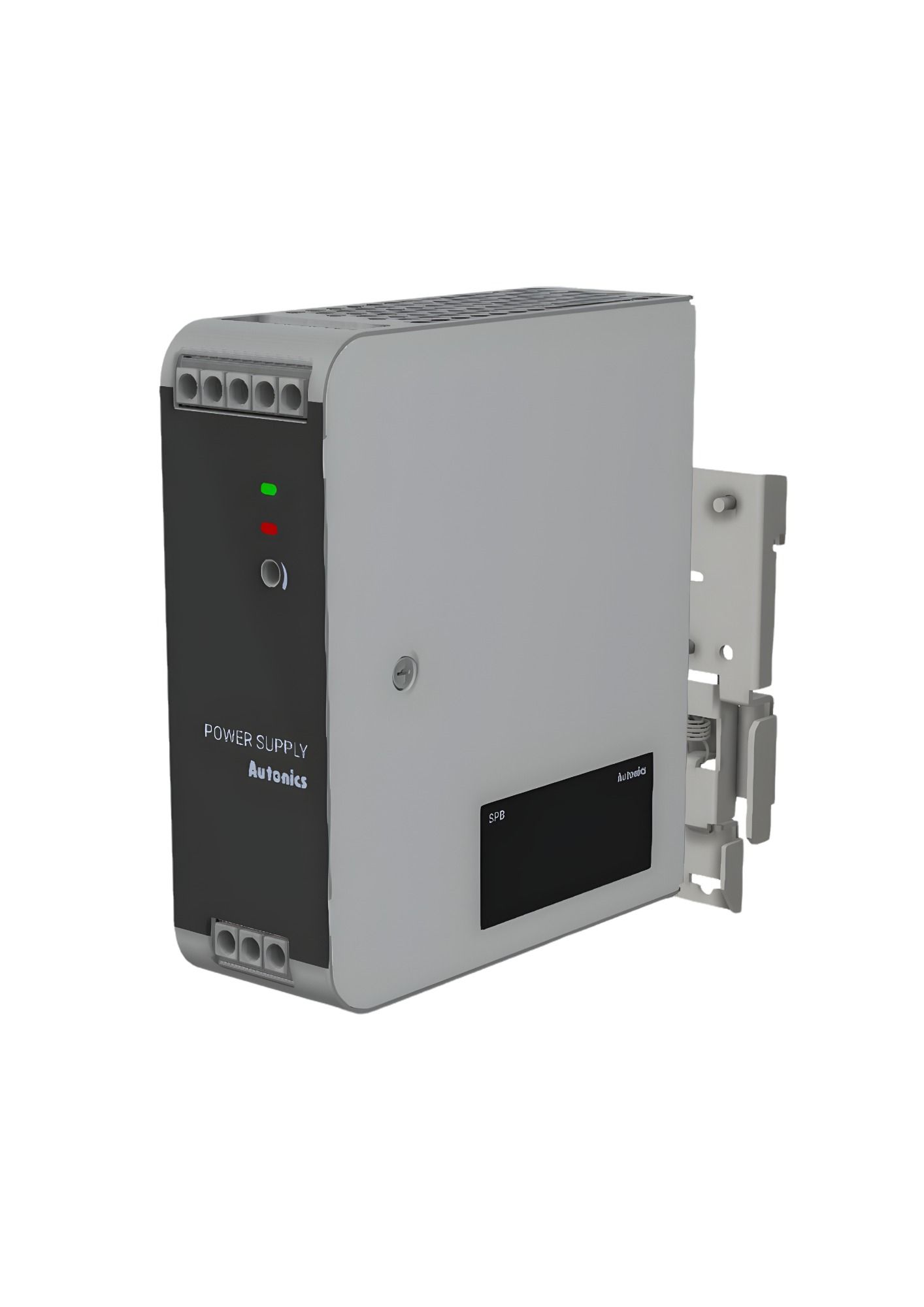

Autonics SPB-A120-24, Input Voltage 100-240VAC~/ 90-350VDC, Output Voltage 24VDC, Output Current 5A, DIN Rail Switching Mode Power Supply
In stock
SKU
SPB-A120-24
Special Price
₹4,752.55
Regular Price
₹8,641.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Indicator | Output indicator (Green), Output low voltage indicator (Red) |
| Protection | Over-current protection, Over-voltage protection, Output short-circuit protection, Overheat protection |
| Insulation Resistance | ≥ 100 MΩ (500 VDC megger) among input, output and PE |
| Dielectric Strength |
Input ↔ Output: 3 kVAC, 20 mA cutoff Input ↔ PE: 2 kVAC, 20 mA cutoff Output ↔ PE: 1 kVAC, 20 mA cutoff |
| Vibration | 0.75 mm amplitude, 10–55 Hz, X/Y/Z directions, 2 hours each |
| Shock | 150 m/s² (≈15 G), X/Y/Z directions, 3 times each |
| EMS | EN61000-6-2 |
| EMI | EN61000-6-4 |
| Ambient Temperature | -20 to 70 ℃ (Storage: -25 to 80 ℃) |
| Ambient Humidity | 20 to 90 %RH (Storage: 20 to 90 %RH) |
| Life Expectancy | 10 years |
| Protection Structure | IP20 (IEC standard) |
| Input Voltage | 100–240 VAC / 90–350 VDC (Allowable: 85–264 VAC) |
| Input Current (115 VAC) | 1.3 A |
| Input Current (230 VAC) | 0.7 A |
| Input Frequency | 50/60 Hz |
| Efficiency (115 VAC) | 0.86 |
| Efficiency (230 VAC) | 0.89 |
| Power Factor (115 VAC) | 0.99 |
| Power Factor (230 VAC) | 0.91 |
| Output Voltage | 24 VDC |
| Output Current | 5 A |
| Output Power | 120 W |
| Input Fluctuation Ratio | Max. ±0.5% |
| Load Fluctuation Ratio | ≤ 1.5% |
| Temperature Variation | ≤ 0.05% / ℃ |
