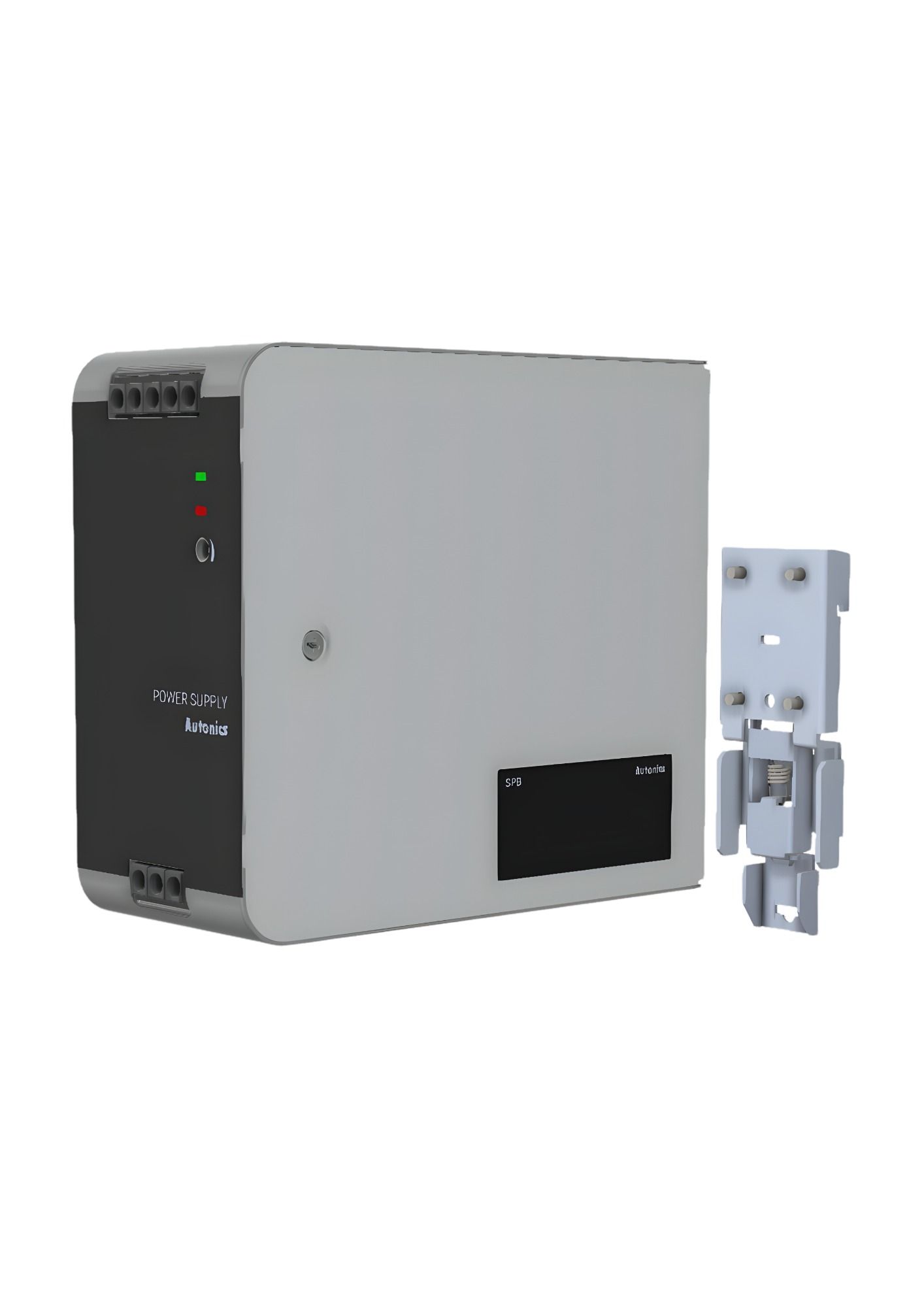

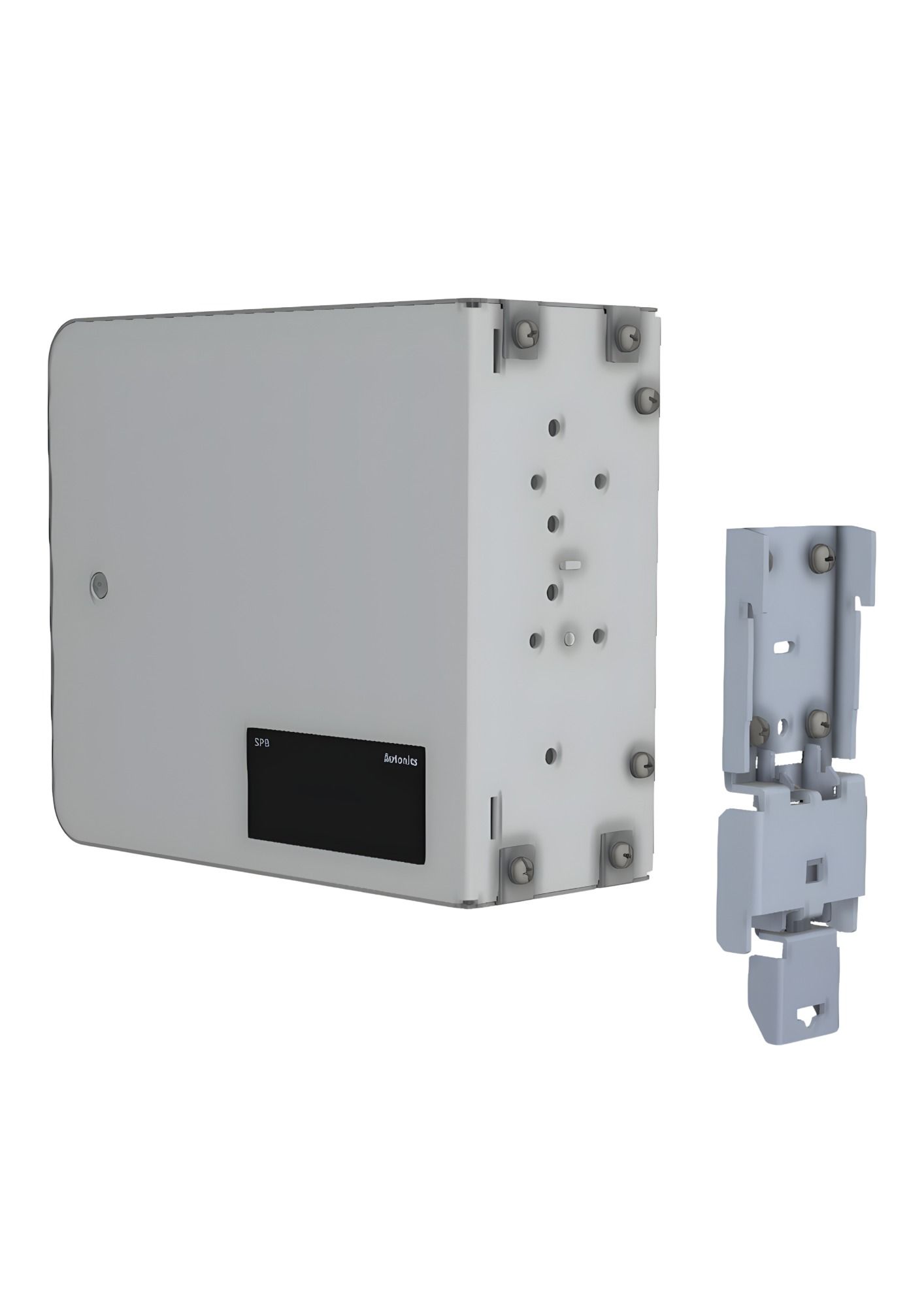

Autonics SPB-A240-24, Input Voltage 100-240VAC~/ 90-350 VDC, Output Voltage 24VDC, Output Current 10A, DIN Rail Switching Mode Power Supplies
In stock
SKU
SPB-A240-24
Special Price
₹8,092.15
Regular Price
₹14,713.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Indicator | Output indicator (Green), Output low voltage indicator (Red) |
| Protection | Over-current protection, Over-voltage protection, Output short-circuit protection, Overheat protection |
| Insulation Resistance | ≥ 100 MΩ (500 VDC megger) among all input terminals, all output terminals and PE |
| Dielectric Strength |
Input to Output: 3 kVAC~ (Cutoff current = 20 mA) Input to PE: 2 kVAC~ (Cutoff current = 20 mA) Output to PE: 1 kVAC~ (Cutoff current = 20 mA) |
| Vibration | 0.75 mm amplitude at 10–55 Hz in X, Y, Z directions for 2 hours |
| Shock | 150 m/s² (≈ 15 G) in X, Y, Z directions, 3 times |
| EMS | Conforms to EN61000-6-2 |
| EMI | Conforms to EN61000-6-4 |
| Ambient Temperature | -20 to 70 ℃ (Storage: -25 to 80 ℃, no freezing or condensation) |
| Ambient Humidity | 20 to 90 %RH (Storage: 20 to 90 %RH, no freezing or condensation) |
| Life Expectancy | 10 years |
| Protection Structure | IP20 (IEC standard) |
| Input Voltage | 100–240 VAC / 90–350 VDC (Allowable voltage: 85–264 VAC) |
| Input Current (115 VAC) | 2.5 A |
| Input Current (230 VAC) | 1.3 A |
| Input Frequency | 50/60 Hz |
| Input Efficiency (115 VAC) | 0.89 |
| Input Efficiency (230 VAC) | 0.92 |
| Input Power Factor (115 VAC) | 0.99 |
| Input Power Factor (230 VAC) | 0.9 |
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| Output Power | 240 W |
| Output Input Fluctuation Ratio | Max. ±0.5% |
| Output Load Fluctuation Ratio | ≤ 1.5 % |
| Output Temperature Variation | ≤ 0.05 % / ℃ |
