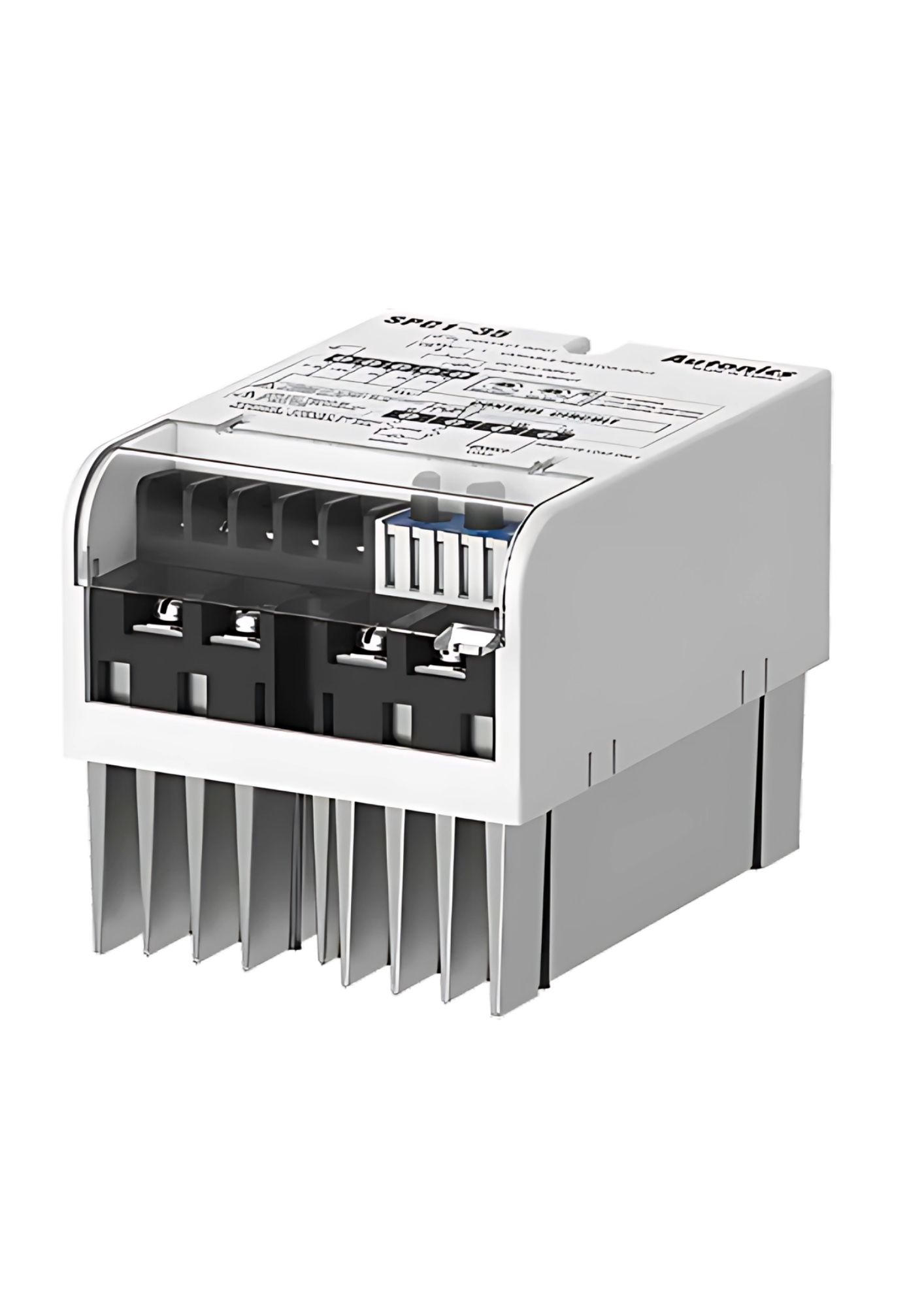

Autonics SPC1-35-E, Single Phase Power Controller
In stock
SKU
SPC1-35-E
Special Price
₹3,994.65
Regular Price
₹7,263.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Control phase: Single-phase
- Control method: Phase control, Cycle control (zero cross turn-on)-Control period: 0.5 sec, 2 sec, 10 sec, ON/OFF control (zero cross turn-on)
- Power supply:220VAC~ 50/60Hz
- Applied load: Resistance load(min. load: over 5% of rated current)
- Rated load voltage: 220VAC~
- Rated load current:35A
- Control input: DC4-20mA, 1-5VDC, External 24VDC, External adjuster (1kΩ), External contact(ON/OFF)
- Function: Output limit (0 to 100%), Soft Start (0 to 50 sec), Output display, 50/60Hz automAtic recognition
- Ambient temperature: 0~50℃
- Cooling method: Natural cooling
- Control circuit: Micom control type
- Environment_Ambient temperature: 0 to 50℃, storage: -25 to 65℃
- Environment_Ambient humidity: 35 to 85%RH
- Weight: Approx. 1kg
No specifications available for this product.
