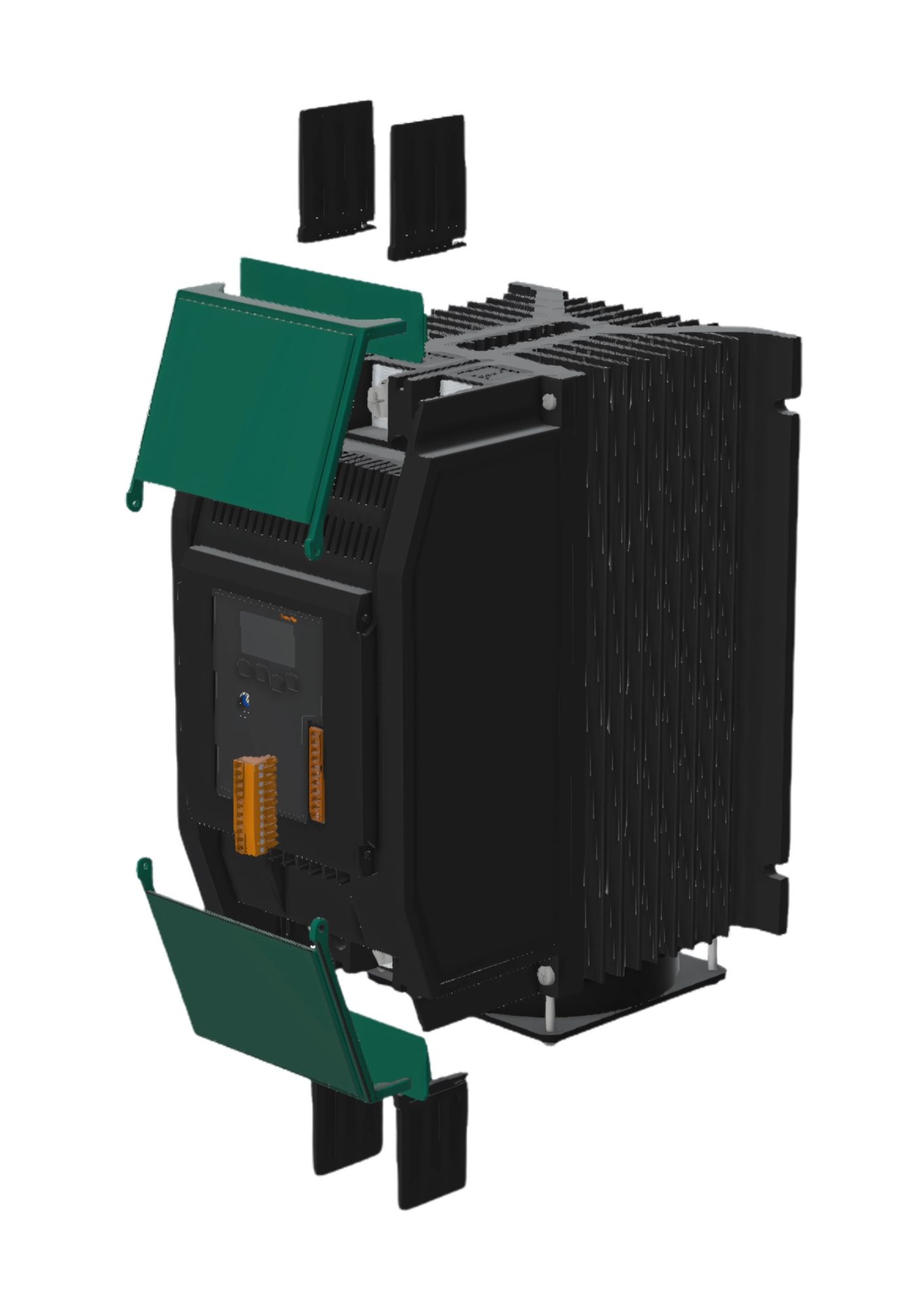

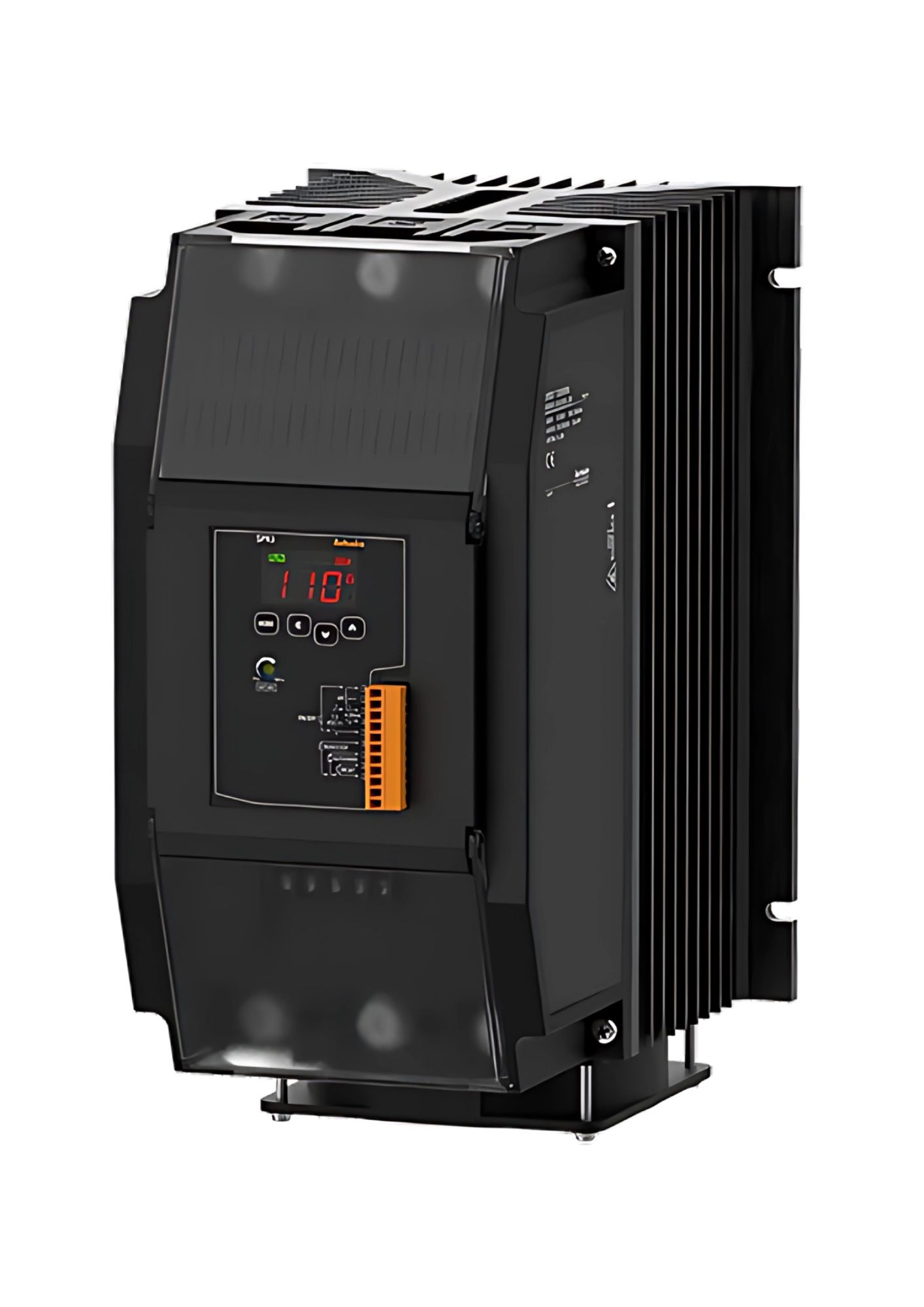

Autonics SPR3-4100NFF, Slim Three Phase Power Controller
In stock
SKU
SPR3-4100NFF
Special Price
₹50,922.30
Regular Price
₹92,586.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Control phase: 3-phase
- Rated load voltage: 440VAC~
- Rated load current: 100A
- Control input: • Auto control: DC4-20mA, 1-5VDC, ON/OFF contact (no-voltage input), pulse voltage (5-12VDC) • Manual control: outside adjuster (10kΩ), inside adjuster (output limit)
- Power supply: • 100-240VAC~ 50/60Hz
- Min. load current: 1A
- Allowable voltage range: 90 to 110% of rated voltage
- Power consumption: Max. 32VA
- Display method: 3-digit 7-segment LED
- Indicator: • Operation indicator/Manual control indicator: green LED • Alarm indicator/output indicator/unit (V, A) indicator: red LED
- Control method: • Phase control: normal control mode • Cycle control: fixed cycle control mode, variable cycle control mode • ON/OFF control
- Applied load: • Phase control, ON/OFF control: resistance load, inductive load • Cycle control: resistance load
- Digital inputs: RUN/STOP switching, AUTO/MANU switching, RESET
- Output_Alarm: 250VAC~ 3A, 30VDC 3A, 1c resistive load
- Output range: Phase control: 0 to 98%, Cycle control: 0 to 100%, ON/OFF control: 0 to 100%
- Output accuracy: • Normal control: within ±10% F.S. of rated load voltage • Constant current feedback control: within ±3% F.S. of rated load current • Constant voltage feedback control: within ±3% F.S. of rated load voltage • Constant power feedback control: within ±3% F.S. of rated load power
- Setting type: By front keys, by communication
- Function: Output limit (OUT ADJ), AUTO/MAN selection, control method selection, RESET, SOFT START, SOFT UP/DOWN, output high/low limit, input correction, input slope correction, monitoring (control input, load voltage/current/power/resistance, power supply frequency
- Function Alarm: Overcurrent alarm, overvoltage alarm, fuse break alarm, SCR error alarm, heater break alarm, heatsink overheat alarm
- Cooling method: Forced air cooling (with the cooling fan)
- Insulation resistance: ≥ 200 MΩ (500 VDC megger)
- Dielectric strength: 2,000VAC~ 50/60Hz for 1 min (between input terminals and power terminals)
- Output leakage current: ≤ 10 mArms
- Noise immunity: ±2kV the square wave noise (pulse width: 1㎲) by the noise simulator
- Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
- Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
- Vibration_Malfunction: 0.5mm amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 10 min
- Environment_Ambient temperature: -10 to 55℃, storage: -20 to 80℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Accessories: 11-pin connector, isolating barrier: 4
- Weight: Approx. 9.7kg(approx. 8.7kg)
