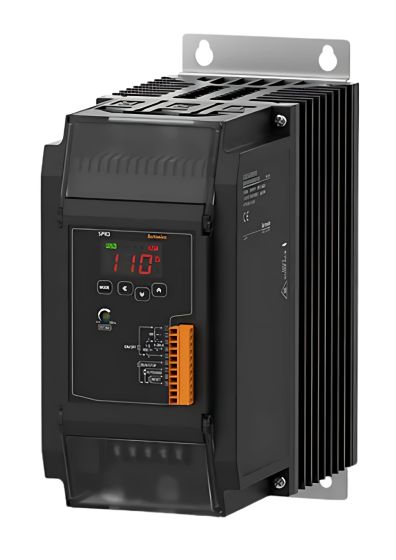

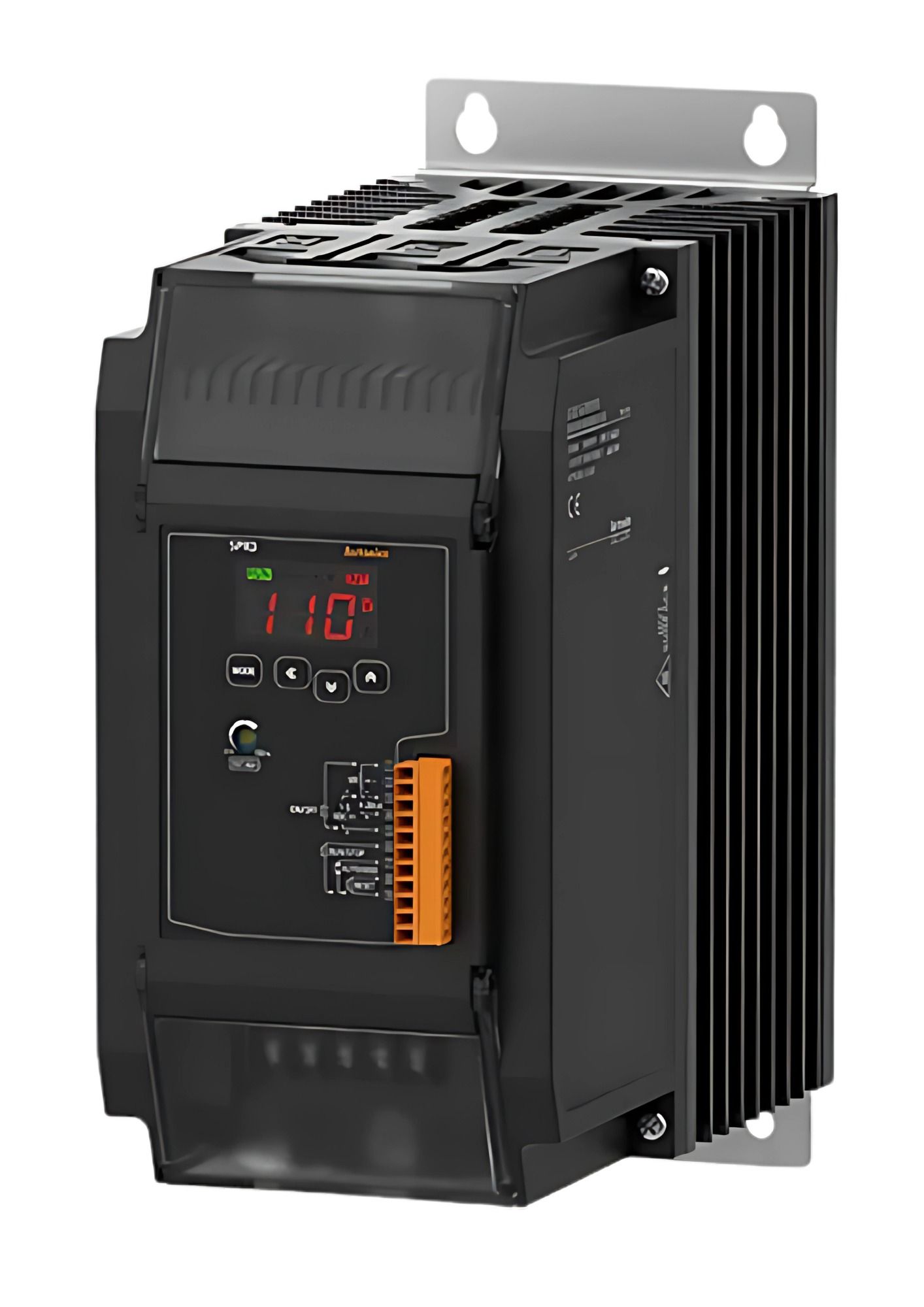

Autonics SPR3-4100TFF, 3-Phase Slim Power Controller
Autonics SPR3-4100TFF, 3-Phase Slim Power Controller Autonics SPR3-4100TFF, 3-Phase Slim Power Controller

Autonics SPR3-4100TFF, 3-Phase Slim Power Controller

In stock
SKU
SPR3-4100TFF
Special Price ₹52,412.80 Regular Price ₹95,296.00
(18% GST Extra)
Add to Wish List
  • Control phase: 3-phase
  • Rated load voltage: 440VAC~
  • Rated load current: 100A
  • Control input: ᆞAuto control: DC4-20mA, 1-5VDC specialstring, ON/OFF contact (no-voltage input), pulse voltage (5-12VDC specialstring) ᆞManual control: outside adjuster (10kΩ), inside adjuster (output limit)
  • Power supply: 100-240VAC~ 50/60Hz
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Control phase: 3-phase
  • Rated load voltage: 440VAC~
  • Rated load current: 100A
  • Control input: ᆞAuto control: DC4-20mA, 1-5VDC specialstring, ON/OFF contact (no-voltage input), pulse voltage (5-12VDC specialstring) ᆞManual control: outside adjuster (10kΩ), inside adjuster (output limit)
  • Power supply: 100-240VAC~ 50/60Hz
  • Min. load current: 1A
  • Allowable voltage range: 90 to 110% of rated voltage
  • Power consumption: Max. 32VA
  • Display method: 3-digit 7-segment LED
  • Indicator: ᆞOperation indicator/Manual control indicator: green LED ᆞAlarm indicator/output indicator/unit (V, A) indicator: red LED
  • Control method: ᆞPhase control: normal control mode, constant current/constant voltage/constant power feedback control mode ᆞCycle control: fixed cycle control mode ᆞON/OFF control
  • Applied load: ᆞPhase control, ON/OFF control: resistance load, inductive load ᆞCycle control: resistance load
  • Digital inputs: RUN/STOP switching, AUTO/MANU switching, RESET
  • Output_Alarm: 250VAC~ 3A, 30VDC specialstring 3A, 1c resistive load
  • Output_Communication: RS485 communication output (Modbus RTU method), max. connection: 31 units
  • Output range: Phase control: 0 to 98%, Cycle control: 0 to 100%, ON/OFF control: 0 to 100%
  • Output accuracy: ᆞNormal control: within ±10% F.S. of rated load voltage ᆞConstant current feedback control: within ±3% F.S. of rated load current ᆞConstant voltage feedback control: within ±3% F.S. of rated load voltage ᆞConstant power feedback control: within ±3% F.S. of rated load power
  • Setting type: By front keys, by communication
  • Function: Output limit (OUT ADJ), AUTO/MAN selection, control method selection, RESET, SOFT START, SOFT UP/DOWN, output high/low limit, input correction, input slope correction, monitoring (control input, load voltage/current/power/resistance, power supply frequency)
  • Function_Alarm: Overcurrent alarm, overvoltage alarm, fuse break alarm, SCR error alarm, heater break alarm, heatsink overheat alarm
  • Cooling method: Forced air cooling (with the cooling fan)
  • Insulation resistance: ≥ 200 MΩ (500 VDCspecialstring megger)
  • Dielectric strength: 2,000VAC~ 50/60Hz for 1 min (between input terminals and power terminals)
  • Output leakage current: ≤ 10 mArms
  • Noise immunity: ±2kV the square wave noise (pulse width: 1㎲) by the noise simulator
  • Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
  • Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hz in each X, Y, Z direction for 2 hours
  • Vibration_Malfunction: 0.5mm amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 10 min
  • Environment_Ambient temperature: -10 to 55℃, storage: -20 to 80℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Accessories: 11-pin connector, isolating barrier: 4
  • Weight: Approx. 9.7kg (approx. 8.7kg)
