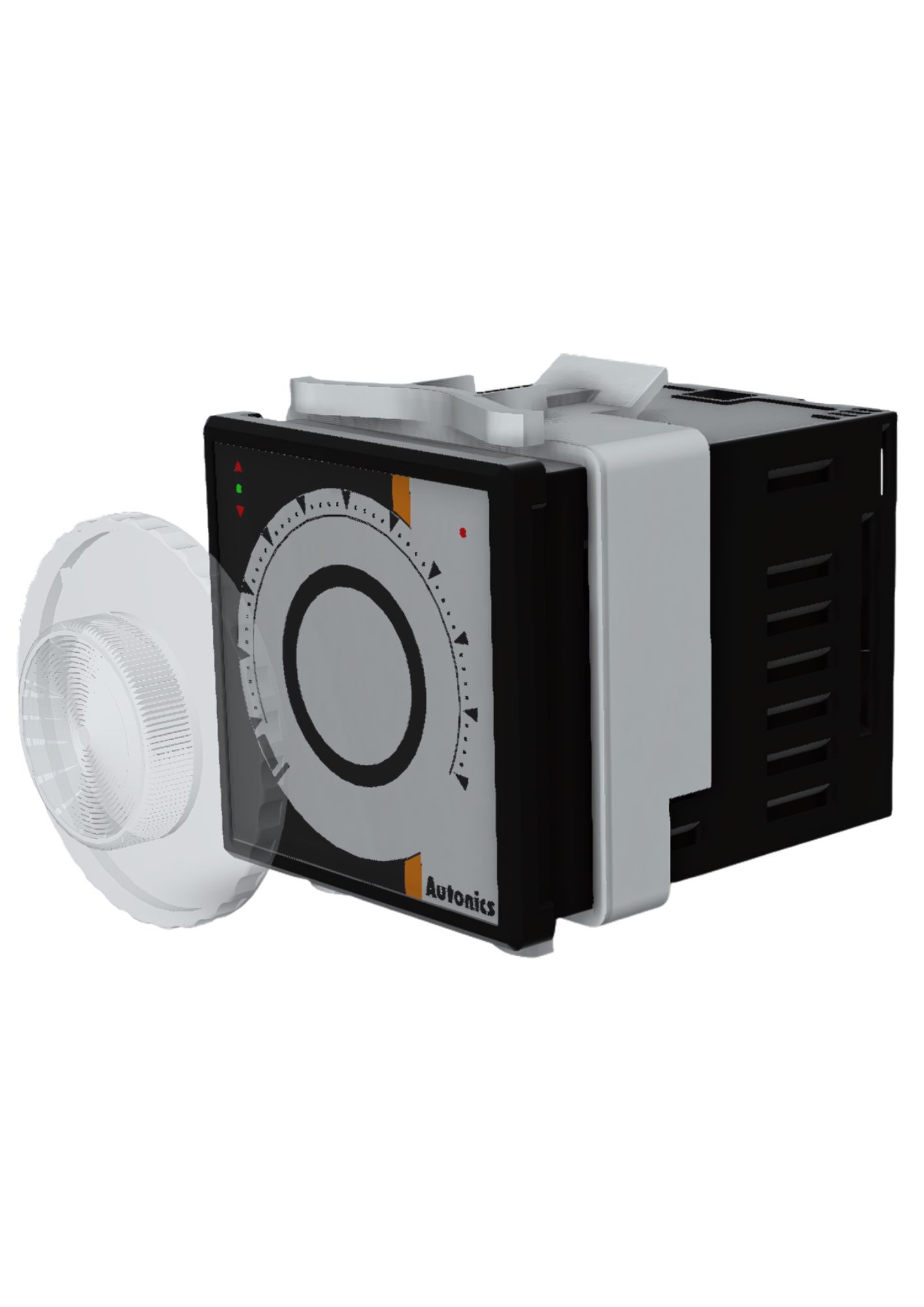

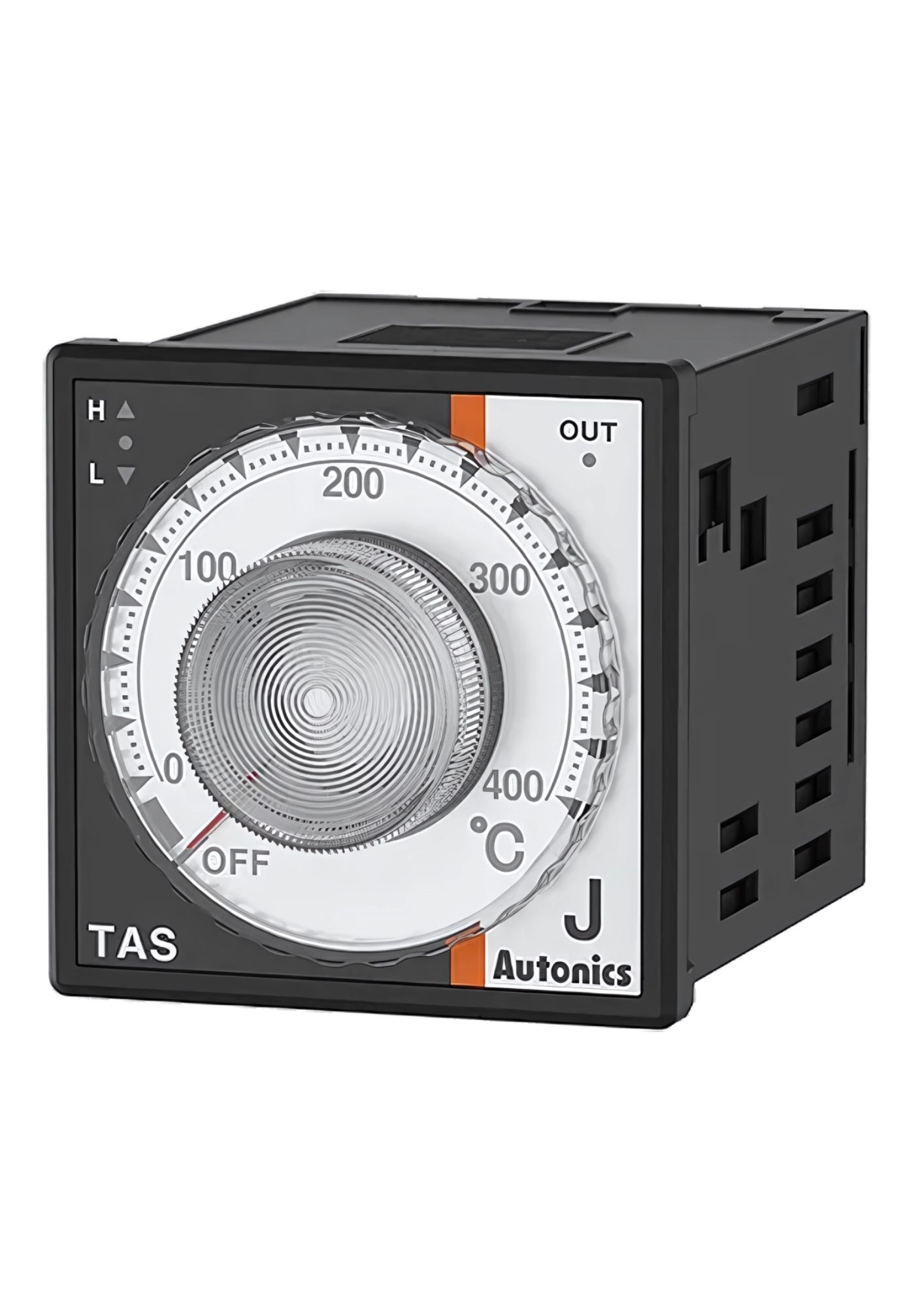

Autonics TAS-B4RJ4C, Analog Non-Indicating Type PID Temperature Controller
Autonics TAS-B4RJ4C, Analog Non-Indicating Type PID Temperature Controller Autonics TAS-B4RJ4C, Analog Non-Indicating Type PID Temperature Controller

Autonics TAS-B4RJ4C, Analog Non-Indicating Type PID Temperature Controller

In stock
SKU
TAS-B4RJ4C
Special Price ₹1,619.20 Regular Price ₹2,944.00
(18% GST Extra)
Add to Wish List
  • Size : DIN W48×H48mm
  • Display method : Non-display
  • Control method : ON/OFF control, PID control
  • Input specification : Thermocouple: J(IC)
  • Temperature unit : ℃
  • Control output : Relay(250VAC~ 3A)
  • Power supply : 100-240VAC~ 50/60Hz
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Size: DIN W48×H48mm
  • Display method: Non-display
  • Control method: ON/OFF control, PID control
  • Input specification: Thermocouple: J(IC)
  • Temperature unit:
  • Setting range: 0 to 400
  • Sampling cycle: 100ms
  • Control output: Relay(250VAC~ 3A)
  • Power supply: 100-240VAC~ 50/60Hz
  • Setting type: Dial setting
  • Setting accuracy: F.S. ±2%(room temperature 23℃±5℃)
  • Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Insulation type: Double insulation or reinforced insulation(dielectric strength between the measuring input part and the power part: 2kV)
  • Weight: Approx. 107g(approx. 69g)

No specifications available for this product.
