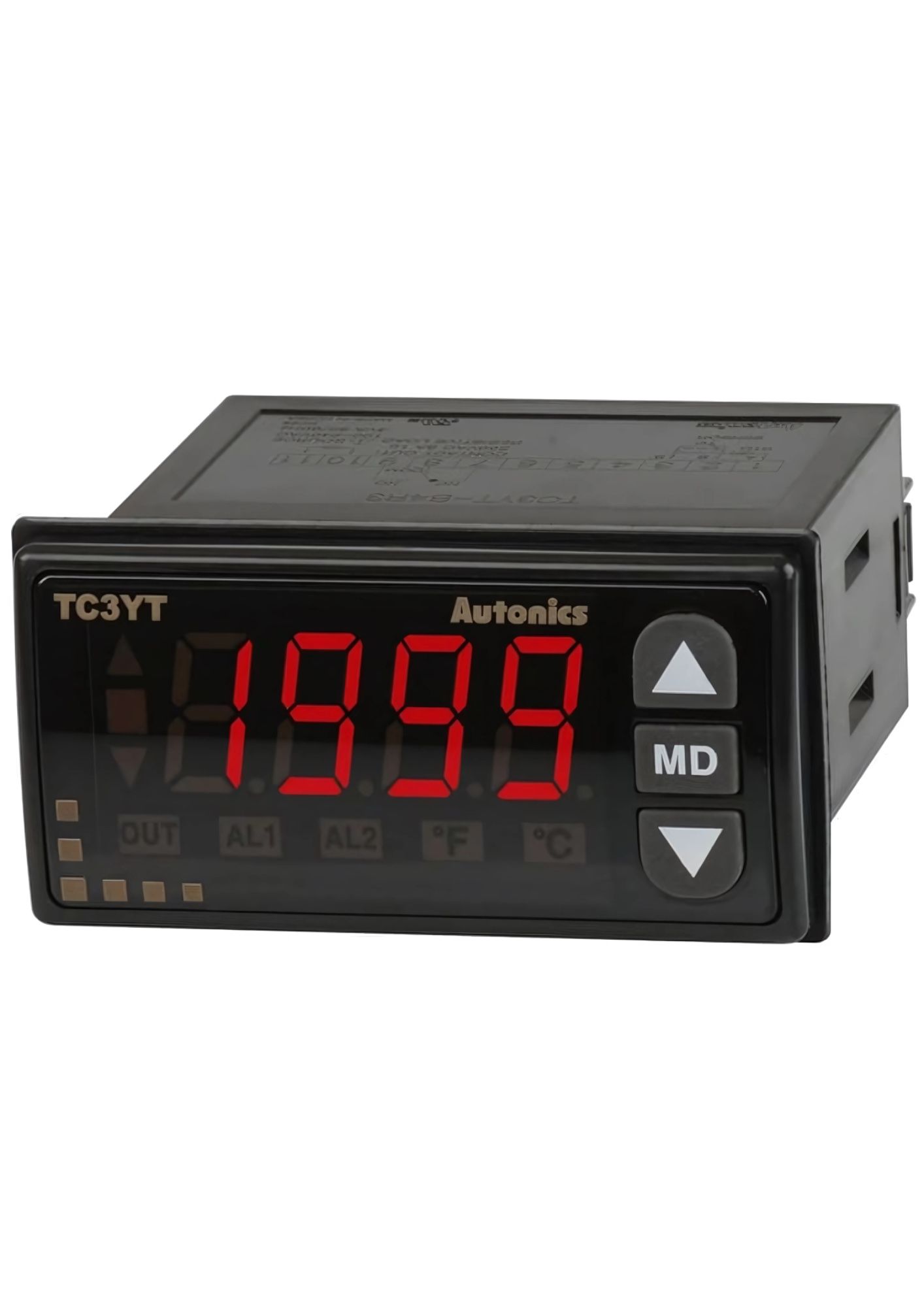

Autonics TC3YT-B4R16, Temp Control, On-Off / Proportional mode, 3 digit display, Relay output 16A, 100-240 VAC
Autonics TC3YT-B4R16, Temp Control, On-Off / Proportional mode, 3 digit display, Relay output 16A, 100-240 VAC

Autonics TC3YT-B4R16, Temp Control, On-Off / Proportional mode, 3 digit display, Relay output 16A, 100-240 VAC

In stock
SKU
TC3YT-B4R16
Special Price ₹3,738.90 Regular Price ₹6,798.00
(18% GST Extra)
Add to Wish List
  • Display method : 3-digit 7-segment LED
  • Control method : ON/OFF control, P control
  • Input specification : Thermocouple: K (CA), J (IC)
  • RTD: DPt100 Ω
  • Sampling cycle : 500 ms
  • Control output : Relay (3 A)
  • Power supply : 100-240 VACᜠ 50/60 Hz
  • Protection structure : IP65 (front panel)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Power supply: 100 - 240 VAC~50/60 Hz
  • Permissible voltage range: 90 to 110 % of rated voltage
  • Power consumption:≤ 4 VA
  • Sampling period: 500 ms
  • Input specification: Refer to 'Input Type and Using Range'.
  • Control output: 250 VAC~ 3 A 1c / 250 VAC~ 16 A 1c(model)
  • Display type: 7 segment (red), LED type
  • Control type: ON/OFF, Proportional control
  • Hysteresis: 1 to 100 ℃
  • Proportional band: 0 to 100%
  • Offset correction: 1 to 120 sec
  • Relay life cycle: Mechanical - ≥ 10,000,000 operations, Electrical - ≥ 100,000 operations (250 VAC~ 3 A load resistance), ≥ 100,000 operations (250 VAC~ 16 A load resistance)
  • Dielectric strength: Between the charging part and the case: 2,000 VAC~ 60 Hz for 1 min
  • Vibration: 0.75 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 1 hours
  • Insulation resistance: ≥ 100 MΩ (500 VDC~ megger)
  • Noise immunity: ±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator R-phase, S-phase
  • Memory retention: ≈ 10 years (non-volatile semiconductor memory type)
  • Ambient temperature: -10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation)
  • Ambient humidity: 35 to 85%RH (no freezing or condensation)
  • Protection structure: IP65 (IEC standards)
  • Unit weight: 103g
