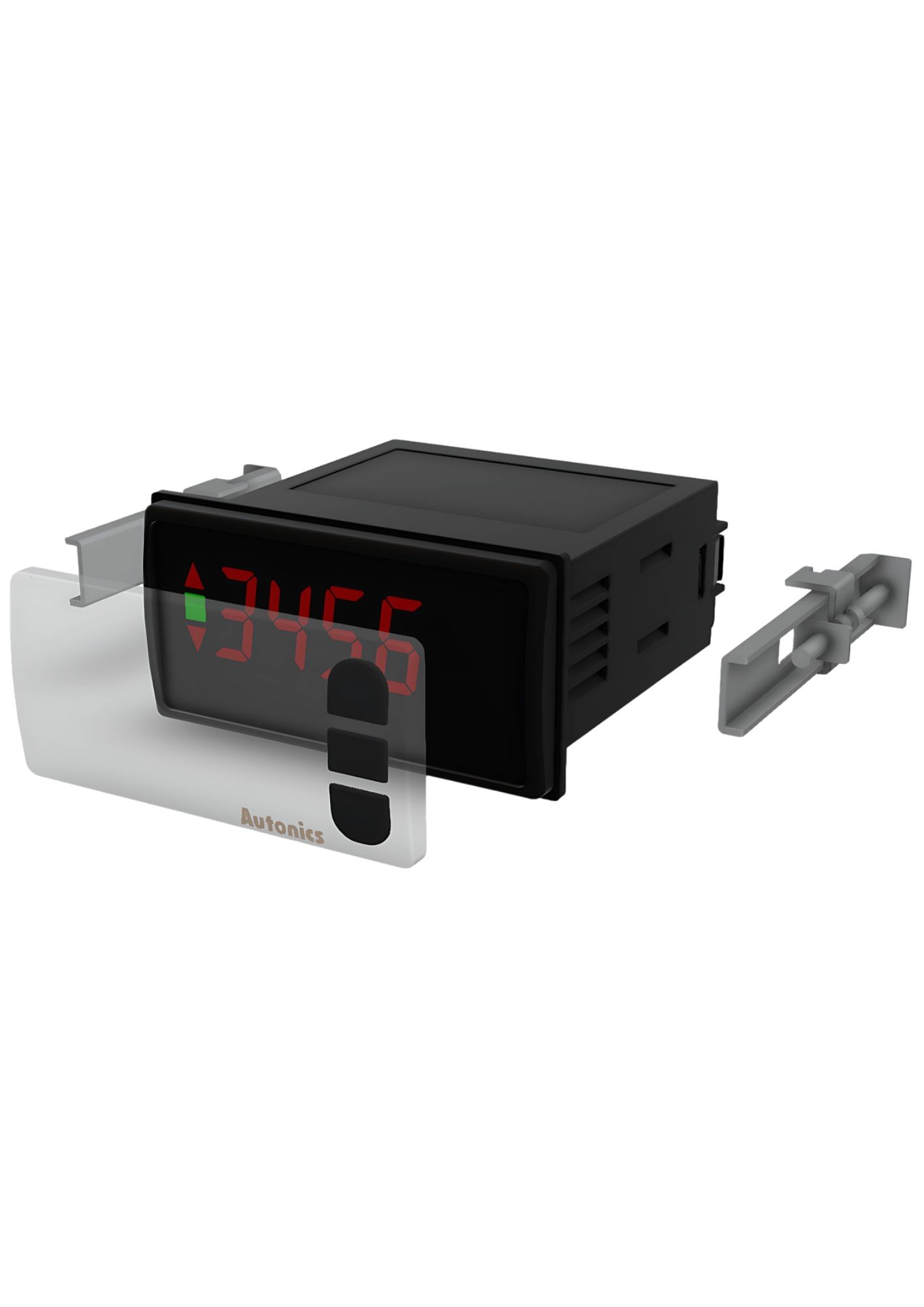

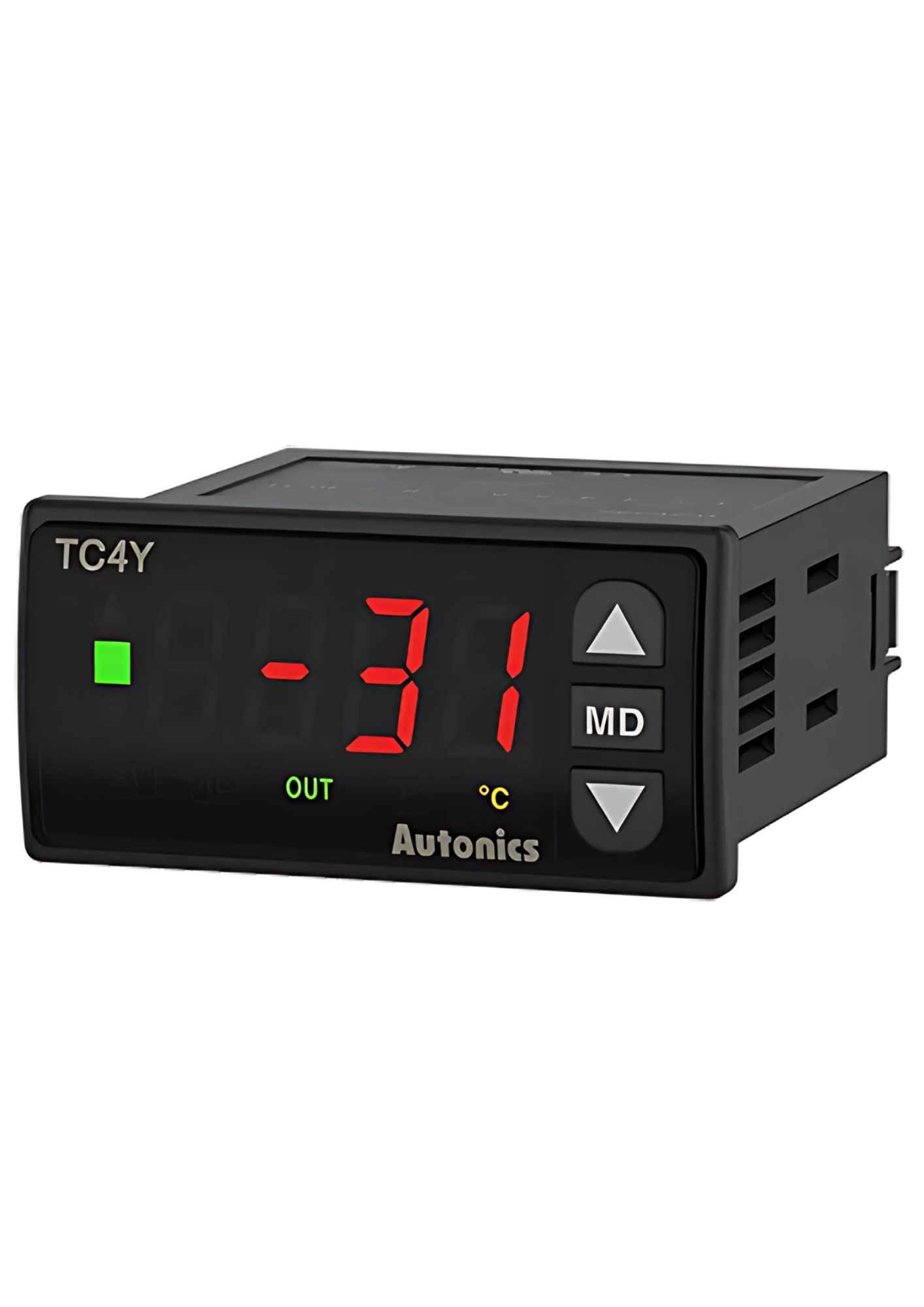

Autonics TC4Y-14R, PID Temperature Controller, Relay and SSR Output, 100-240V, Panel Mount
Autonics TC4Y-14R, PID Temperature Controller, Relay and SSR Output, 100-240V, Panel Mount Autonics TC4Y-14R, PID Temperature Controller, Relay and SSR Output, 100-240V, Panel Mount

Autonics TC4Y-14R, PID Temperature Controller, Relay and SSR Output, 100-240V, Panel Mount

In stock
SKU
TC4Y-14R
Special Price ₹2,900.70 Regular Price ₹5,274.00
(18% GST Extra)
Add to Wish List
  • Size : DIN W72×H36mm
  • Display method : 4-digit 7-segment LED
  • Control method : ON/OFF, P, PI, PD, PID
  • Input specification : Thermocouple: K(CA), J(IC), L(IC), RTD: DPt100Ω, Cu50Ω
  • Sampling cycle : 100ms
  • Control output : Relay (250VAC~ 3A) or SSR drive (12VDC ) [ON/OFF, phase, cycle]
  • Power supply : 100-240VAC~ 50/60Hz
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Size:DIN W72×H36mm
  • Display method:4-digit 7-segment LED
  • Control method: ON/OFF, P, PI, PD, PID
  • Input specification:Thermocouple: K(CA), J(IC), L(IC), RTD: DPt100Ω, Cu50Ω
  • Sampling cycle: 100ms
  • Control output: Relay (250VAC~ 3A) or SSR drive (12VDC ) [ON/OFF, phase, cycle]
  • Option output: Alarm 1
  • Power supply:100-240VAC~ 50/60Hz
  • Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
  • Display accuracy_Thermocouple: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
  • Hysteresis(adjustable sensitivity):1 to 100℃/℉(0.1 to 50.0℃/℉) variable
  • Proportional band: 0.1 to 999.9℃/℉
  • Integral time: 0 to 9999 sec
  • Derivative time:0 to 9999 sec
  • Control period: 0.5 to 120.0 sec
  • Manual reset: 0.0 to 100.0%
  • Environment_Ambient temperature:-10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Insulation type:Double insulation or reinforced insulation(dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
  • Weight:Approx. 174g(approx. 85g)
