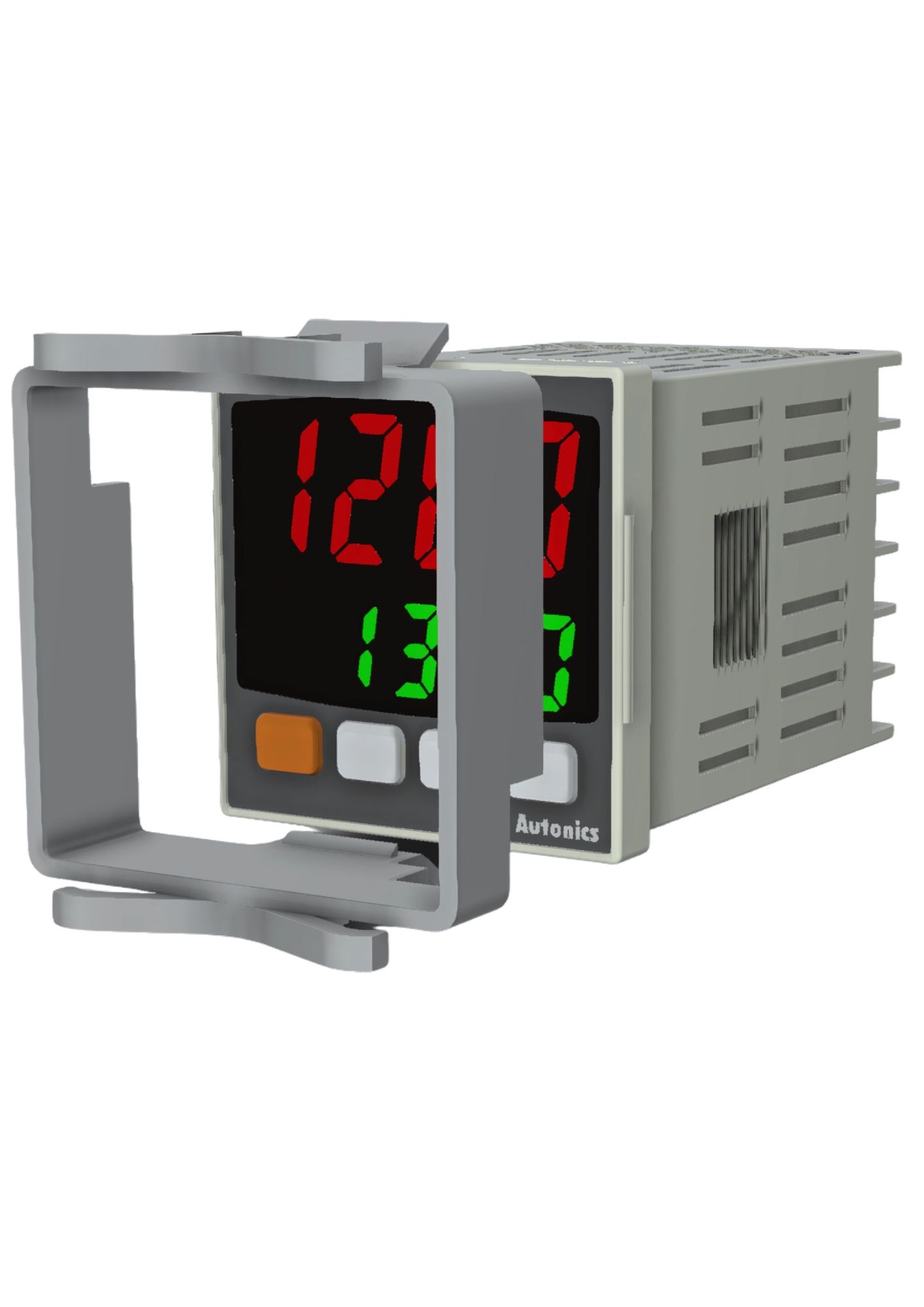

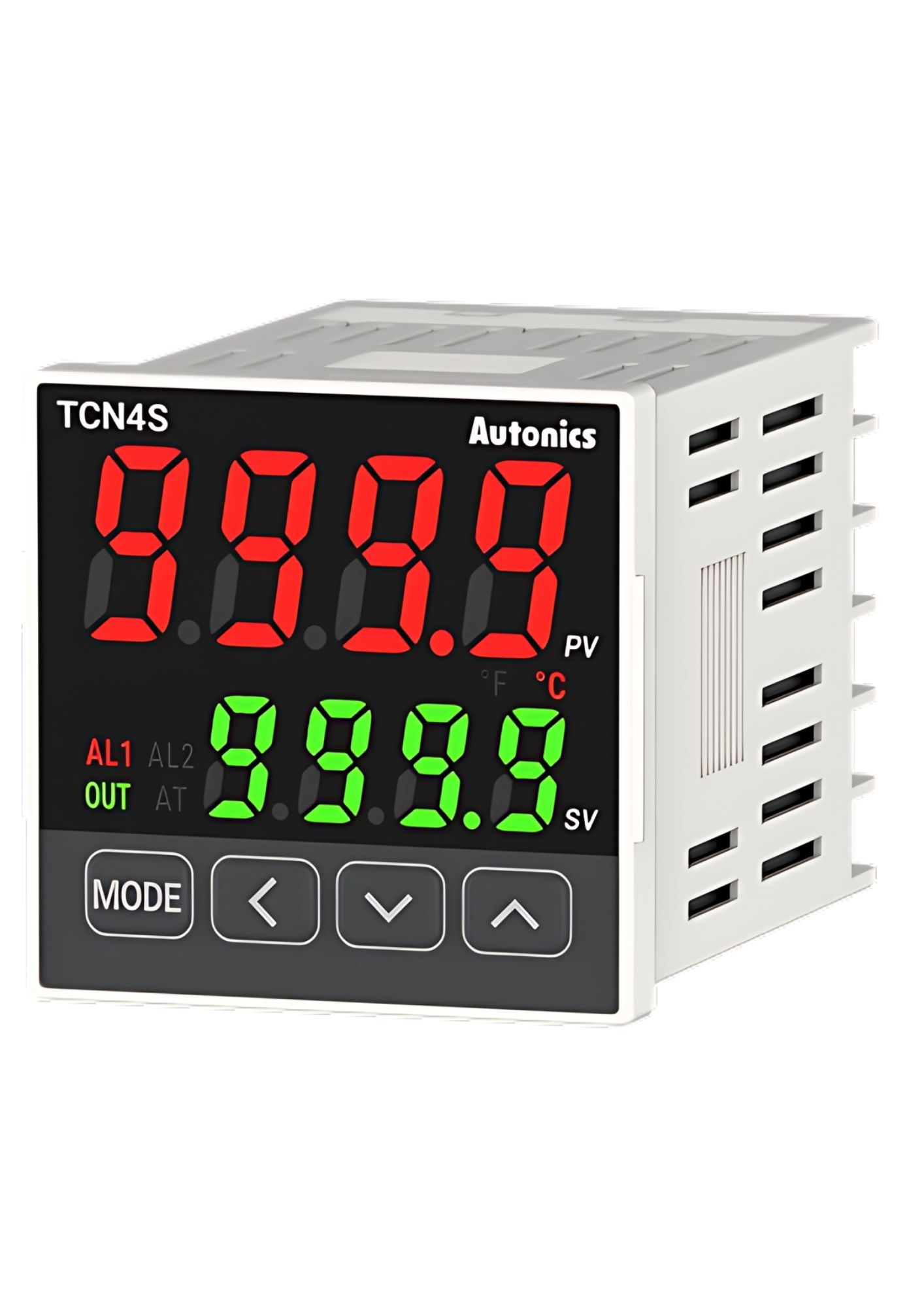

Autonics TCN4S-24R, Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay & SSR Output, 2 Alarm Output, 100-240 VAC, Panel Mount
In stock
SKU
TCN4S-24R
Special Price
₹2,286.35
Regular Price
₹4,157.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification:Thermocouple: K(CA), J(IC), L(IC), RTD: DPt100Ω, Cu50Ω
- Sampling cycle: 100ms
- Control output: Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
- Option output: Alarm 1/2
- Power supply:100-240VAC~ 50/60Hz
- Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
- Display accuracy_Thermocouple: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
- Hysteresis(adjustable sensitivity):1 to 100℃/℉(0.1 to 50.0℃/℉) variable
- Proportional band: 0.1 to 999.9℃/℉
- Integral time: 0 to 9999 sec
- Derivative time:0 to 9999 sec
- Control period: 0.5 to 120.0 sec
- Manual reset: 0.0 to 100.0%
- Environment_Ambient temperature:-10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Insulation type:Double insulation or reinforced insulation(dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
- Weight: Approx. 147g(approx. 100g)
