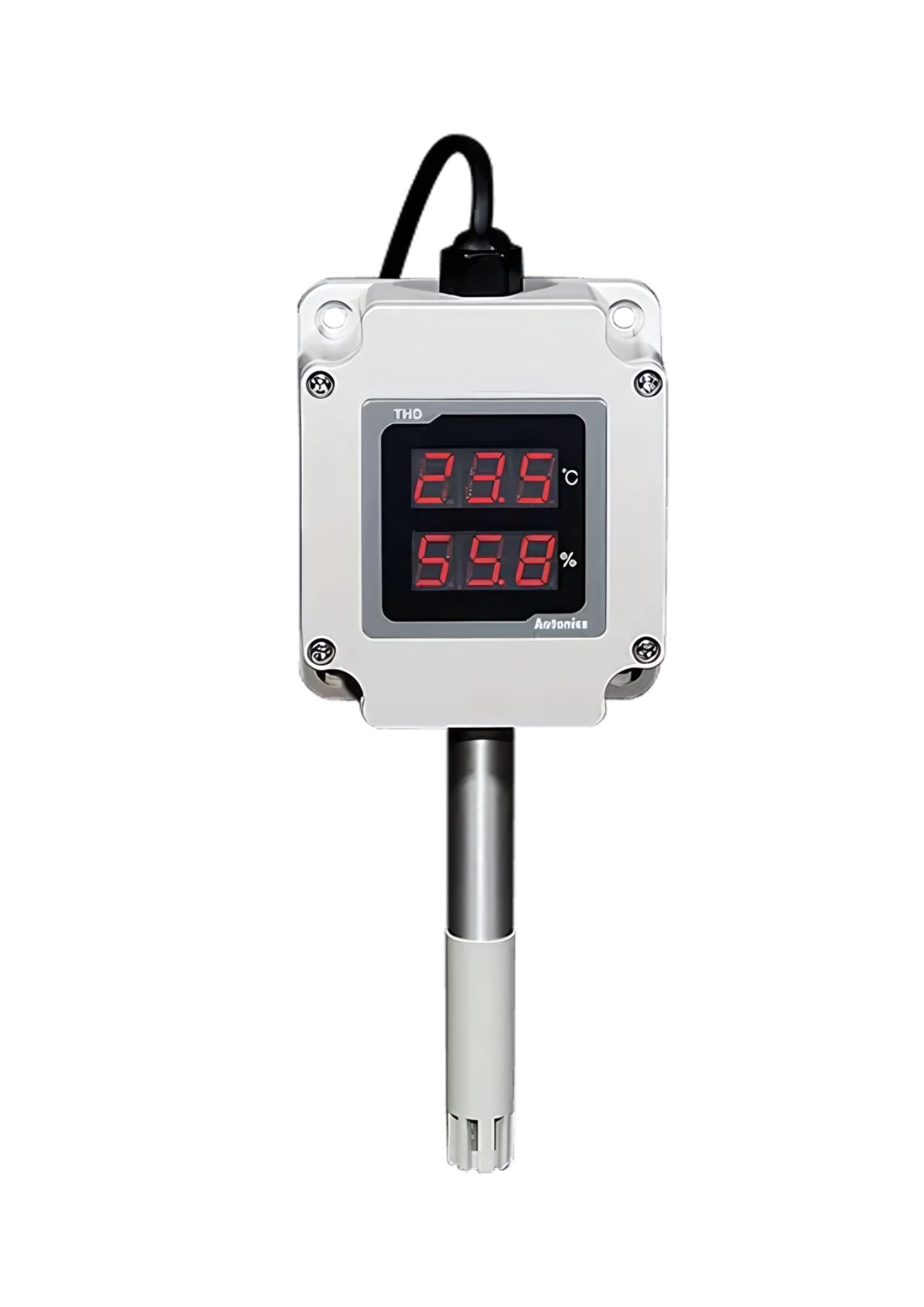

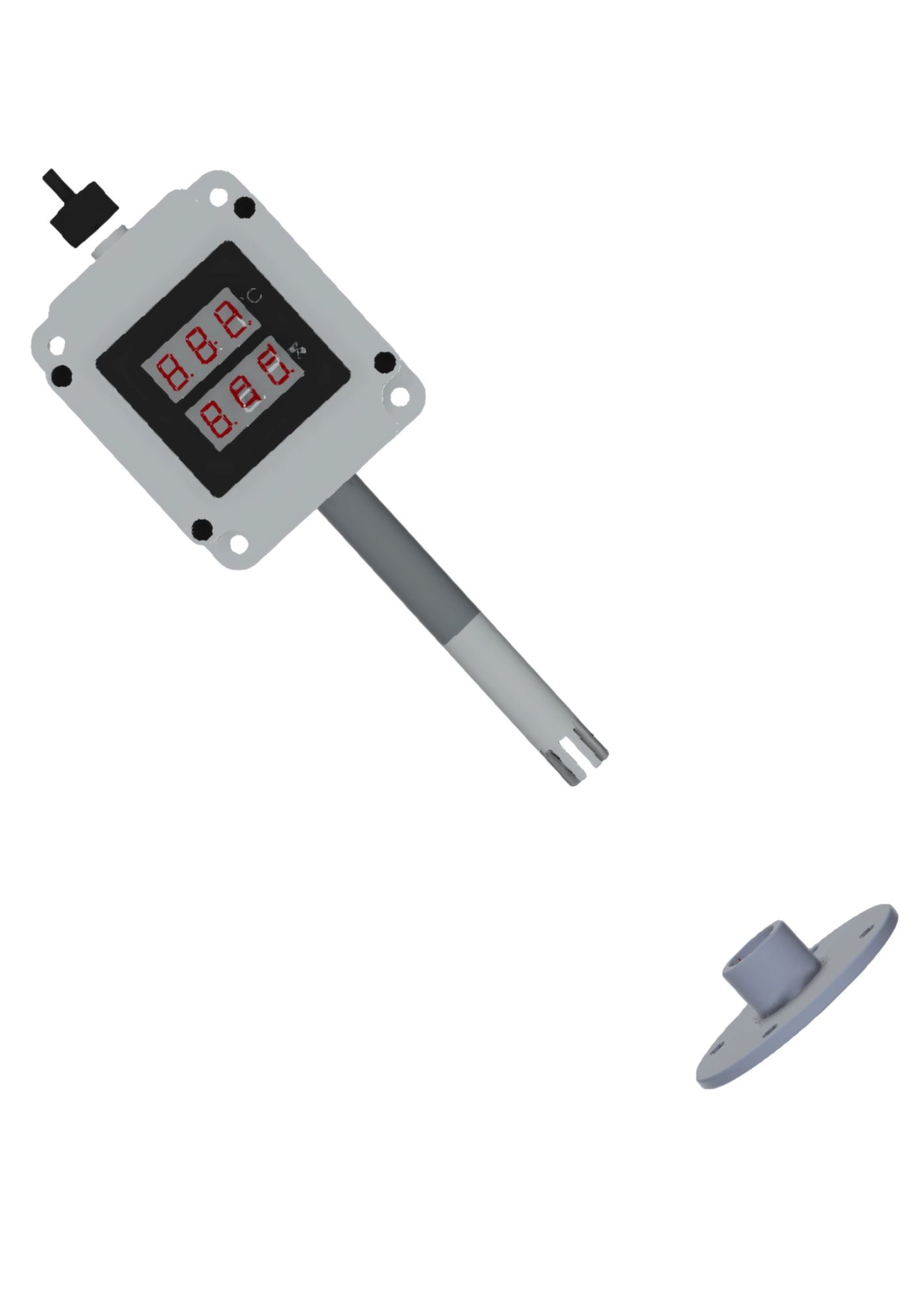

Autonics THD-WD1-C, Temperature/ Humidity Transducers
Autonics THD-WD1-C, Temperature/ Humidity Transducers Autonics THD-WD1-C, Temperature/ Humidity Transducers

Autonics THD-WD1-C, Temperature/ Humidity Transducers

In stock
SKU
THD-WD1-C
Special Price ₹10,157.95 Regular Price ₹18,469.00
(18% GST Extra)
Add to Wish List
  • Display method : 3-digit 7-segment LED
  • Measured range_Temperature : -19.9~60.0℃
  • Measured range_Humidity : 0.0~99.9%RH
  • Output_Temperature : Current output(DC4-20mA)
  • Output_Humidity : Current output(DC4-20mA)
  • Sampling cycle : 500ms
  • Power supply : 24VDC
  • Protection structure : IP65(except sensor part)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display method: 3-digit 7-segment LED
  • Measured range_Temperature: -19.9~60.0℃
  • Measured range_Humidity: 0.0~99.9%RH
  • Output_Temperature: Current output(DC4-20mA)
  • Output_Humidity: Current output(DC4-20mA)
  • Sampling cycle: 500ms
  • Length of sensor pole: 100mm
  • Power supply: 24VDC
  • Protection structure: IP65(except sensor part)
  • Accuracy_Temperature: ±1.0℃(at room temperature)
  • Accuracy_Humidity: Typ. ±2%RH(10 to 90%RH, at room temp.) ※Max. ±2.5%RH
  • Resolution: 1/1000
  • Environment_Ambient temperature: -20 to 60℃, storage: -20 to 60℃
  • Weight: Approx. 415g(approx. 160g)
