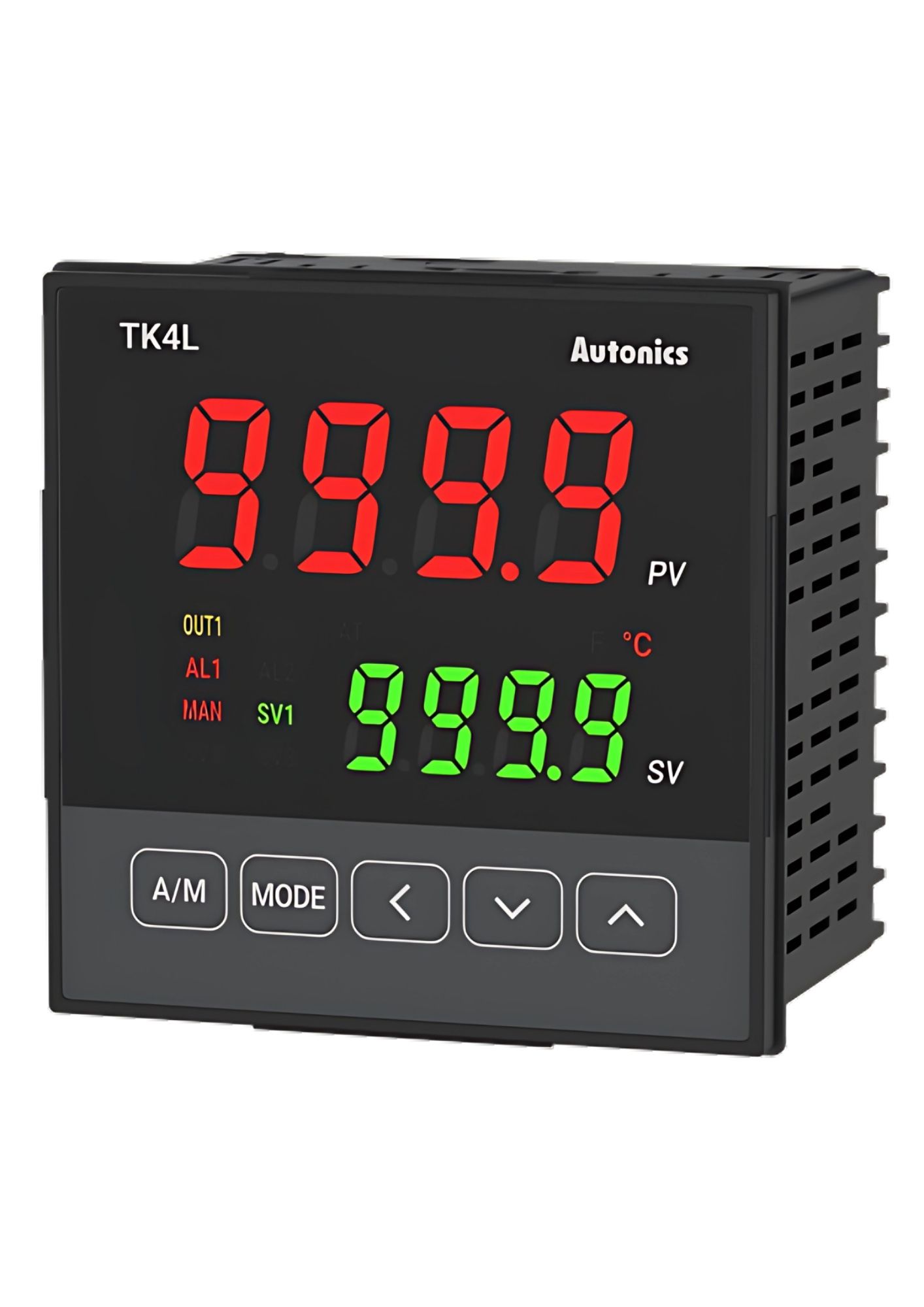

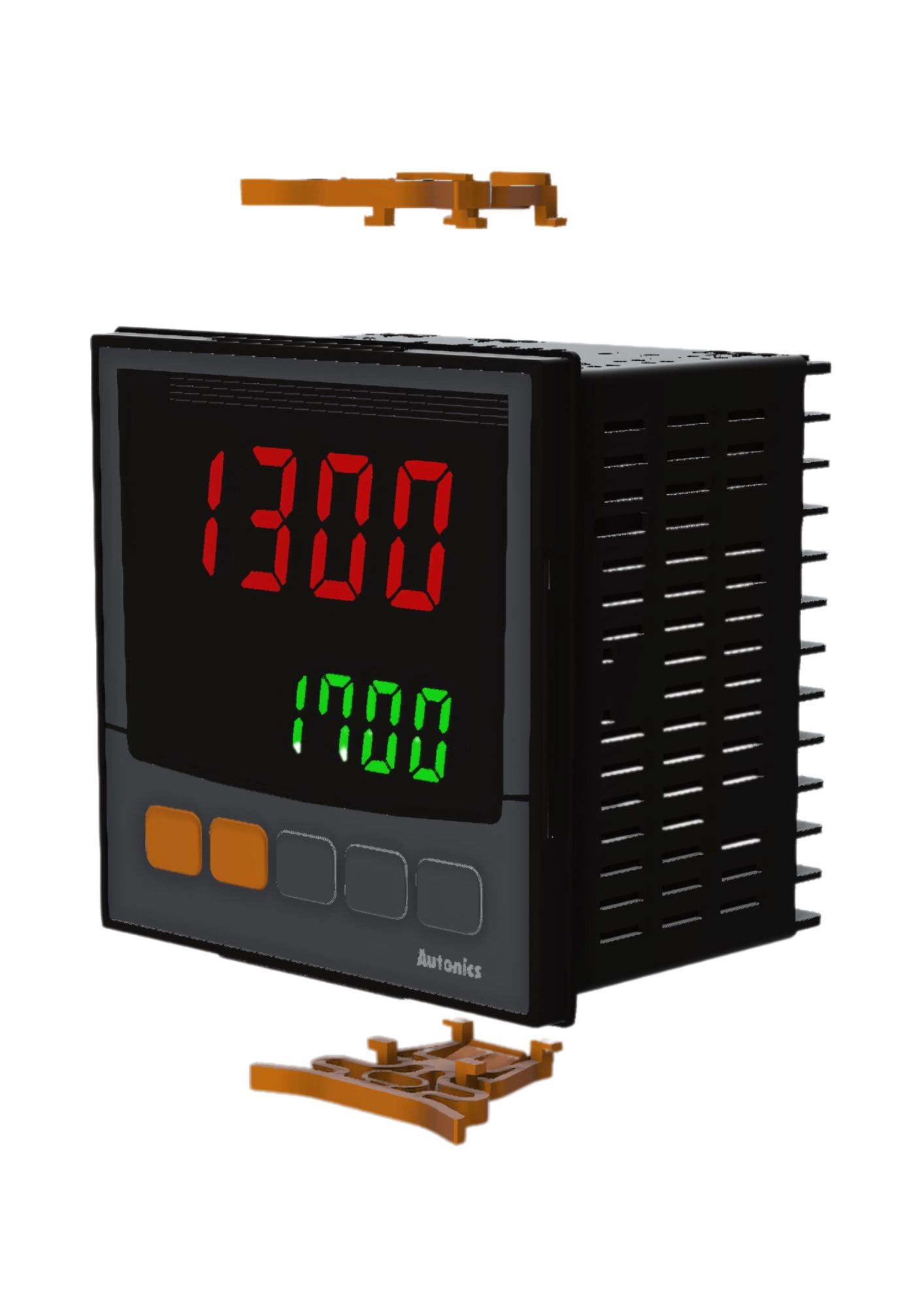

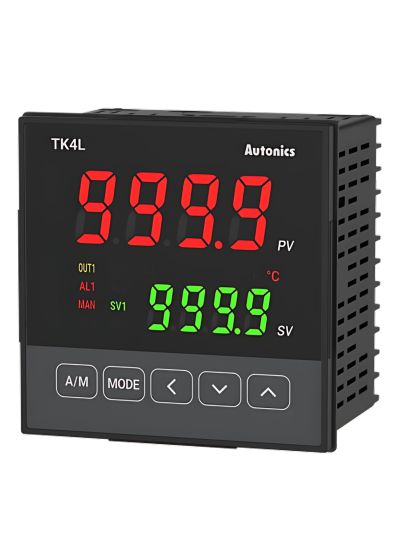

Autonics TK4L-14CN, High Performance PID Temperature Controller
Autonics TK4L-14CN, High Performance PID Temperature Controller Autonics TK4L-14CN, High Performance PID Temperature Controller

Autonics TK4L-14CN, High Performance PID Temperature Controller

In stock
SKU
TK4L-14CN
Special Price ₹4,155.25 Regular Price ₹7,555.00
(18% GST Extra)
Add to Wish List
  • Display method : 4-digit 7-segment LED
  • Control method : ON/OFF, P, PI, PD, PID
  • Input specification : Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II, RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω Analog: 0-100mV, 0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA
  • Sampling cycle : 50ms
  • Control output 1 : Current(DC0/4-20mA) or SSR drive(11VDC) [ON/OFF]
  • Option output : Alarm 1
  • Power supply : 100-240VAC~ 50/60Hz
  • Protection structure : IP65(front panel)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display method:4-digit 7-segment LED
  • Control method:ON/OFF, P, PI, PD, PID
  • Input specification:Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω, Analog: 0-100mV, 0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA
  • Sampling cycle:50ms
  • Control output 1:Current(DC0/4-20mA) or SSR drive(11VDC) [ON/OFF]
  • Option input:CT, Digital(DI-1/2)
  • Option output:Alarm 1
  • Power supply:100-240VAC~ 50/60Hz
  • Protection structure:IP65(front panel)
  • Display accuracy_RTD:•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
  • Display accuracy_Thermocouple:•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
  • Display accuracy_Analog:•At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5℃% F.S. ±1-digit
  • Display accuracy_CT input:±5% F.S. ±1-digit
  • Hysteresis(adjustable sensitivity):RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit
  • Proportional band:0.1 to 999.9℃/℉(0.1 to 999.9%)
  • Integral time:0 to 9999 sec
  • Derivative time:0 to 9999 sec
  • Control period:Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
  • Manual reset:0.0 to 100.0%
  • Environment_Ambient temperature:-10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity:35 to 85% RH, storage: 35 to 85% RH
  • Insulation type:Double insulation or reinforced insulation(dielectric strength between the measuring input part and the power part: 2kV)
  • Weight:Approx. 294g(approx. 198g)
