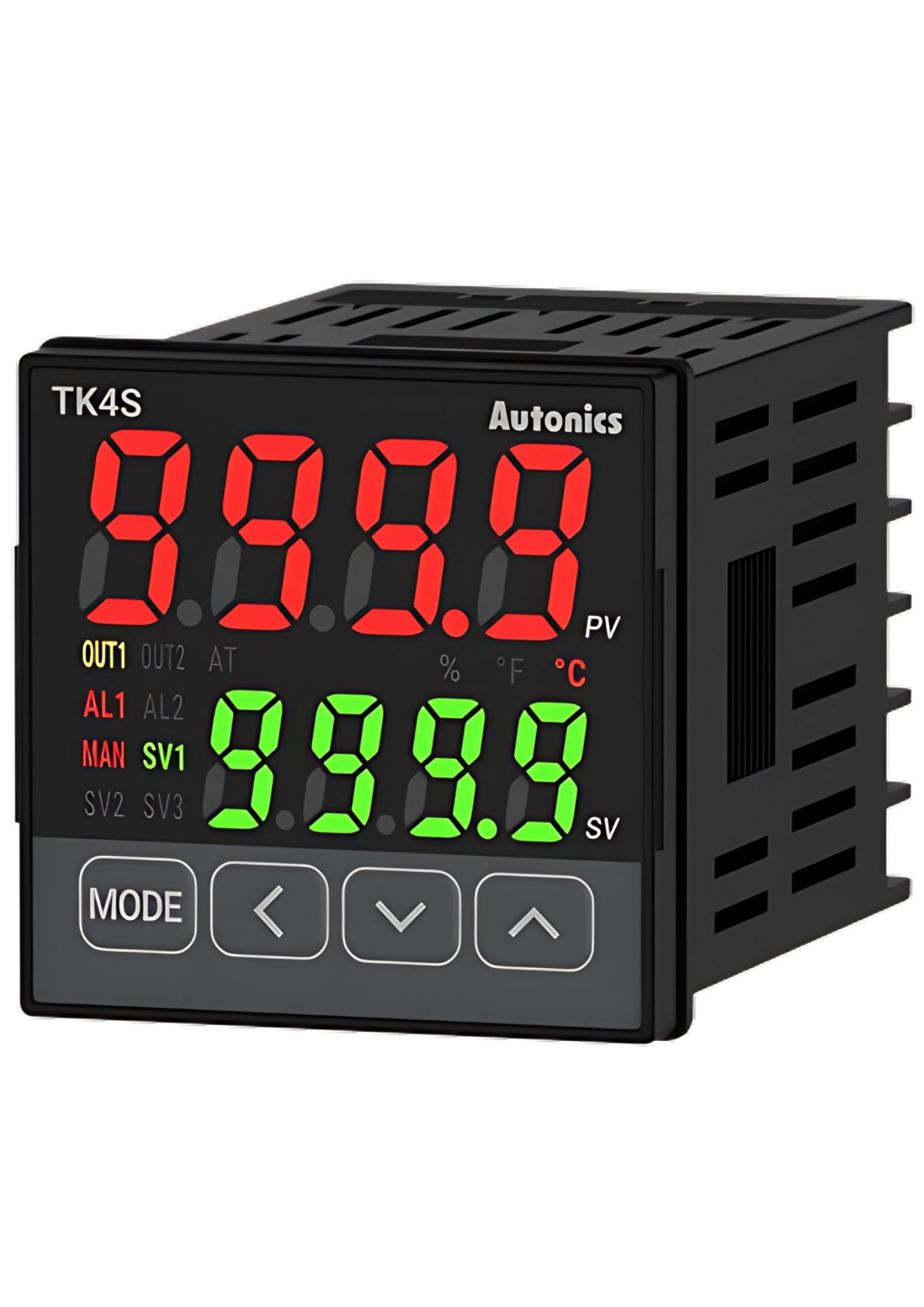

Autonics TK4S-R4RR, High Performance PID Temperature Controller, 4-digit 7-segment LED
Out of stock
SKU
TK4S-R4RR
Special Price
₹4,788.30
Regular Price
₹8,706.00


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Display method:4-digit 7-segment LED
- Control method:ON/OFF, P, PI, PD, PID
- Input specification:Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω, Analog: 0-100mV, 0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA
- Sampling cycle:50ms
- Control output 1:Relay(250VAC~ 3A)
- Control output 2:Relay(250VAC~ 3A)
- Option input:CT, Digital(DI-1)
- Option output:Alarm 1, Transmission(DC4-20mA)
- Power supply:100-240VAC~ 50/60Hz
- Protection structure:IP65(front panel)
- Display accuracy_RTD:•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
- Display accuracy_Thermocouple:•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
- Display accuracy_Analog:•At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5℃% F.S. ±1-digit
- Display accuracy_CT input:±5% F.S. ±1-digit
- Hysteresis(adjustable sensitivity):RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit
- Proportional band:0.1 to 999.9℃/℉(0.1 to 999.9%)
- Integral time:0 to 9999 sec
- Derivative time:0 to 9999 sec
- Control period:Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
- Manual reset:0.0 to 100.0%
- Environment_Ambient temperature:-10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity:35 to 85% RH, storage: 35 to 85% RH
- Insulation type:Double insulation or reinforced insulation(dielectric strength between the measuring input part and the power part: 2kV)
- Weight:Approx. 150g(approx. 105g)
