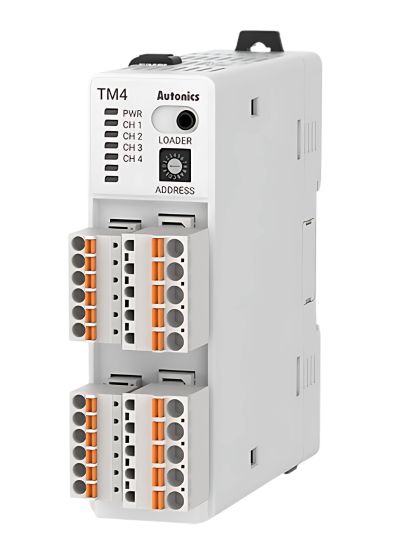

Autonics TM4-N2SB, Multi-Channel PID Temperature Controller
Autonics TM4-N2SB, Multi-Channel PID Temperature Controller Autonics TM4-N2SB, Multi-Channel PID Temperature Controller

Autonics TM4-N2SB, Multi-Channel PID Temperature Controller

In stock
SKU
TM4-N2SB
Special Price ₹12,439.00 Regular Price ₹22,618.00
(18% GST Extra)
Add to Wish List
Feature:
  • Number of input channels: 4-channel
  • Sampling cycle: 100ms (4-CH synchronous sampling)
  • Control output: 22 VDC ±3 V, ≤ 30 mA
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Number of input channels: 4-channel
  • Power supply: 24VDC ±10%
  • Power consumption: ≤ 5 W (for Max. load)
  • Sampling cycle: 100ms (4-CH synchronous sampling)
  • RS485 Communication: Modbus ASCII / RTU
  • Control output: 22 VDC ±3 V, ≤ 30 mA
  • Hysteresis: 1 to 100 (0.1 to 100) ℃/℉
  • Display method: Non-display
  • Control method: ON/OFF, P, PI, PD, PID
  • Proportional band: 0.1 to 999.9℃/℉
  • Integral time: 0 to 9999 sec
  • Derivative time: 0 to 9999 sec
  • Control period: 0.1 to 120.0 sec
  • Manual reset: 0.0 to 100.0%
  • Environment - Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment - Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Insulation type: Double insulation or reinforced insulation (dielectric strength between the measuring input part and the power part: 1kV)
  • Weight (Basic module): Approx. 239g (approx. 174g)
