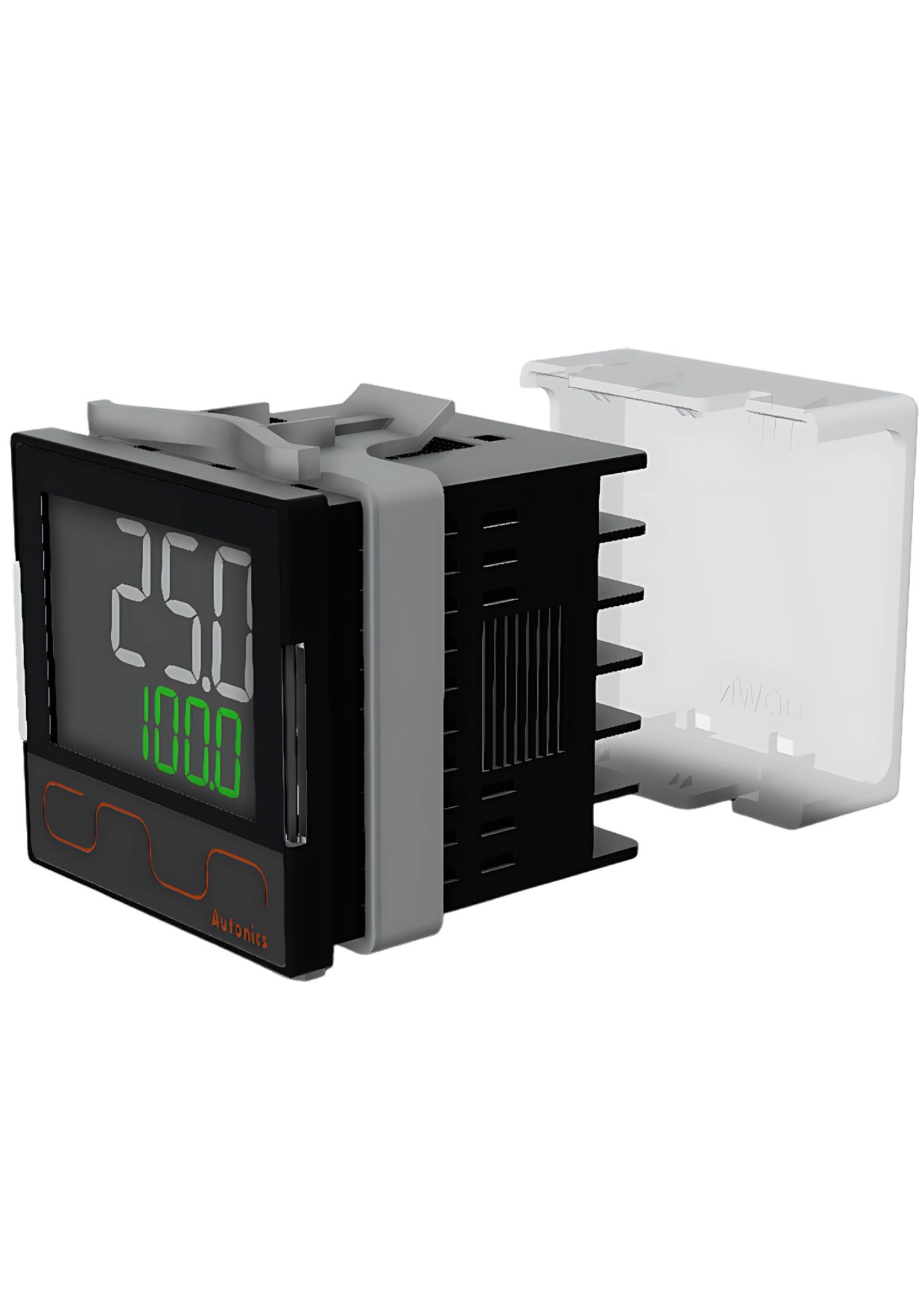

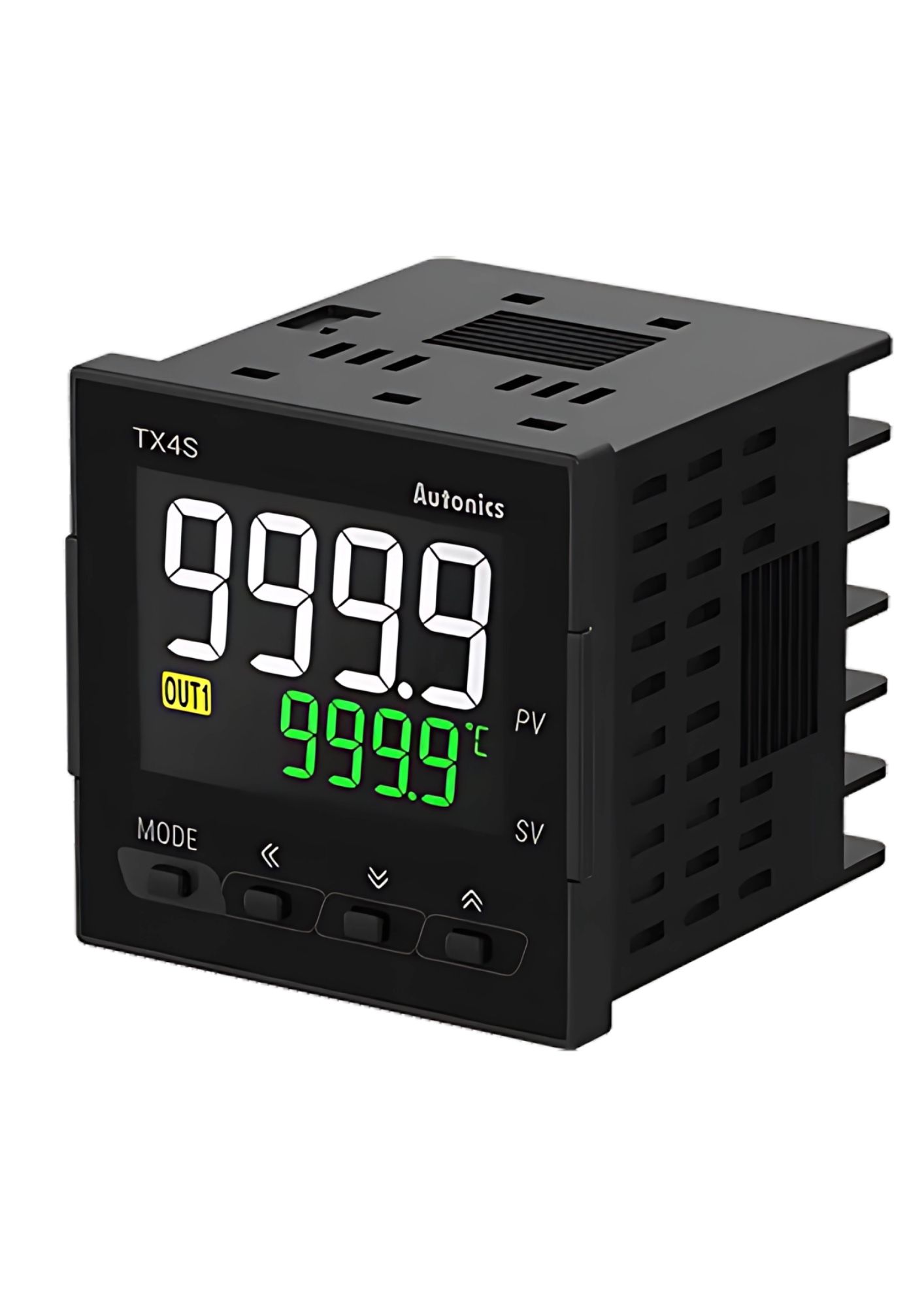

Autonics TX4S-14R, LCD Display PID Temperature Controller
Autonics TX4S-14R, LCD Display PID Temperature Controller Autonics TX4S-14R, LCD Display PID Temperature Controller

Autonics TX4S-14R, LCD Display PID Temperature Controller

In stock
SKU
TX4S-14R
Special Price ₹2,903.45 Regular Price ₹5,279.00
(18% GST Extra)
Add to Wish List
  • Display method : 4-digit 11-segment LCD
  • Control method : ON/OFF, P, PI, PD, PID
  • Input specification : Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω
  • Sampling cycle : 50ms
  • Control output : Relay (250VAC~ 3A, 30VDC specialstring 3A)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display method: 4-digit 11-segment LCD
  • Control method: ON/OFF, P, PI, PD, PID
  • Input specification: Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω
  • Sampling cycle: 50ms
  • Control output: Relay (250VAC~ 3A, 30VDC, 3A)
  • Option output: Alarm 1
  • Power supply: 100-240VAC~ 50/60Hz
  • Protection structure: IP50(front panel)
  • Display accuracy_RTD: •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
  • Display accuracy_Thermocouple:•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
  • Hysteresis(adjustable sensitivity): 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
  • Proportional band: 0.1 to 999.9℃/℉
  • Integral time: 0 to 9999 sec
  • Derivative time: 0 to 9999 sec
  • Control period: 0.5 to 120.0 sec
  • Manual reset: 0.0 to 100.0%
  • Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Insulation type: Double insulation (dielectric strength between primary circuit and secondary circuit: 3kV)
  • Weight: Approx. 146.1g(approx. 86.7g)
