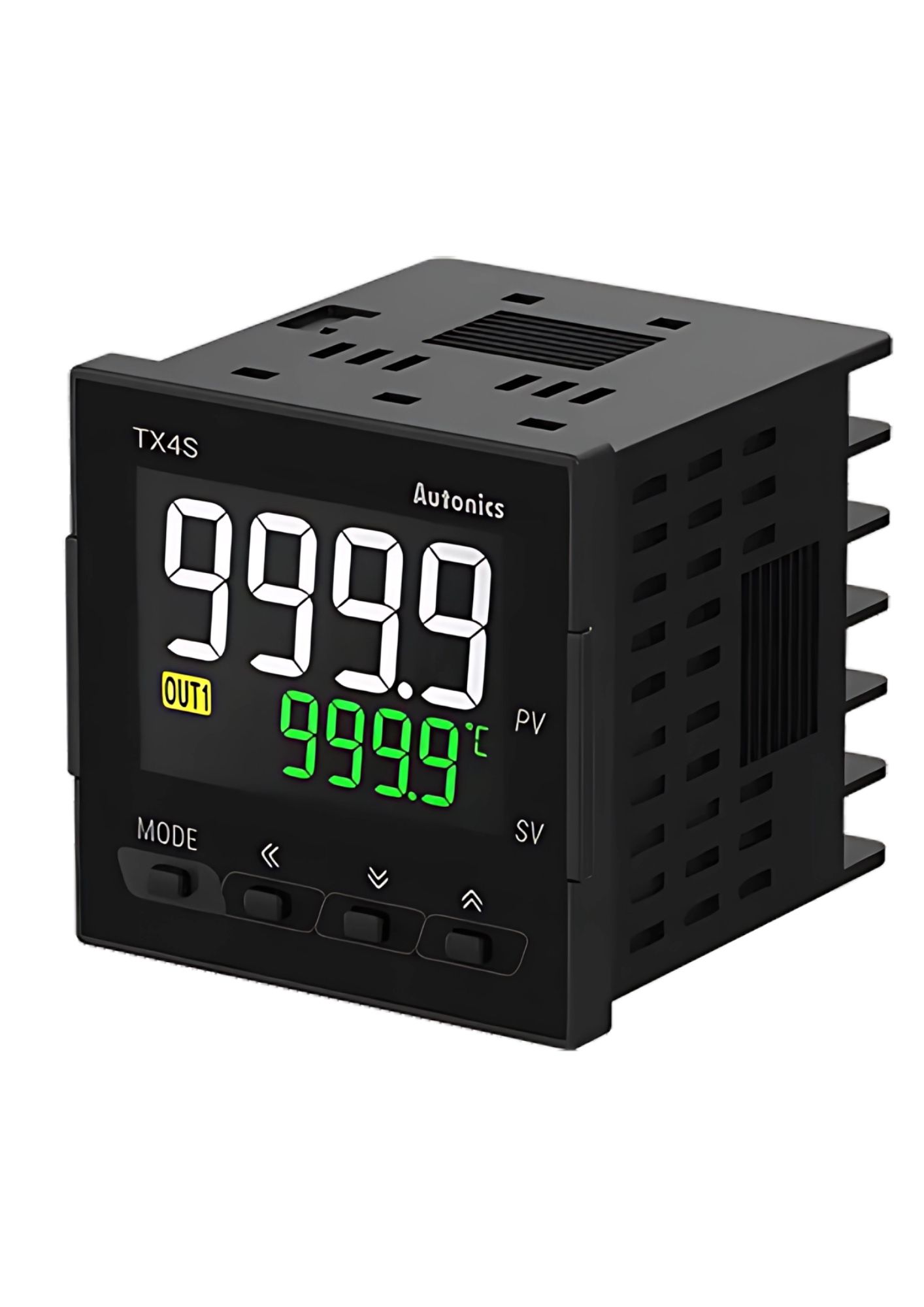

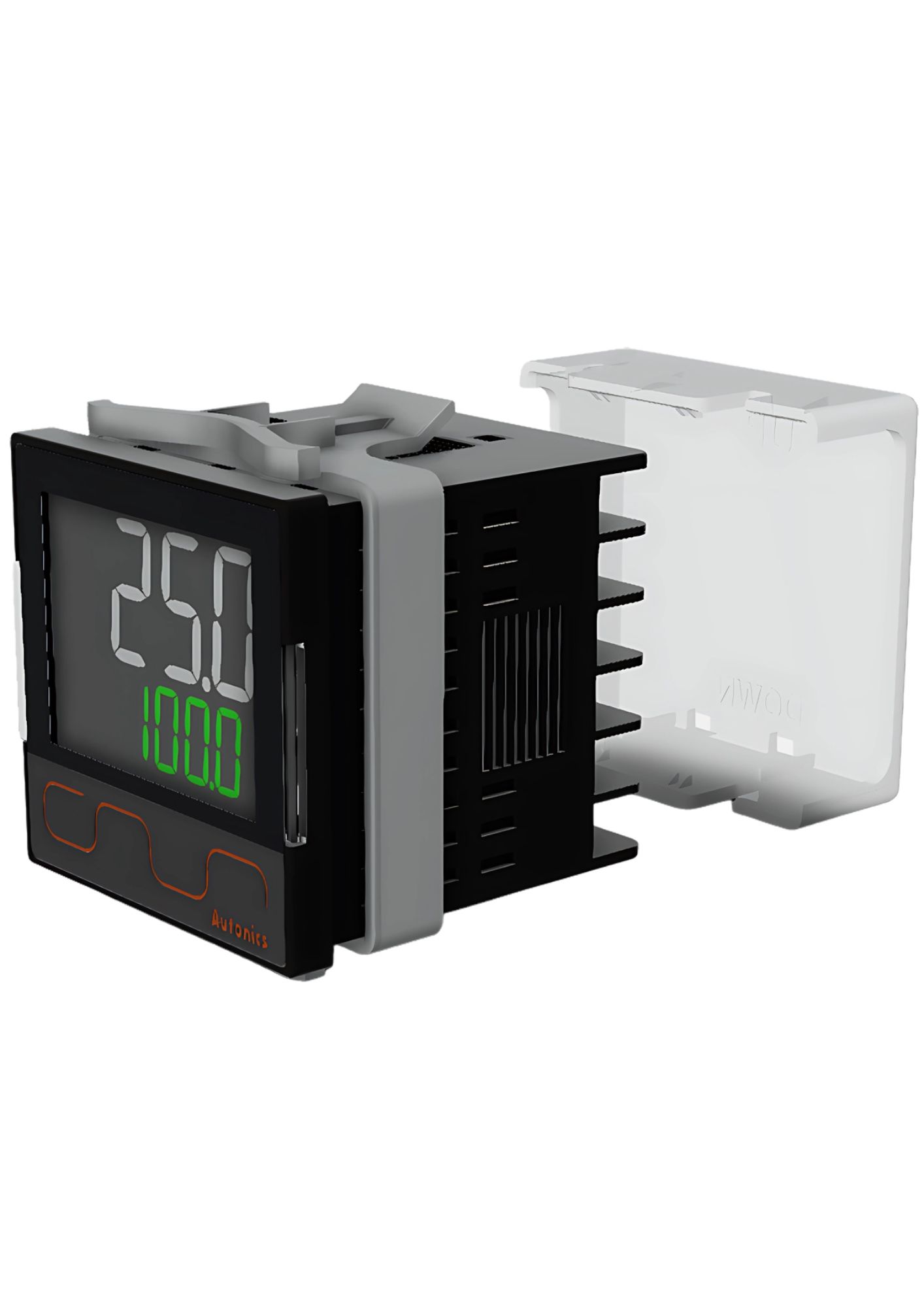

Autonics TX4S-24S, 4-digit 11-segment LCD Display, PID Temperature Controller
In stock
SKU
TX4S-24S
Special Price
₹3,001.90
Regular Price
₹5,458.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Display method: 4-digit 11-segment LCD
- Control method: ON/OFF, P, PI, PD, PID
- Input specification: Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω
- Sampling cycle: 50ms
- Control output: SSR drive(12VDC) [ON/OFF, phase, cycle]
- Option output: Alarm 1/2
- Power supply: 100-240VAC~ 50/60Hz
- Protection structure: IP50(front panel)
- Display accuracy_RTD: •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
- Display accuracy_Thermocouple: •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
- Hysteresis(adjustable sensitivity): 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
- Proportional band: 0.1 to 999.9℃/℉
- Integral time: 0 to 9999 sec
- Derivative time: 0 to 9999 sec
- Control period: 0.5 to 120.0 sec
- Manual reset: 0.0 to 100.0%
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Insulation type: Double insulation (dielectric strength between primary circuit and secondary circuit: 3kV)
- Weight:Approx. 146.1g(approx. 86.7g)
