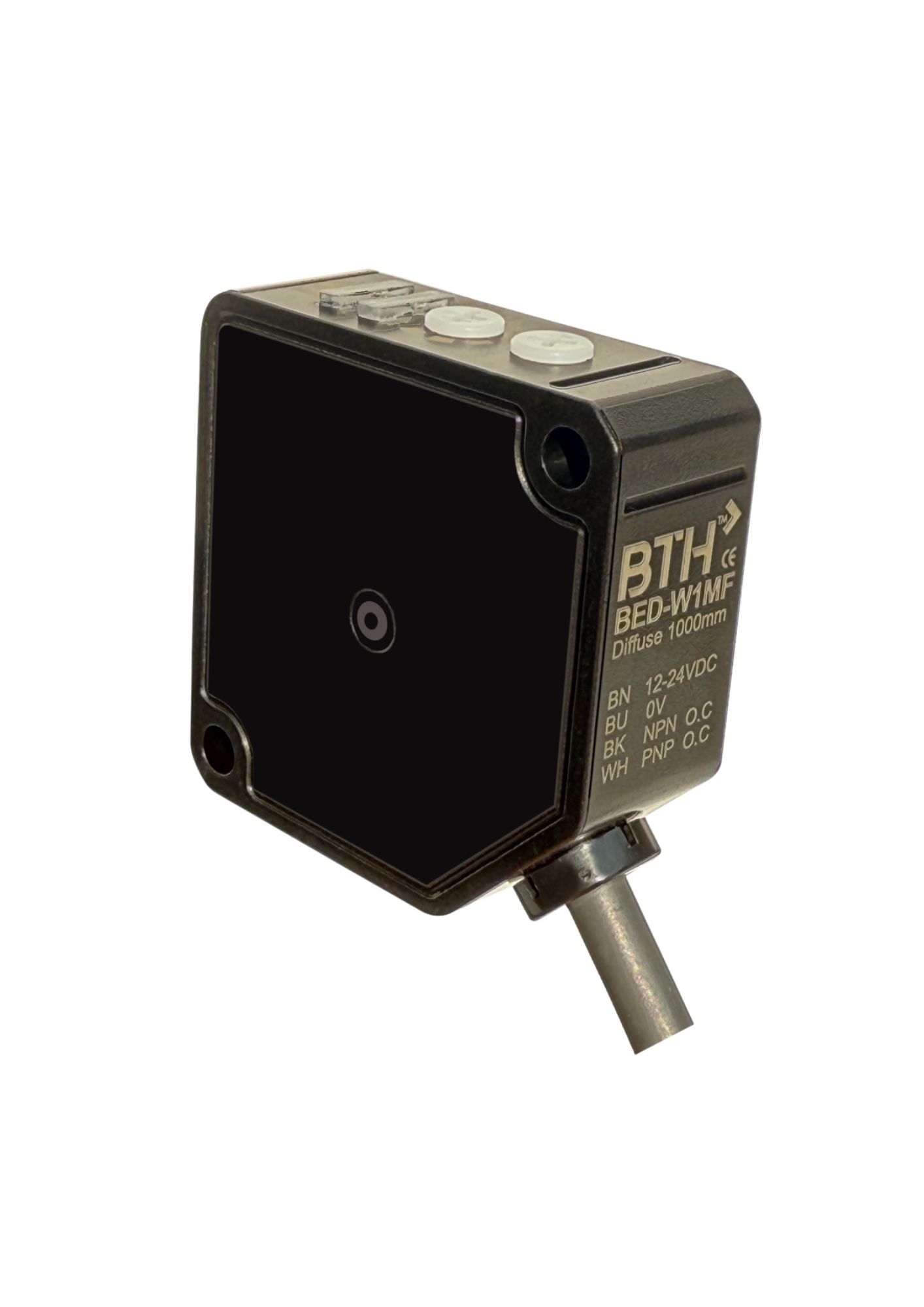

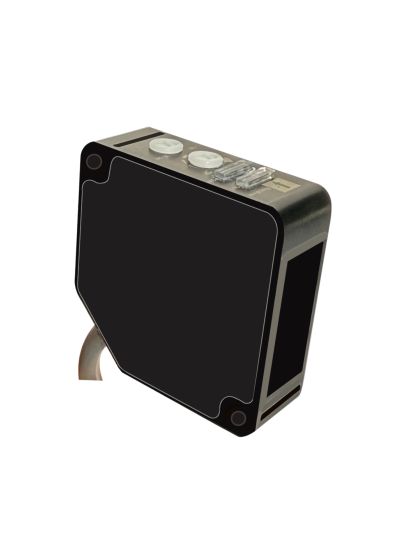

BED-W1MF||50mm Square Body Diffuse Photo Sensor, Sensing Range 1000mm, PNP/NPN

In stock

SKU

BED-W1MF

Special Price ₹2,762.50 Regular Price ₹4,250.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Sensing Type: Diffuse Reflection
Sensing Distance: 1000mm (300 x 300)
Emitting Light: Infrared LED 940 nm
Operating Voltage: 12~ 24VDC
Current Consumption: 30 mA Max.
Load Current: 100mA
Output type (selectable): PNP(NO) Dark on / PNP(NC) Light on/NPN(NO) Dark on// NPN(NC) Light on
Response Time: 1.5 ms Max.
Time delay function: 0.2 Sec time delay function selectable
Insulation Resistance: 20MΩ min. (DC500V)
Voltage with standability: AC1000V 60Hz for 60 Sec.
Operating Temperature: -20°C ~ + 60°C
Ambient Humidity: 35% ~ 85% RH
Protection Degree: IP65
Material: ABS
Wiring method: Pre-weird Ø4.2 x 2 M / 4-wires
Weight: Approx. 45g
