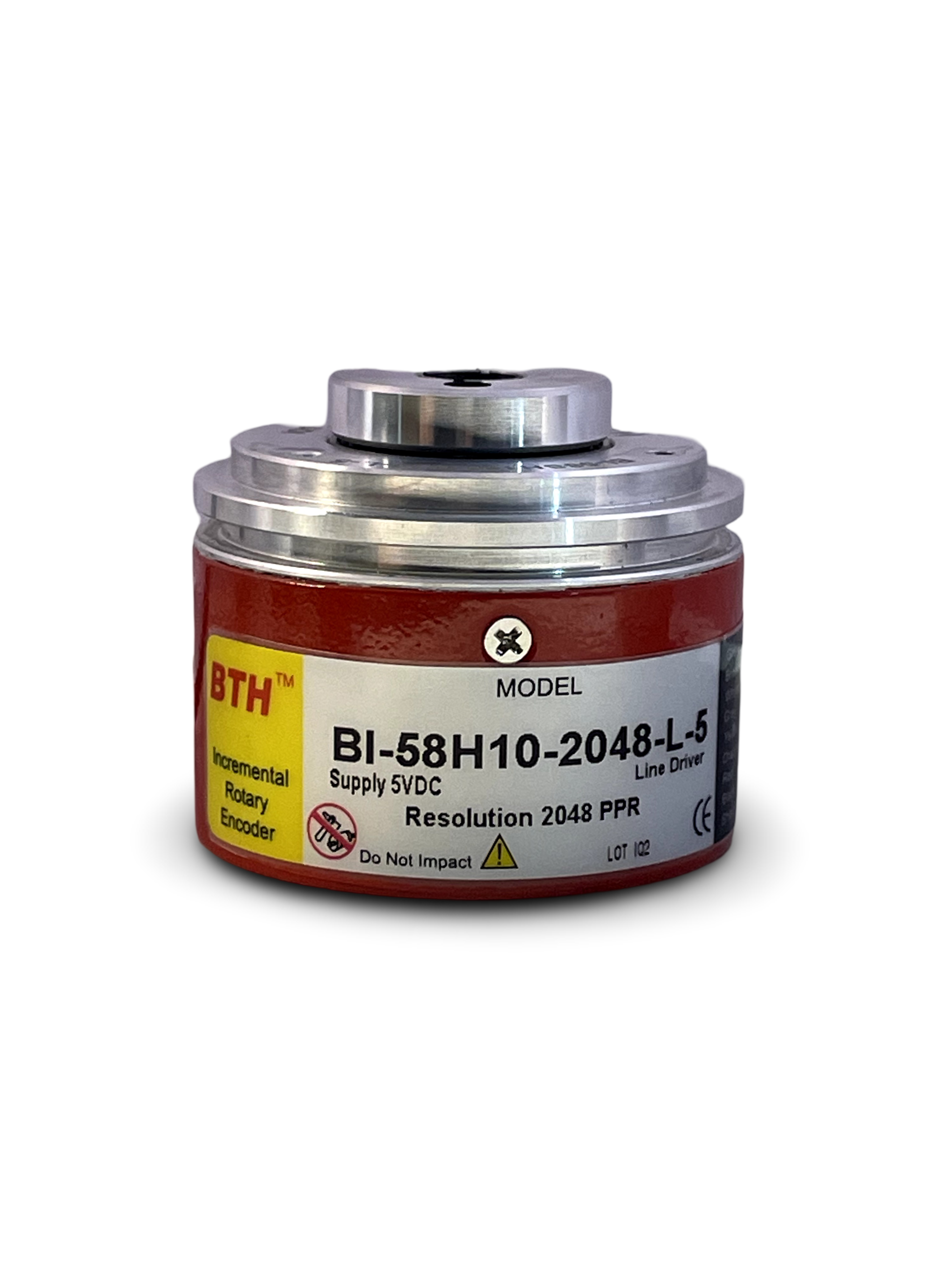

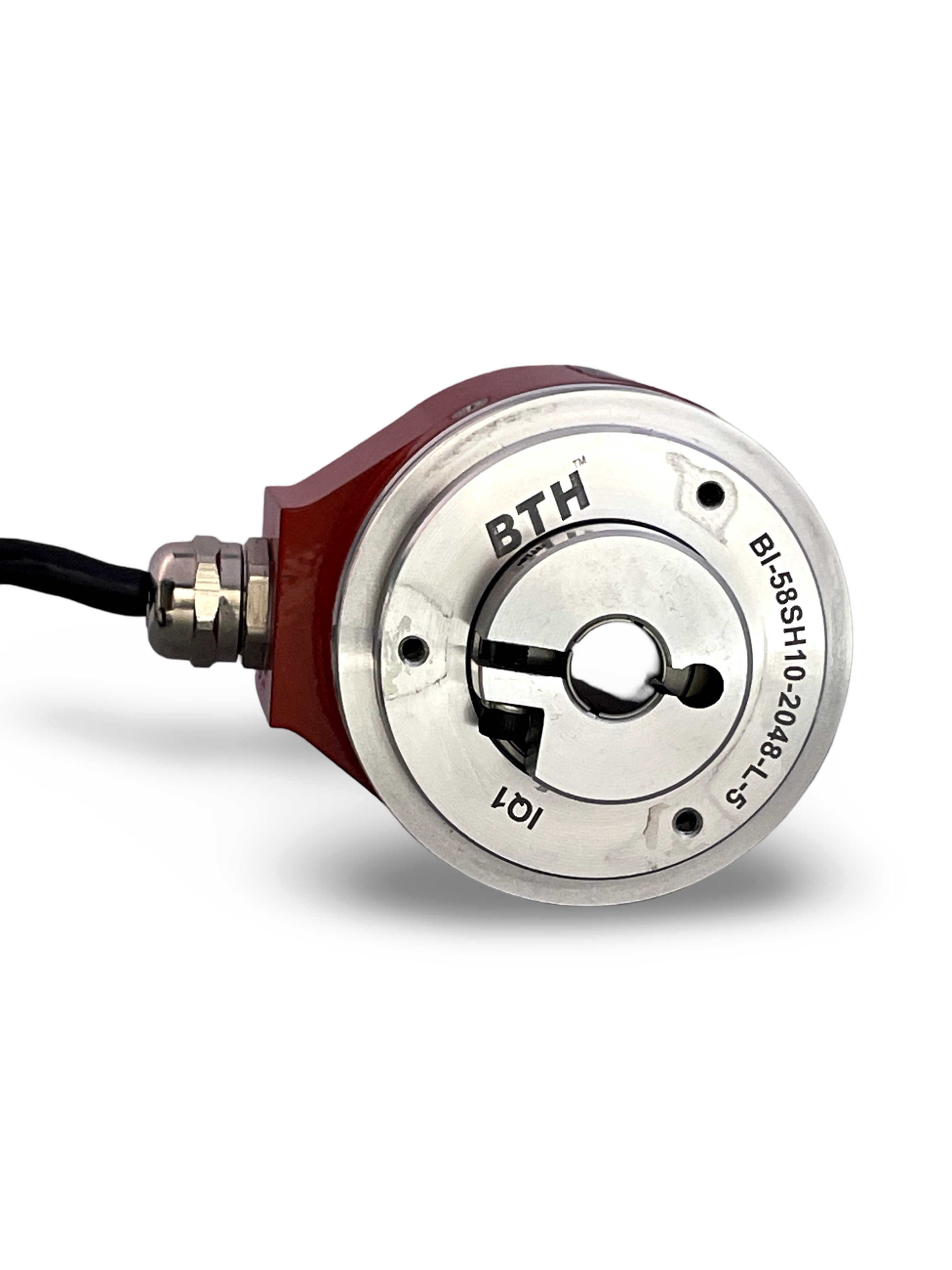

BI-58H10-2048-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 58mm, Hollow Diameter 10mm, PPR 2048, Line Driver, 5V DC
In stock
SKU
BI-58H10-2048-L-5
Special Price
₹8,060.00
Regular Price
₹13,000.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Output Circuit: Line Driver
- Supply Voltage: 5VDC
- Outer Diameter: 58mm
- Hollow Inside Diameter: 10mm
- Pulse Per Revolution (PPR): 2048 PPR
- Max. Speed: 6000RPM
- Max. Speed Continuous: Max. Response Frequency/ Resolution
- Rotor Moment of Inertia: approx. 6 x 10-6 kgm²
- Shock Resistance: 50 m/s², 6ms
- Vibration Resistance: 100 m/s2 , 10...2000Hz
- Starting Torque: <0.05 Nm
- Shaft Material: SS
- Body Material: Aluminum alloy 2A12
- Outer Case Material: Al-alloy
- Disk Material: Glass
- Cable: 2 Mtr. Black shield cable, side entry
- Degree of Protection: IP 64
- Weight: 350g
- Position Deflection of Allowable Shaft: Radial
- Allowable Shaft Load: Radial
- Operating Temperature Range: -30ºC ~ +85ºC (No freezing) at 30% ~ 85% RH
