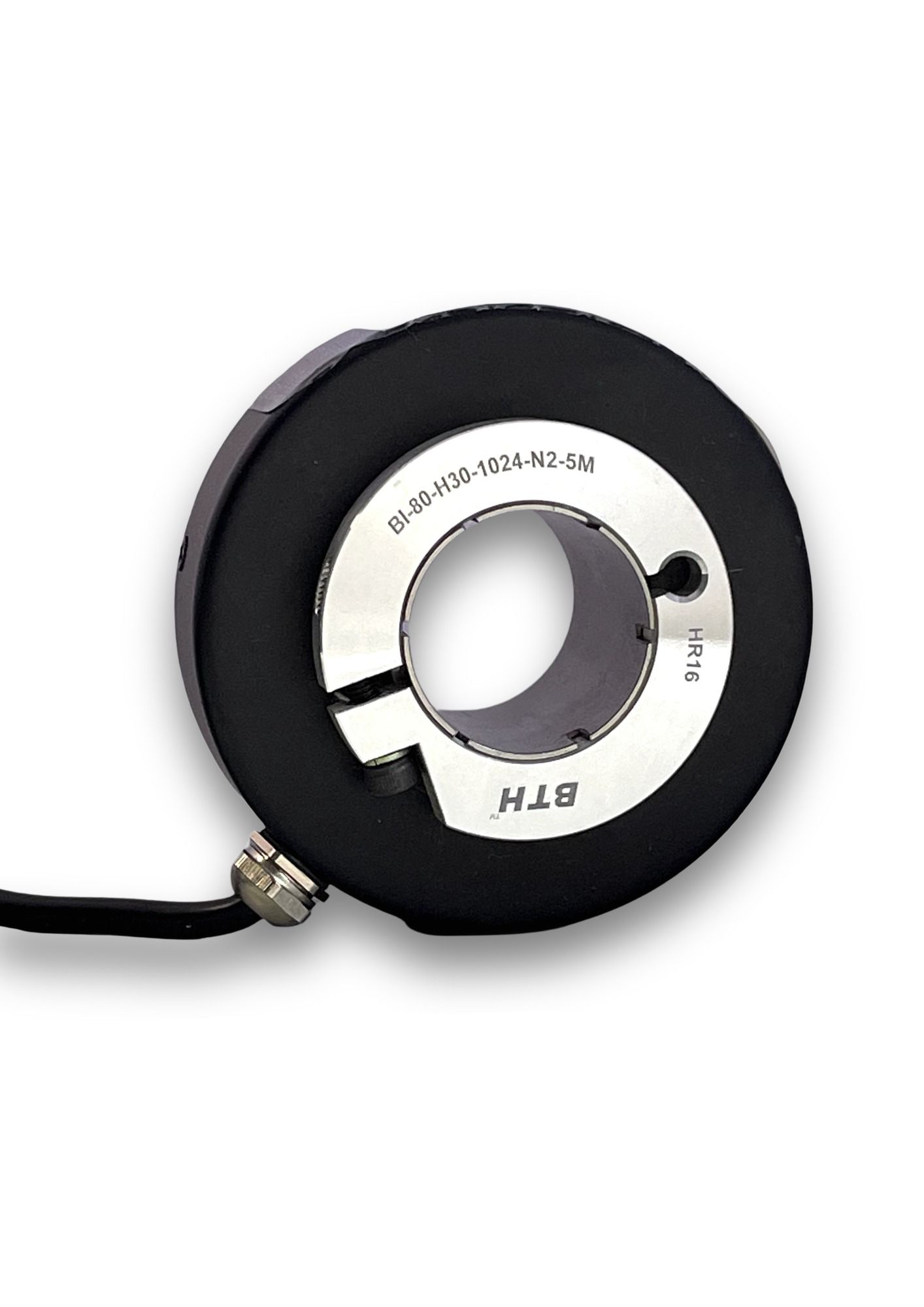

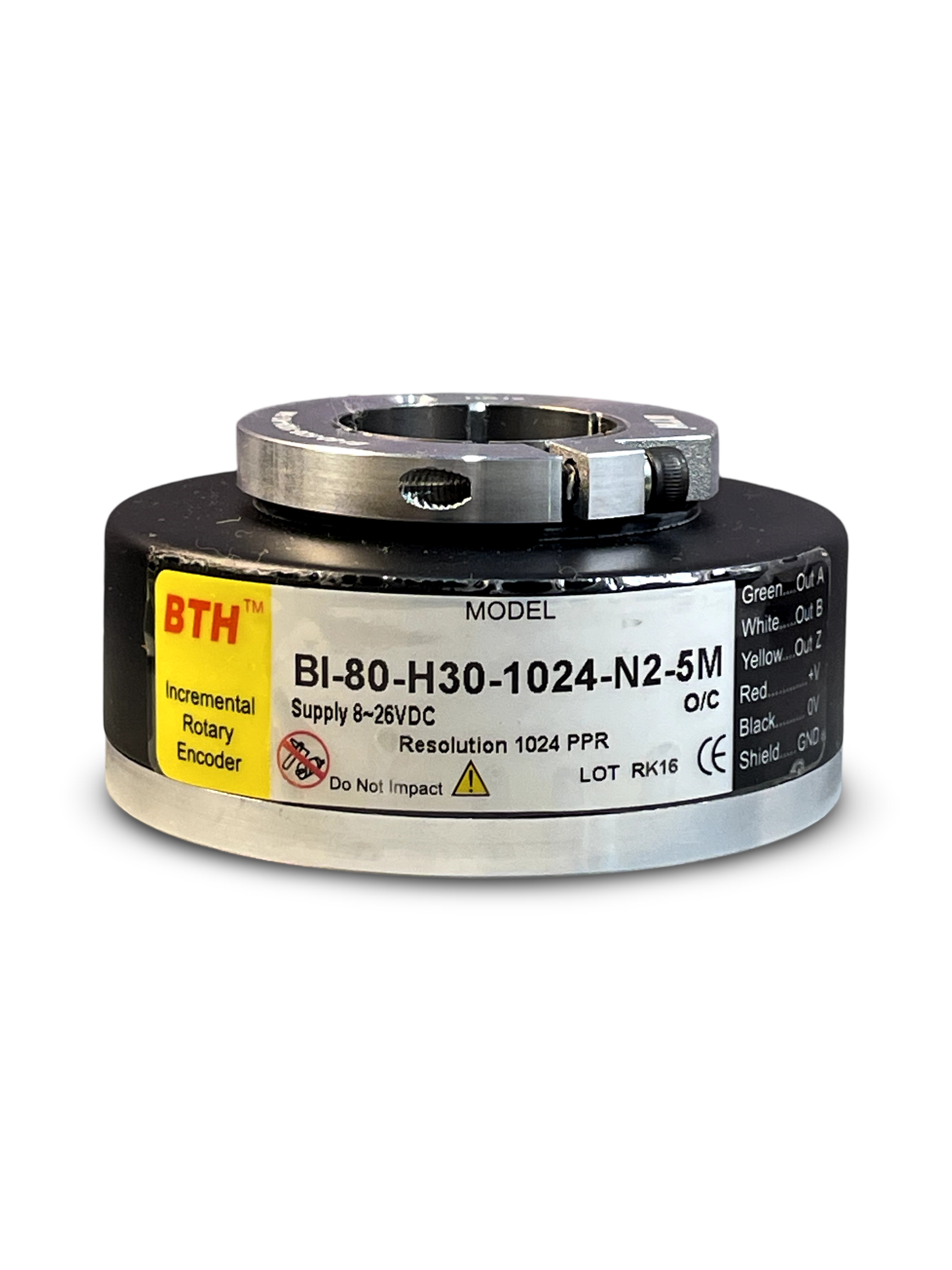

BI-80H30-1024-N2-5M||Incremental Rotary Encoder, Diameter 80mm, Hollow Type, Hollow Diameter 30mm, PPR 1024, Push Pull, 5~24V DC
In stock
SKU
BI-80H30-1024-N2-5M
Special Price
₹9,796.00
Regular Price
₹15,800.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Output Circuit: Push pull
- Supply Voltage: 5~24VDC
- Outer Diameter: 80mm
- Hollow Inside Diameter: 30mm
- Pulse Per Revolution (PPR): 1024 PPR
- Max. Speed: 6000RPM
- Max. Speed Continuous: Max. Response Frequency/ Resolution
- Rotor Moment of Inertia: approx. 6 x 10-6 kgm²
- Shock Resistance: 50 m/s², 6ms
- Vibration Resistance: 100 m/s2 , 10...2000Hz
- Starting Torque: <0.05 Nm
- Shaft Material: SS
- Body Material: Aluminum alloy 2A12
- Outer Case Material: Al-alloy
- Disk Material: Glass
- Cable: 2 Mtr. Black shield cable, side entry
- Degree of Protection: IP 64
- Weight: 350g
- Position Deflection of Allowable Shaft: Radial
- Allowable Shaft Load: Radial
- Operating Temperature Range: -30ºC ~ +85ºC (No freezing) at 30% ~ 85% RH
