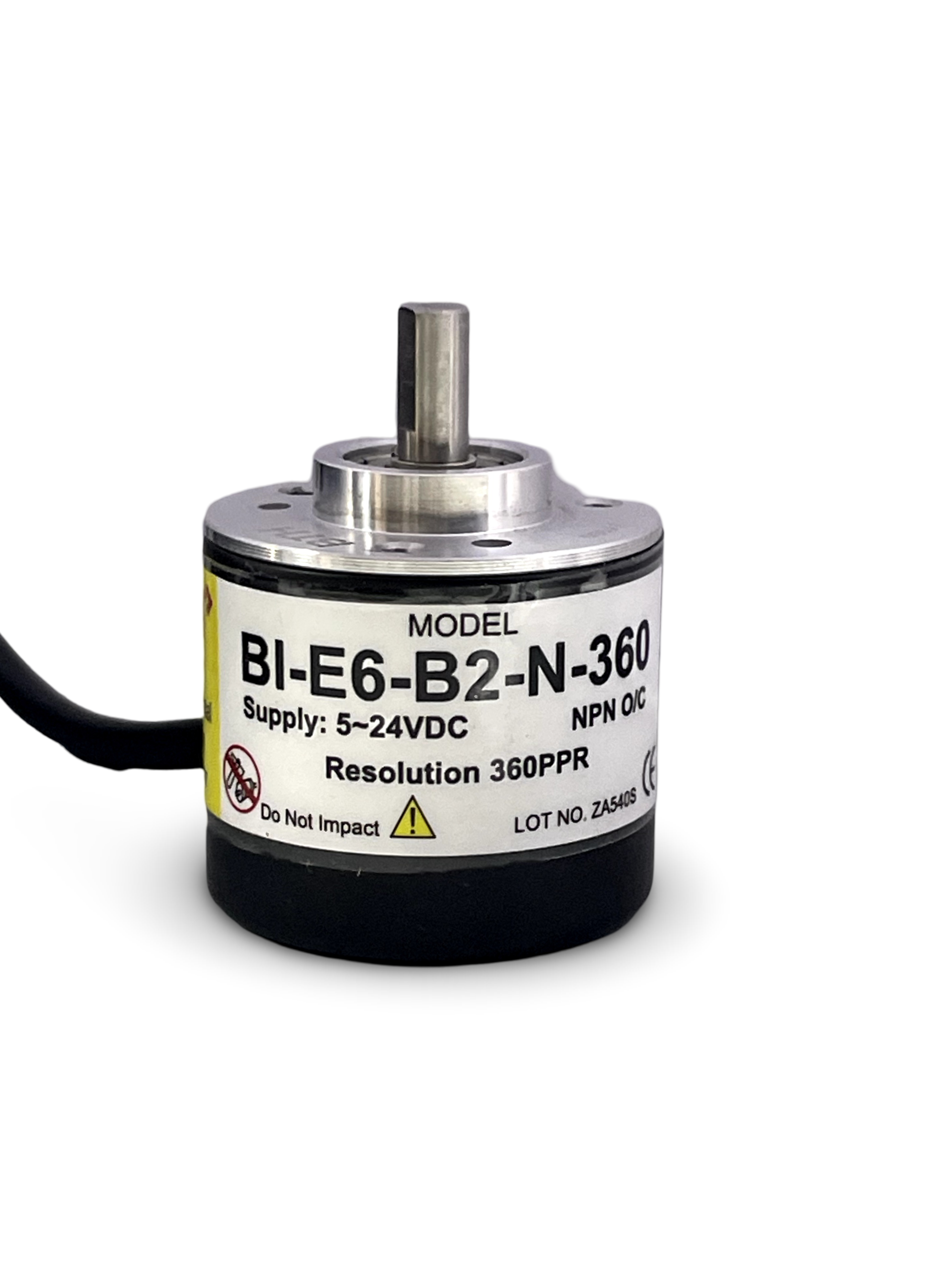

BI-E6-B2-N-360||Incremental Rotary Encoder, Diameter 38mm, Shaft Type, Shaft Diameter 6mm, PPR 360, NPN, 5~24V DC, AB Output

In stock

SKU

BI-E6-B2-N-360

Special Price ₹1,736.00 Regular Price ₹2,800.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Output Circuit: NPN Open Collector
Supply Voltage: 5~24VDC
Outer Diameter: 38mm
Shaft Diameter: 6mm
Output waveform: A & B
Pulse Per Revolution (PPR): 360 PPR
Max. Speed: 6000RPM
Current Requirement: ≤60mA
Rise Time: ≤500 (ns)
Fall Time: ≤100 (ns)
Frequency Response: 0~300kHz
Starting Torque (25ºC):
Max Load Radial: 30N
Max Load Axial: 20N
Rotary Inertia: 4*16-6 kgm²
Cable: 1.5 Mtr. Black Shield Cable, Side Entry
Weight: 135g
Operating Temperature: -20ºC ~ 85ºC
Storage Temperature: -30ºC ~ 90ºC
Relative Humidity: 35% ~ 85% RH no Condensation
Impect Resistance: 50 m/s² (Three times each on x, y, z directions, each time last 6ms)
Vibration Resistance: 20 m/s² (10~200Hz, 2h on x, y, z directions)
Protection Class: IP54
