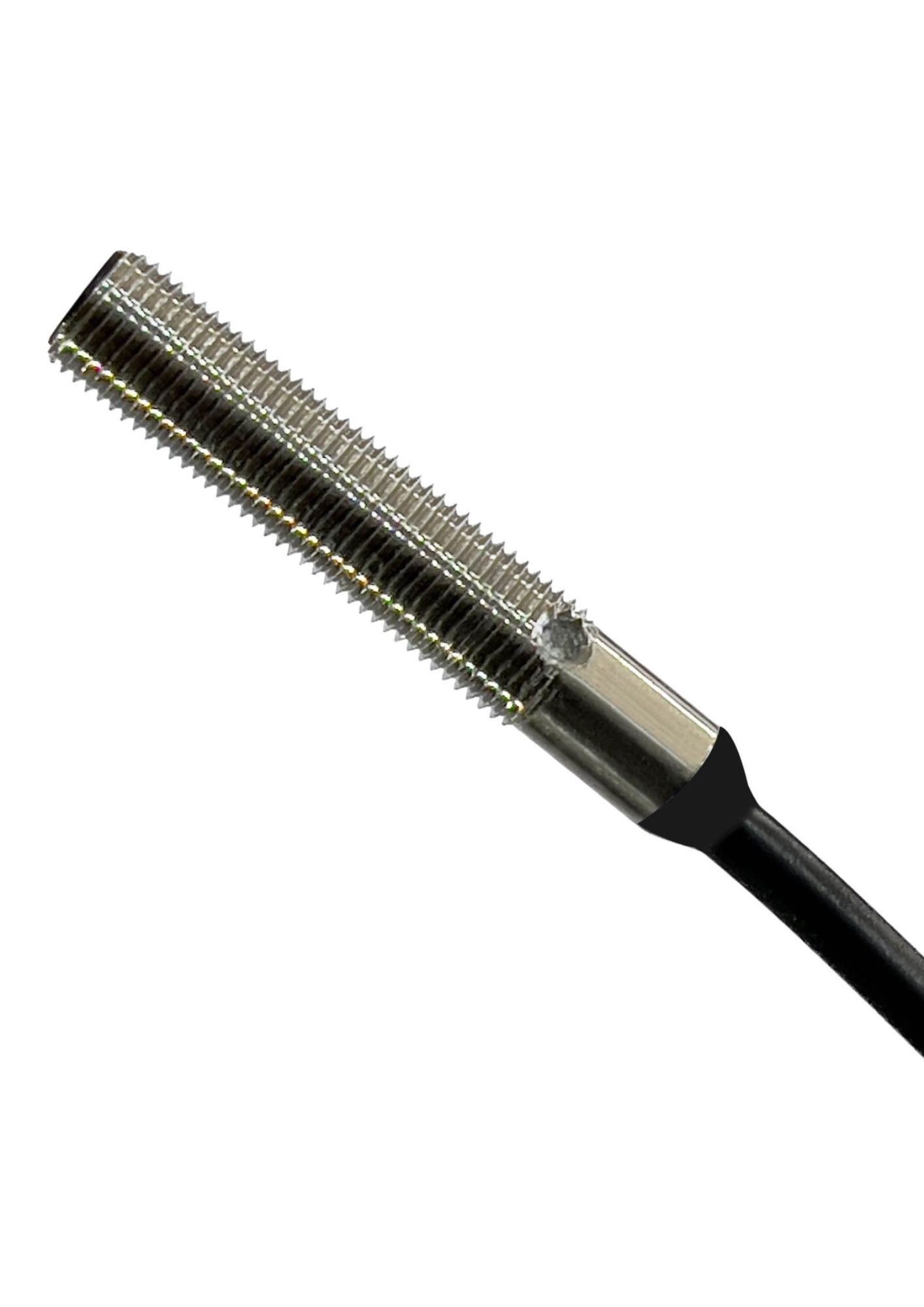

BIR4-NN1F ||Inductive Proximity Sensor, Diameter 4mm, Sensing Range 1mm, NPN NO

In stock

SKU

BIR4-NN1F

Special Price ₹2,015.00 Regular Price ₹3,100.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: NPN Make (NO)
Detecting Distance: 1mm
Switching Hysteresis: Max. 15% of Sr
Standard Detecting Target: 4 x 4 x 1mm (Iron)
Setting Distance: 1mm ± 10%
Power Supply (Operating Voltage): 10-30VDC
Current Consumption: <10mA
Response Frequency: 2 kHz
Residual Voltage: Max. 1.5V
Temperature Drift: ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC
Control Output: 150mA
Connection Type: Cable 2mtr.
Housing Type: Cylindrical Threaded(.5), 4mm dia, length 25mm
Housing Material: Cylinder-Stainless Steel, Sensing face-POM
Vibration & Shock: 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours 500m/s² (50G) in X, Y,Z direction for 3 times
Indicator: Operating indicator (RED LED)
Ambient Temperature: –25 to +70ºC (non–freezing condition)
Storage Temperature: –30 to +80ºC (non-freezing condition)
Ambient Humidity: 35 to 95% RH
Protection Circuit: Surge protection circuit, Overload & short circuit protection
Protection: IP67
Weight: Approx. 32g
Approval: CE
