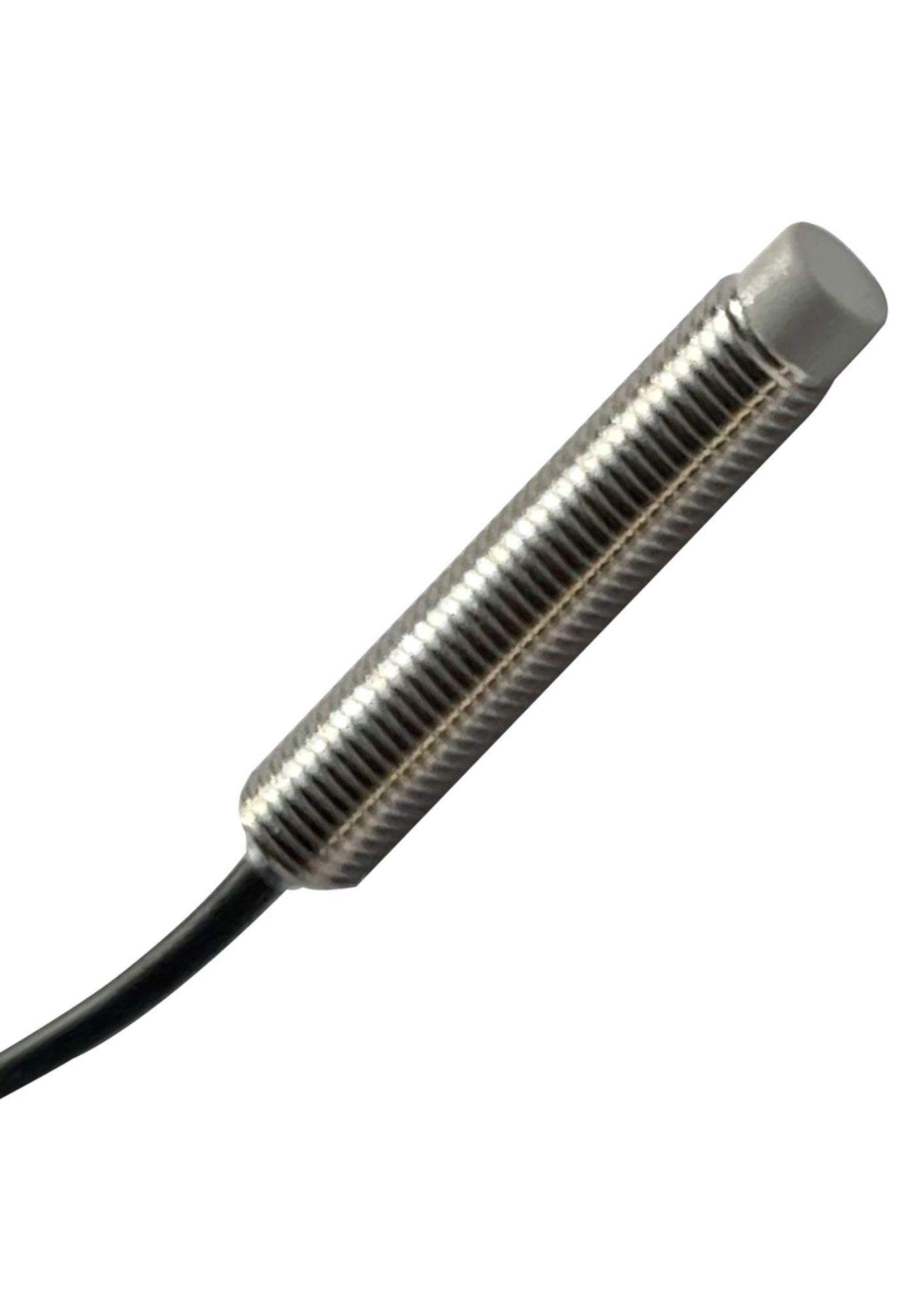

BIR8-NN6NL ||Long Range Inductive Proximity Sensor, Diameter 8mm, Sensing Range 6mm, NPN NO

In stock

SKU

BIR8-NN6NL

Special Price ₹1,820.00 Regular Price ₹2,800.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: NPN Make (NO)
Size: M8
Detecting Distance: 6mm
Standard sensing object: 8 x 8 x 1mm (Iron)
Detectable object: Ferrous metal 100%, The sensing distance decreases with non-ferrous metal i.e. stainless steel 60%, brass 50%, aluminum 40%, copper 30%
Response Frequency: 1 kHz
Power Supply (Operating Voltage): 12 to 24 VDC (10 to 30 VDC), ripple (p-p)
Load current: 150mA
No load: <10mA
Leakage current: <0.01mA
Residual Voltage: <1.5V
Indicator: Operating LED indicator
Protection Circuit: Surge protection circuit, Over current, reverse polarity protection
Operating temperature: -25ºC ~ 70ºC
Insulation resistance: 50MΩ min (at 500VDC) between current-carrying parts and case
Dielectric strength: 1000VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Degree of protection: IP67
Connection method: Pre-wired models - standard cable length 2mtr.
Material: Sensing surface - PBT, Case & Clamping Nuts - Nickle plated brass
Weight: Approx. 40g

No specifications available for this product.
