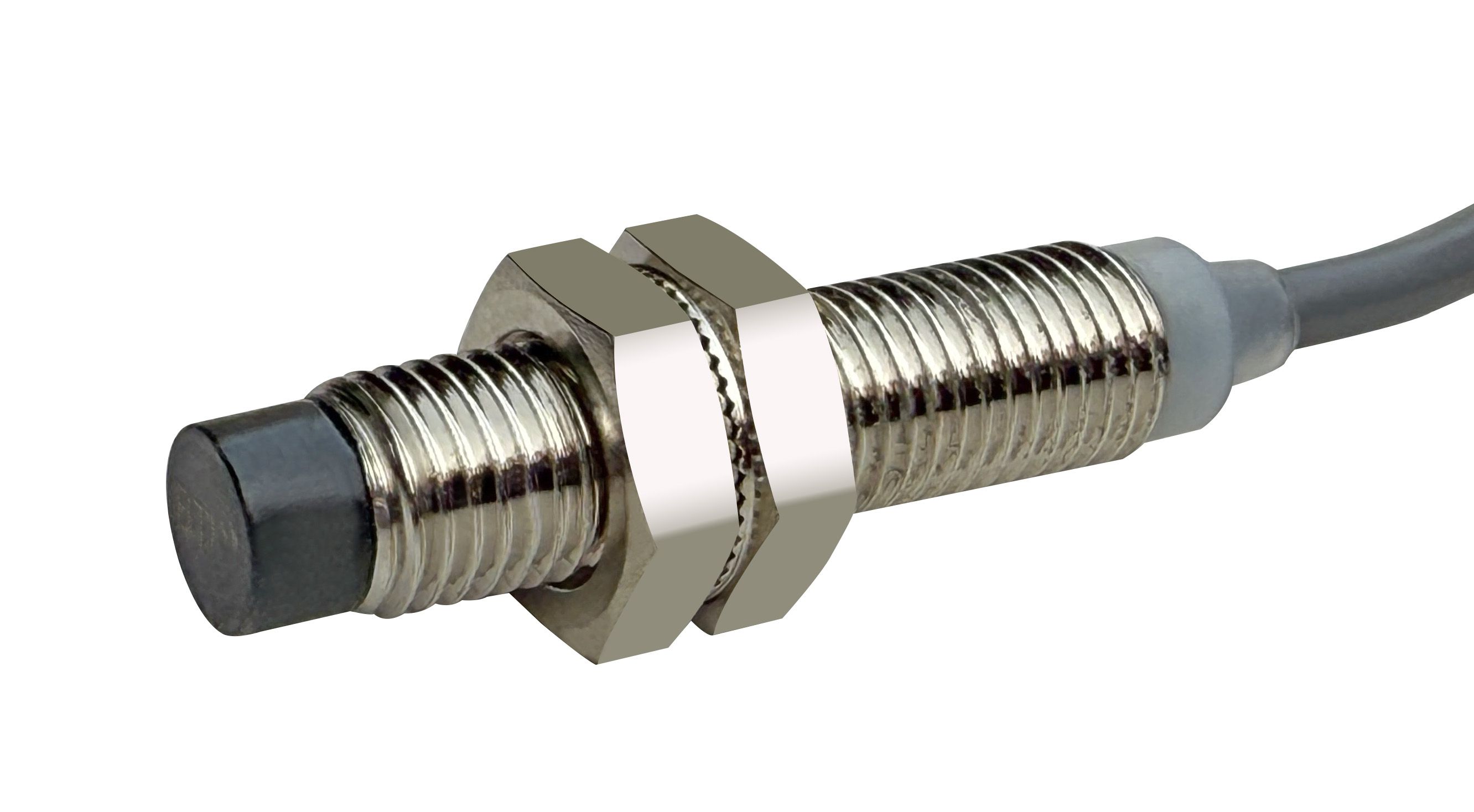

BIRD8-NN4N||Long Range BIRD Series Inductive Proximity Sensor, Diameter 8mm, Sensing Range 4mm, Non Flush, NPN NO

In stock

SKU

BIRD8-NN4N

Special Price ₹780.00 Regular Price ₹1,200.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: NPN NO
Outer Diameter: ⌀8mm
Sensing Distance: 4mm
Response frequency: 800Hz
Mounting: Non Flush Mountable
Hysteresis: Within 1%-10% of sensing distance
Standard Detecting Target: 8×8×1mm (Iron)
Supply voltage : 10~30V DC
No load current : max 12mA
Voltage Drop: max 1.5V DC
Temperature Influence: When at –25ºC ~ 65ºC sensing distance within ±15% of sensing distance at rated voltage
Output Current: 200mA
Insulation Resistance: 50MΩ min. (at 500VDC)
Dielectric Strength: 1000VAC, 50/60Hz for 1min
Vibration Resistance: Withstand
Shock Resistance: Withstand
Indicator: 360º Visible (Yellow LED)
Ambient temperature: –25ºC to +70ºC (non-freezing condition) Storage
Ambient Humidity: 35% to 95%RH
Protection Circuit: Reverse polarity protection, Surge protection circuit, Overload & short circuit protection
Protection: IP67
Connection: Pre wired 2mtr. PVC cable
Housing Material: Brass with nickle coated, Sensing face & Indication window ABS heat resistance ABS
Approval: CE
