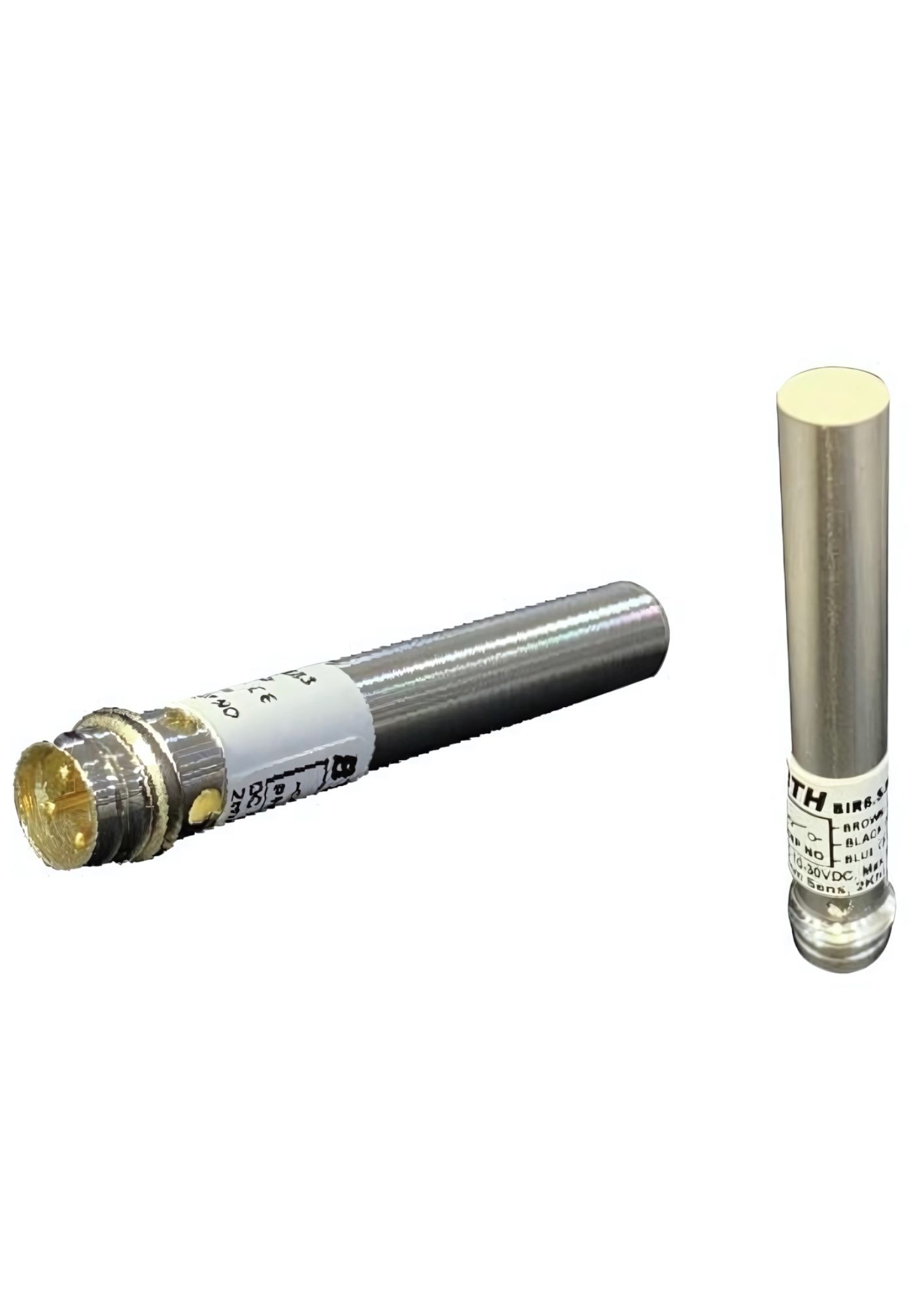

BIT6.5-PN2FL-CM83 ||3Pin, Cylindrical Smooth Connector Type Inductive Proximity Sensor, Diameter 6.5mm, Sensing Range 2mm, PNP NO
BIT6.5-PN2FL-CM83 ||3Pin, Cylindrical Smooth Connector Type Inductive Proximity Sensor, Diameter 6.5mm, Sensing Range 2mm, PNP NO

BIT6.5-PN2FL-CM83 ||3Pin, Cylindrical Smooth Connector Type Inductive Proximity Sensor, Diameter 6.5mm, Sensing Range 2mm, PNP NO

Be the first to review this product
In stock
SKU
BIT6.5-PN2FL-CM83
Special Price ₹1,007.50 Regular Price ₹1,550.00
(18% GST Extra)
Add to Wish List
  • Reverse power polarity protection.
  • Surge protection function.
  • Over current protection function.
  • Long life cycle and high reliability.
  • Able to check the status of operation by Red LED Indicator.
  • No side sensing.
  • Wide range of applications, for replacement of Micro switch, Limit switch.
  • Water proof front structure by IP 67.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Function: PNP Make (NO)
  • Detecting Distance: 2mm
  • Switching Hysteresis: Max. 15% of Sr
  • Standard Detecting Target: 6.5 x 6.5 x 1mm (Iron)
  • Setting Distance: 2mm ± 10%
  • Power Supply (Operating Voltage): 10-30VDC
  • Current Consumption: <10mA
  • Response Frequency: 2 kHz
  • Residual Voltage: Max. 1.5V
  • Temperature Drift: ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC
  • Control Output: 150mA
  • Connection Type: 3Pin PICO Style Connector
  • Housing Type: Cylindrical Smooth, 6.5mm dia, length 45mm
  • Housing Material: Cylinder - Stainless Steel, Sensing face-POM
  • Vibration & Shock: 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours 500m/s² (50G) in X, Y, Z direction for 3 times
  • Indicator: Operating indicator (RED LED)
  • Ambient Temperature: –25 to +70ºC (non–freezing condition)
  • Storage Temperature: –30 to +80ºC (non-freezing condition)
  • Ambient Humidity: 35 to 95% RH
  • Protection Circuit: Surge protection circuit, Overload & short circuit protection
  • Protection: IP67
  • Weight: Approx. 30g
  • Approval: CE
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:BIT6.5-PN2FL-CM83 ||3Pin, Cylindrical Smooth Connector Type Inductive Proximity Sensor, Diameter 6.5mm, Sensing Range 2mm, PNP NO
Your Rating
Downloads
document BIT6.5-PN2FL-CM83-Datasheet (769.80 kB)
