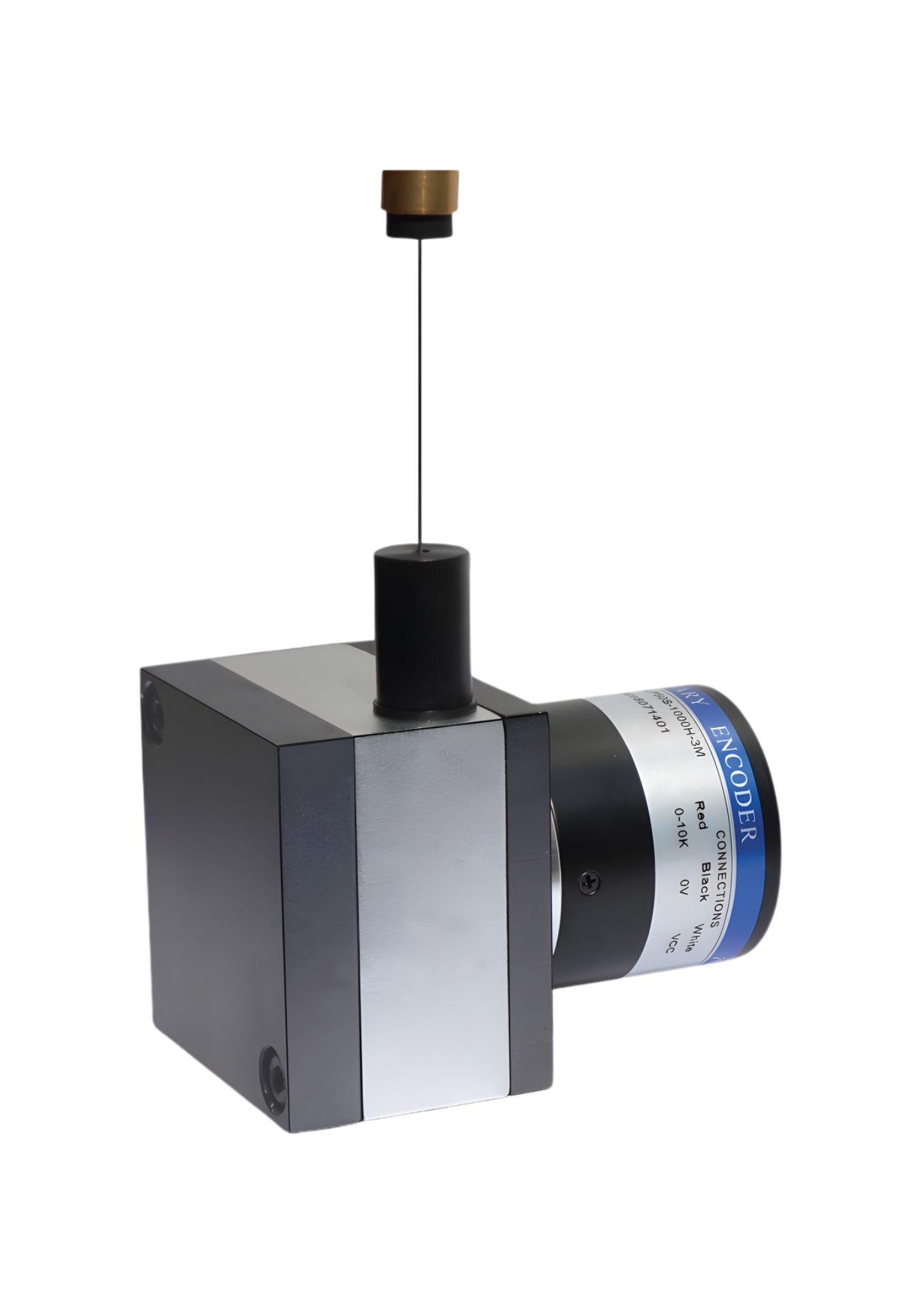

BLP50S-1000F-3M | Draw Wire Encoder, 1000mm measuring length, Output 4-20mAmp

In stock

SKU

BLP50S-1000F-3M

Special Price ₹9,300.00 Regular Price ₹15,000.00

(18% GST Extra)

Qty

Add to Wish List

Fast and easy encoder mounting
Wire length options
Linearity ±0.05% of full range (with encoder)
Long life cycle and high reliability
Extremely robust construction
Wide range of applications – Robotics, Extrusion presses, Textile machinery, Control gate positioning, Theater stages, Elevators, Gantries, Boom cranes, Forklift booms

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

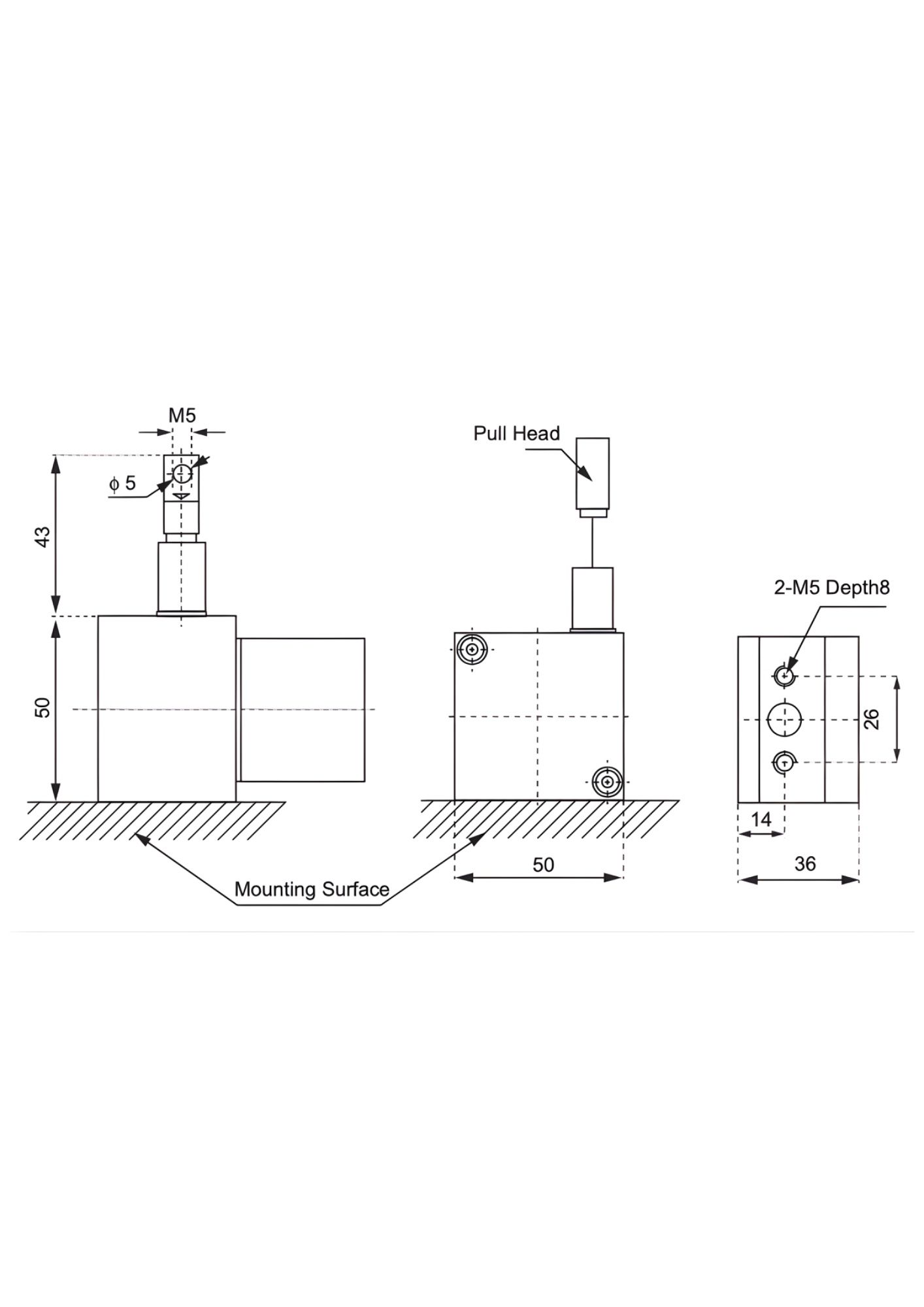

Box size: 50 × 50 mm
Max. measuring: 1000 mm Max.

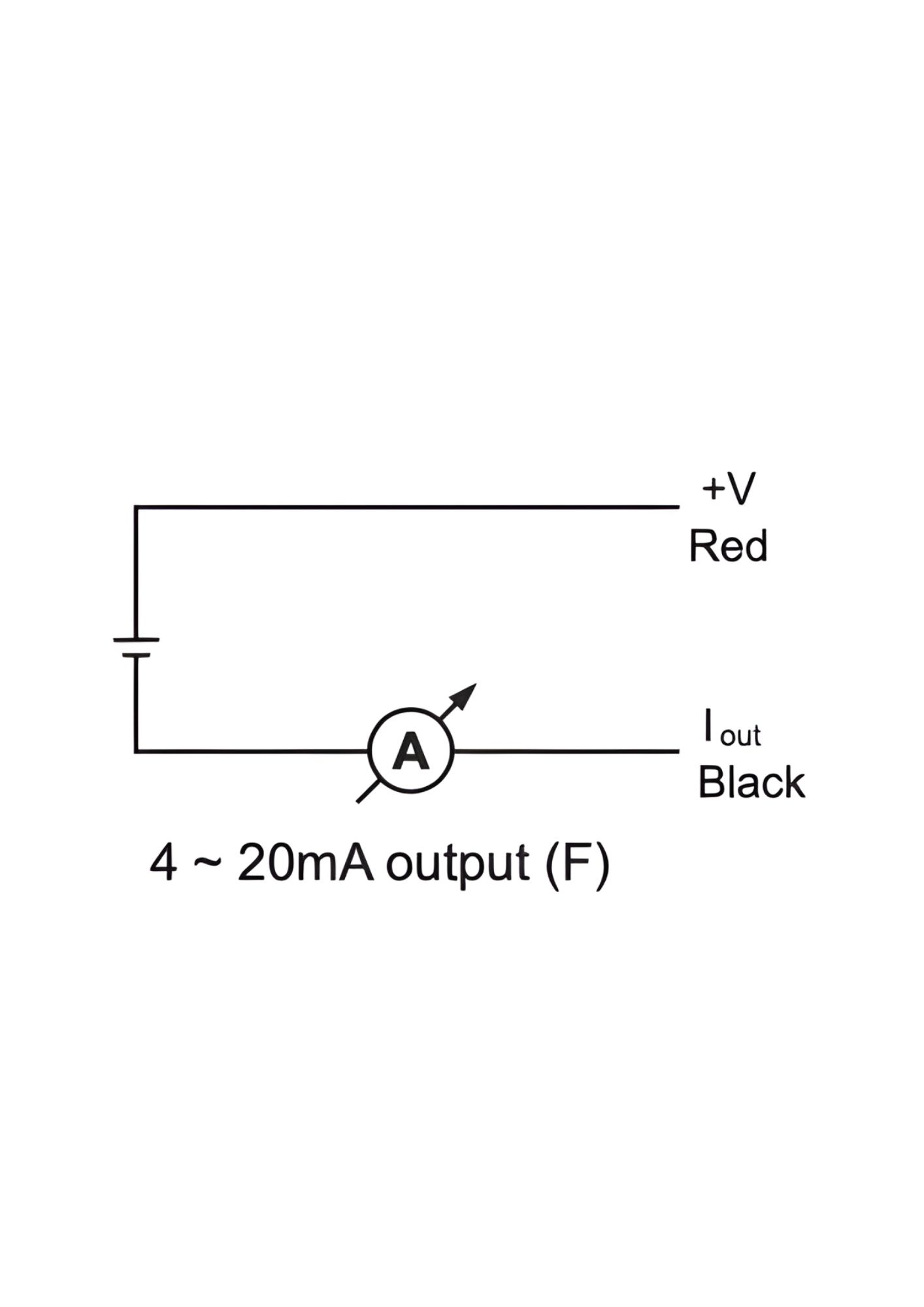

Output: 4–20 mA (F), 0–10K (H), 0–10 V (E)
Operating voltage: 4–20 mADC (8–30 VDC), 0–10K (0 V), 0–10 V (12–24 VDC)
Wire rope: 0.6 mm high flexible plastic coated
Wire retraction force: Approx. 1 N min.
Wire extension force: Approx. 2 N max.
Linear accuracy: 0.1% ~ 0.05% FS
Repeatability accuracy: 0.01%
Life: > 10 million times
Temperature range: –30°C to 90°C (non-freezing conditions)
Vibration resistance: 10–1500 Hz, 10 g
Protection: IP54
Housing material: Aluminium alloy, oxidized surface treatment for wear and corrosion prevention

No specifications available for this product.
