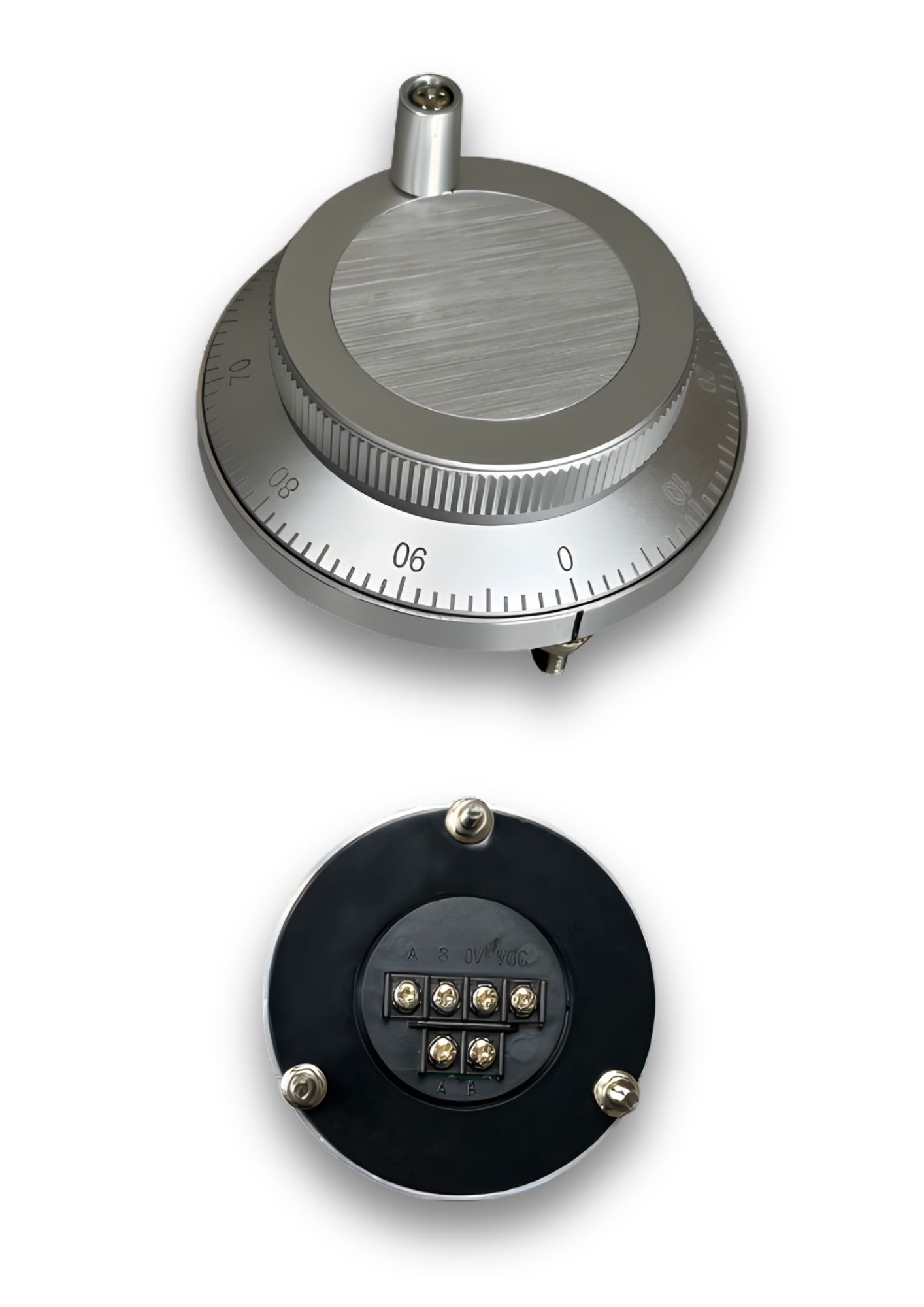

BNH80.1-1L-100B | Hand wheel encoder for CNC - manual pulse input
In stock
SKU
BNH80.1-1L-100B
Special Price
₹4,650.00
Regular Price
₹7,500.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
Electrical Specification
- Output circuit: L (Line driver)
- Supply voltage DC (V): 5 ± 0.25
- Current requirement (mA): ≤100
- Output voltage VH (V): >3.5
- Output voltage VL (V): ≤0.7
- Rise time (ns): ≤200
- Fall time (ns): ≤200
- Frequency response (kHz): 0~100
Environmental Specification
- Max. speed: 600 г/min
- Operating temperature range: -10°C ~ 60°C
- Storage temperature: -20°C ~ 70°C

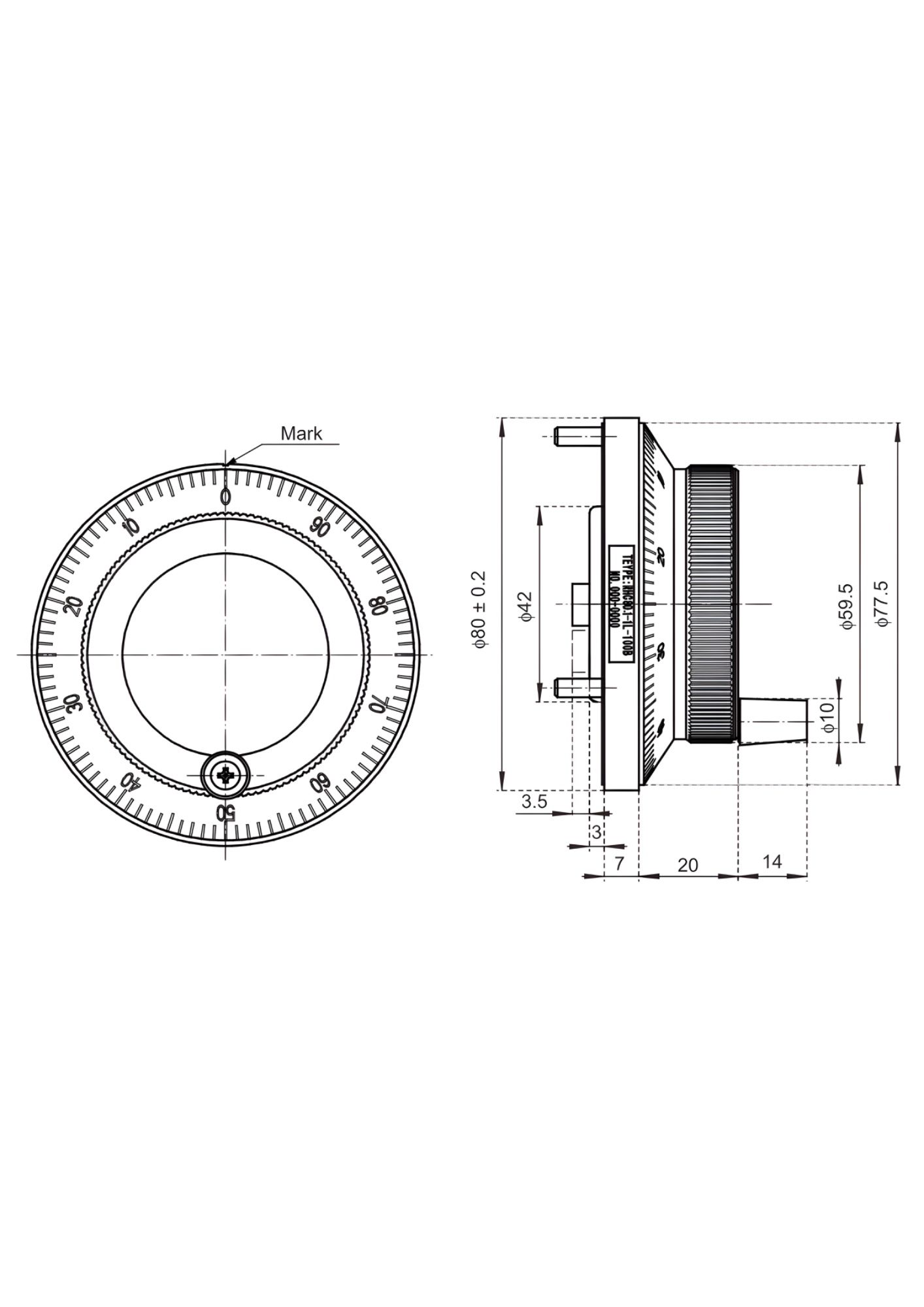

- Size: 80mm
No specifications available for this product.
