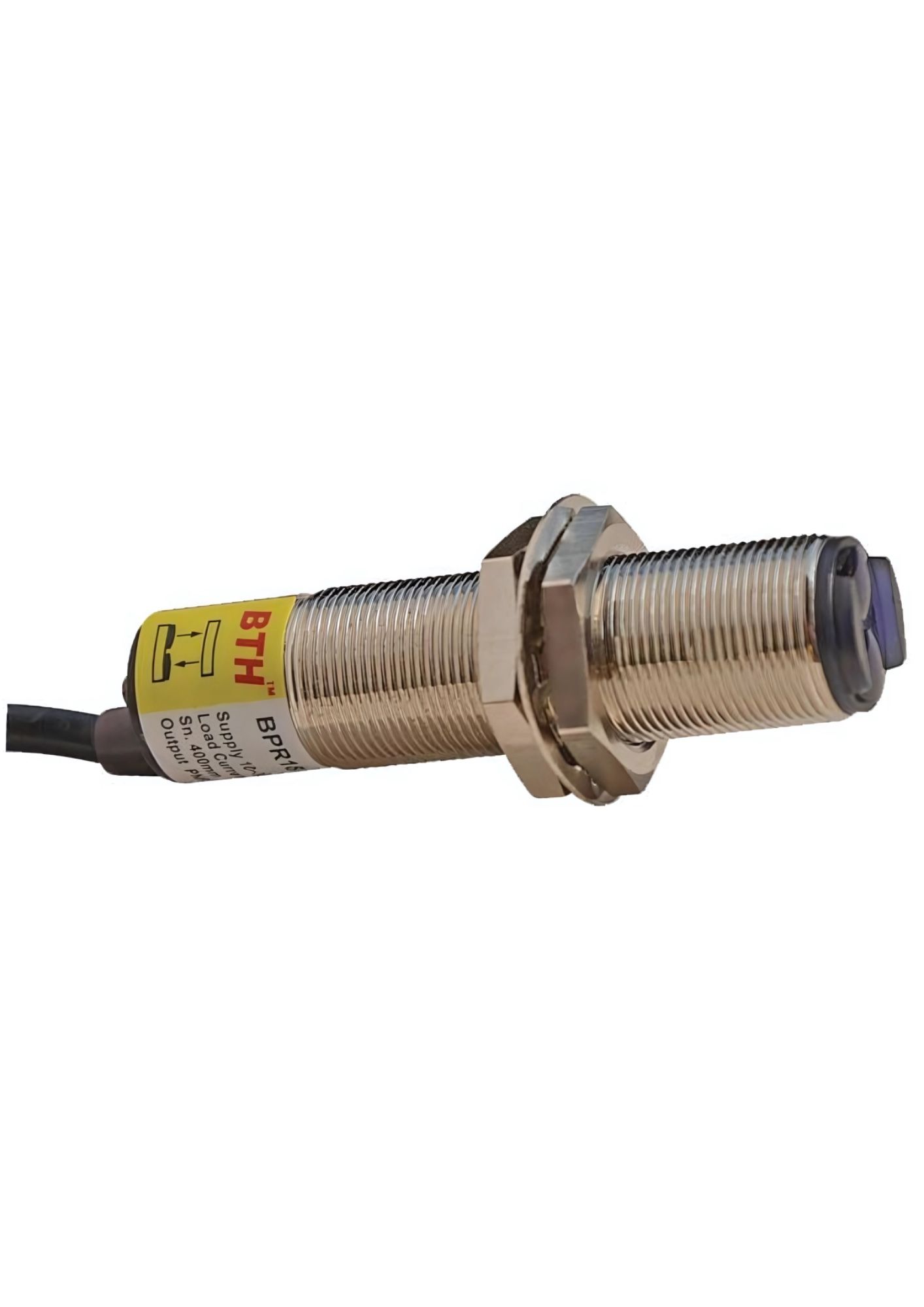

BPR18-PK400F||Diffuse Photo Sensor, Diameter 18mm, Sensing range 400mm, PNP

BPR18-PK400F||Diffuse Photo Sensor, Diameter 18mm, Sensing range 400mm, PNP

BPR18-PK400F||Diffuse Photo Sensor, Diameter 18mm, Sensing range 400mm, PNP

Be the first to review this product

In stock

SKU

BPR18-PK400F

Special Price ₹1,462.50 Regular Price ₹2,250.00

(18% GST Extra)

Qty

Add to Wish List

Threaded cylindrical Photoelectric sensor
Short-circuit protection and reverse polarity protection
Sensitivity adjuster
Standard M18 cylindrical metal tube
Excellent noise immunity and minimal influence from ambient light
Light ON, Dark ON switchable by control wire

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Output Mode: PNP
Sensing Distance: 400mm
Emitting Light: Infrared LED 875 nm
Operating Voltage: 10~30VDC
Current Consumption: <30 mA Max. (white paper 100x100mm)
Load Current: 200ma Max. at 24VDC
Operation Mode: NO (Dark on) / NC (Light on) by the wire Selection
Response Time: 1 ms Max.
Insulation resistance: 20MΩ min. (DC500V)
Voltage With Standability: AC1000V 60Hz for 60 Sec.
Operating Temperature: -20°C ~ + 70°C (No freezing allowed)
Ambient Humidity: 35% ~ 85% RH
Protection degree: IP64
Material: Nickel Plated Brass
Wiring Method: Pre-wired Ø4.2 x 2 M / 4-wires
Weight: Approx. 105g
