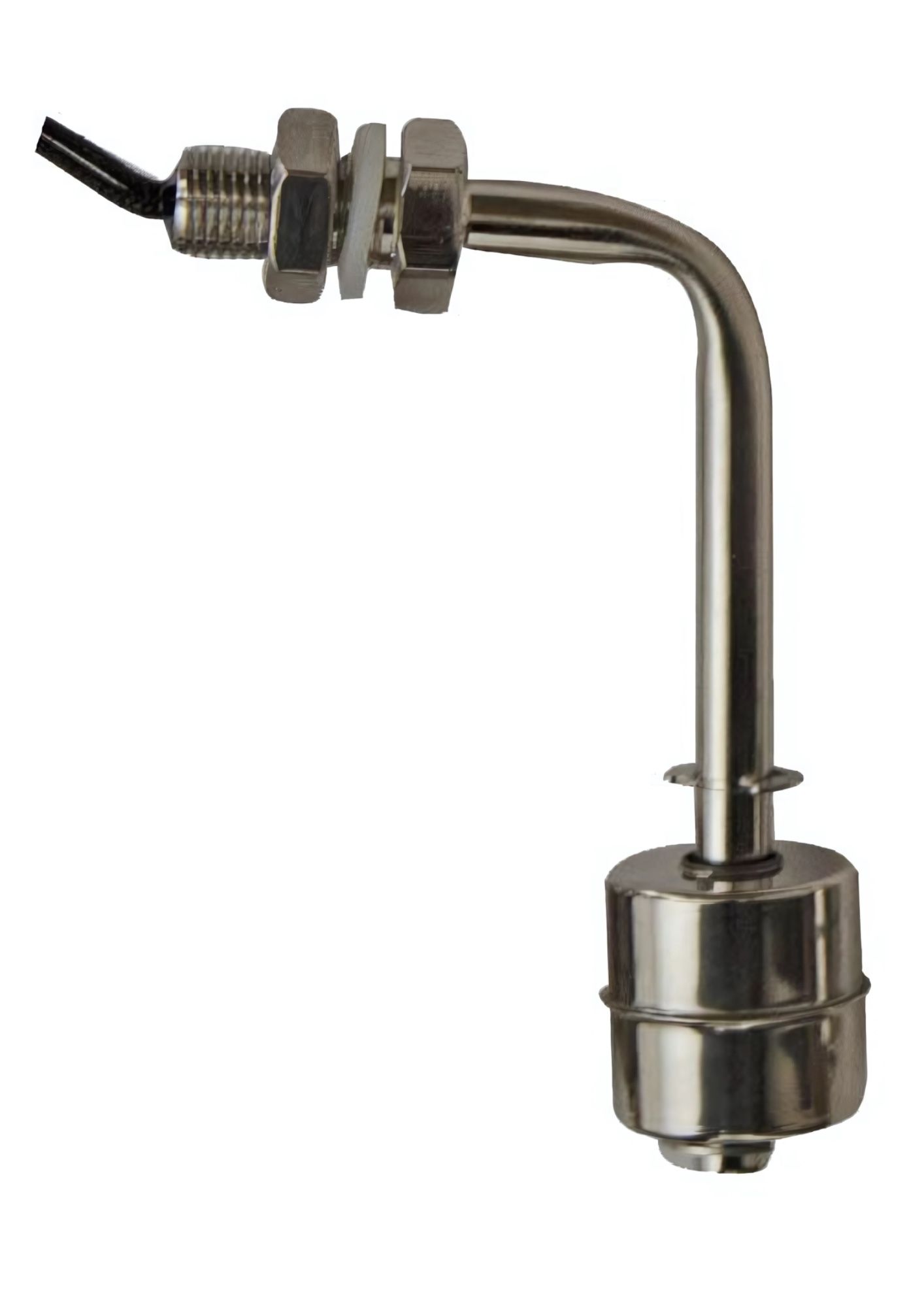

PSAZ-100-1-2||100mm Bent Level Sensor One Point One Ball SS Body

PSAZ-100-1-2||100mm Bent Level Sensor One Point One Ball SS Body

PSAZ-100-1-2||100mm Bent Level Sensor One Point One Ball SS Body

Be the first to review this product

In stock

SKU

PSAZ-100-1-2

Special Price ₹1,170.00 Regular Price ₹1,800.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Blank: SS304
Float: SS304 (Float Ball 2828)
Float Body: SS304
Washer: Transparent silicone material
Wire: UL3122 24AWG, black wire
Min. Shock Resistance: 30G
Suitable Temperature: -20°C~100°C (Non Freezing)
Min. Vibration: 30G (10~50Hz)
Humidity: 95% RH (80°C)
Waterproof: (Float Ball) 6% (1000hr)
For: Liquid
Insulation resistance: ≥ 100MΩ
Contact resistance: ≤ 0.4Ω
Max. limiting Current: 1.0A
Max. Switching Current: 0.5A
Contact the min. Pressure DC: 250V
Max. Switching Voltage: 100V
Max. Contact Power: 10W
Switch Type: Normally Open (A)
Reed: 10W
Magnet: Ferrite
Resin: Black High Temp. resin
Operation Life: 1*10-6 (DC
