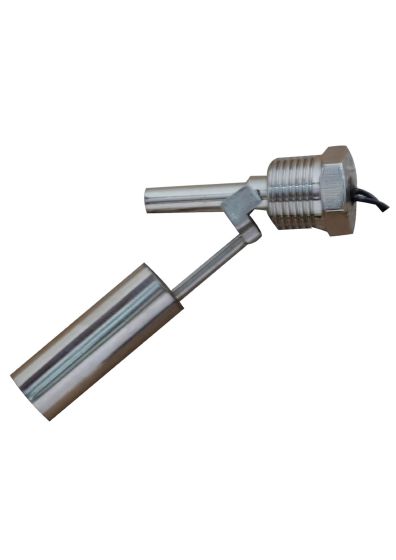

PSAZ-100||100mm BTH Horizontal Level Sensor SS Body
PSAZ-100||100mm BTH Horizontal Level Sensor SS Body

PSAZ-100||100mm BTH Horizontal Level Sensor SS Body

In stock
SKU
PSAZ-100
Special Price ₹1,543.75 Regular Price ₹2,375.00
(18% GST Extra)
Add to Wish List
  • Float Length 100mm
  • Temp. -40°~125°C
  • Contact
  • Float Material SS304
  • UL3122 24AWG, Silicone insulated for high temp. black wire
  • For Liquid
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Float Material: SS 304
  • Float body: SS 304
  • Wire: UL1430 24AWG, black wire
  • Min. Shock Resistance: 30G
  • Suitable Temperature: -20°C~100°C (Non Freezing)
  • Min. Vibration: 30G (10~50Hz)
  • Humidity: 95% RH (80°C)
  • Waterproof: (Float Ball) 6% (1000hr)
  • For: Liquid
  • Insulation resistance: ≥ 100MΩ
  • Contact resistance: ≤ 0.4Ω
  • Max. limiting Current: 1.0A
  • Max. Switching Current: 0.5A
  • Contact the min. Pressure DC: 250V
  • Max. Switching Voltage: 100V
  • Max. Contact Power: 10W
  • Switch Type: Normally Open (A)
  • Reed: 10W
  • Magnet: Ferrite
  • Resin: Black High Temp. resin
  • Operation Life: 1*10-6 (DC
