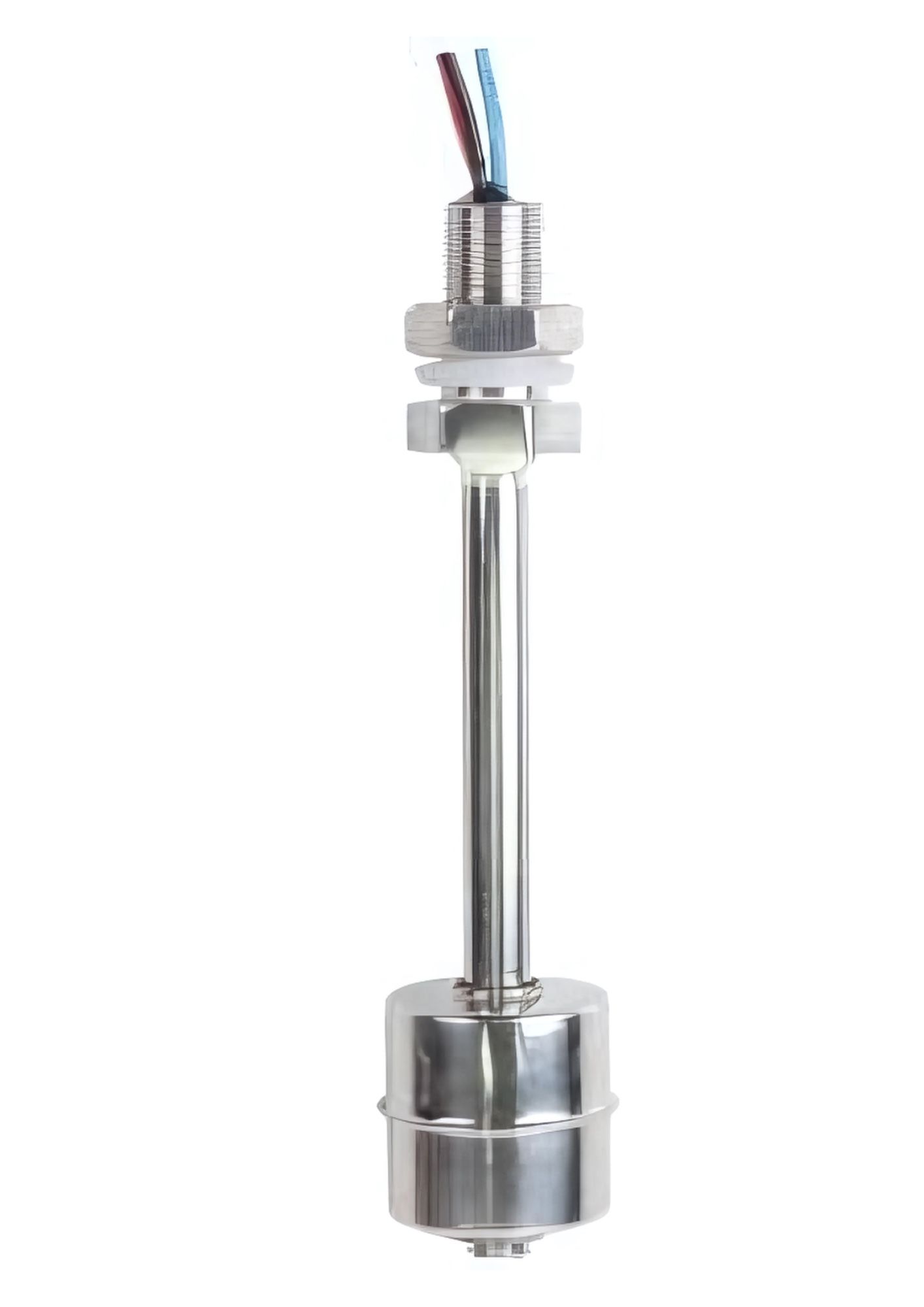

PSC2-100-1-2-S ||100mm Vertical level Sensor, one Ball two Point, SS Body

PSC2-100-1-2-S ||100mm Vertical level Sensor, one Ball two Point, SS Body

PSC2-100-1-2-S ||100mm Vertical level Sensor, one Ball two Point, SS Body

Be the first to review this product

In stock

SKU

PSC2-100-1-2-S

Special Price ₹1,121.25 Regular Price ₹1,725.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Locking ring: SS316
Float Ball: SS316 (Float Ball 2828)
Float stem: SS304
O Ring: Transparent silicone material
Nuts: M12 SS304
Wire: UL3122 24AWG, Silicone insulated for high temp.
Min. Shock Resistance: 30G
Suitable Temperature: -20°C~150°C (Non Freezing)
Min. Vibration: 30G (10~50Hz)
For: Liquid
Insulation resistance: ≥ 100MΩ
Contact resistance: ≤ 0.4Ω
Max. limiting Current: 1.0A
Max. Switching Current: 0.5A
Max. Switching Voltage: 100V
Max. Contact Power: 10W
Switch Type: Normally Open (NO)
Reed: 10W
Magnet: Ferrite
Resin: Black High Temp. resin
Operation Life: 1*10⁶ (DC: 5V, 10mA)
