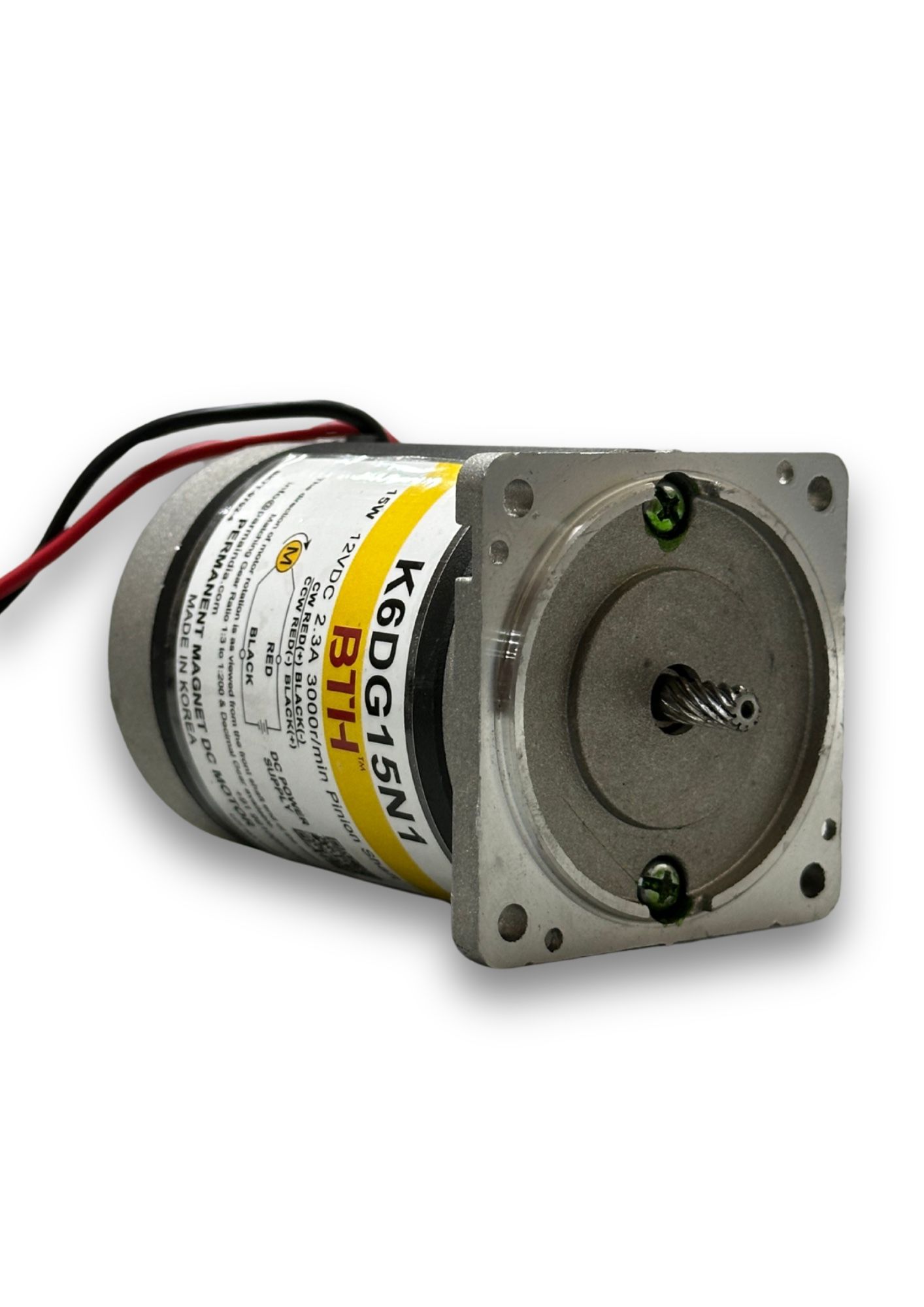

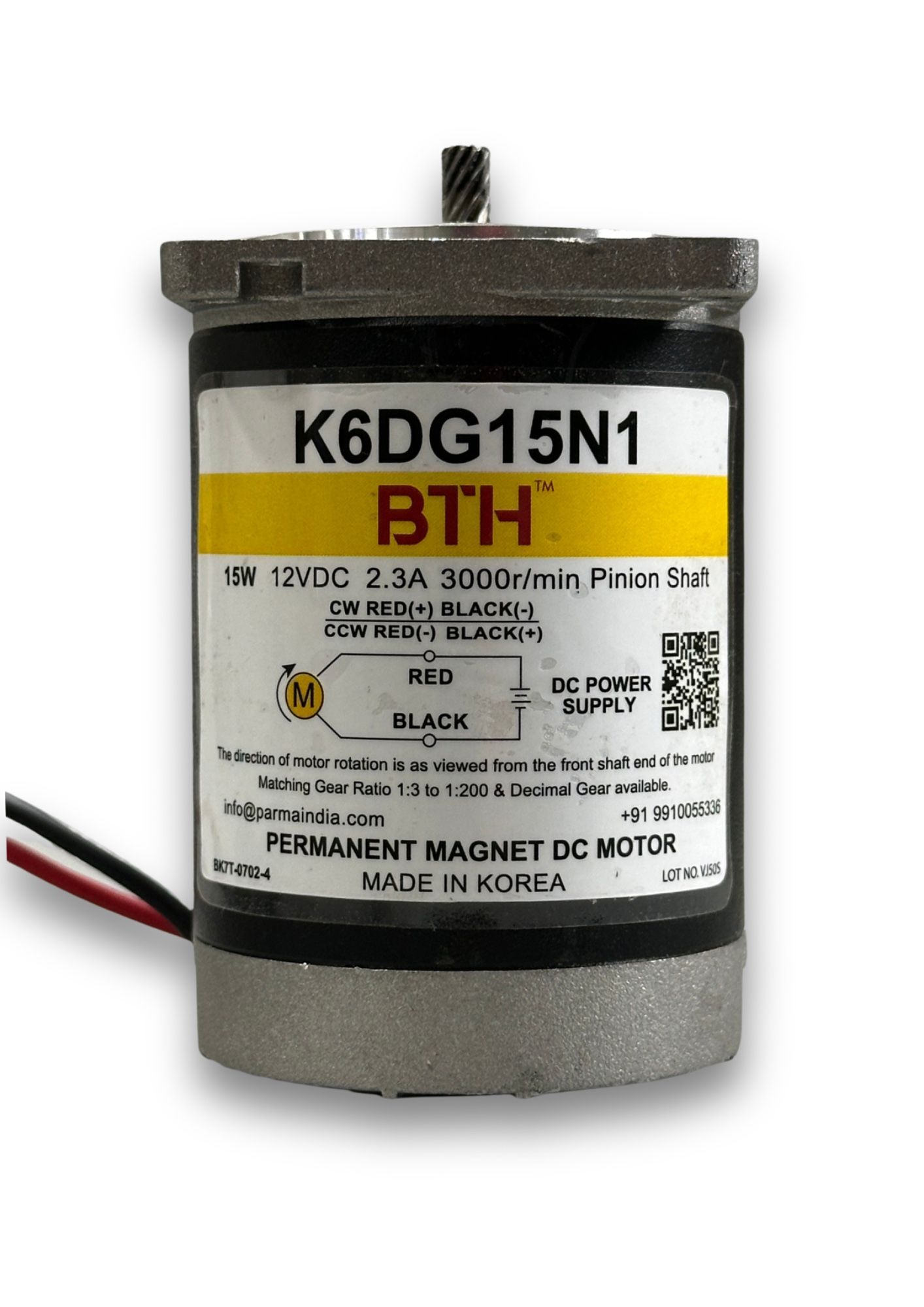

K6DG15N1 ||15 Watt 12V DC Motor, Pinion Shaft, Flange 60mm

K6DG15N1 ||15 Watt 12V DC Motor, Pinion Shaft, Flange 60mm

K6DG15N1 ||15 Watt 12V DC Motor, Pinion Shaft, Flange 60mm

K6DG15N1 ||15 Watt 12V DC Motor, Pinion Shaft, Flange 60mm

Be the first to review this product

In stock

SKU

K6DG15N1

Special Price ₹3,224.00 Regular Price ₹4,960.00

(18% GST Extra)

Qty

Add to Wish List

Permanent Magnet DC Motors are the best solution to motion control
nd power transmission applications where compact size, wide operating
peed range, ability to adapt to arrange of power.
Their ability to produce high torque at low speed make them
uitable substitutes for gearmotors in many application.
Compare to the same size AC motor, it is easy to
ontrol the speeds and changes the rotation direction
ith high efficiency.

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Supply Voltage: 12VDC
(No Load) Speed(r/min): 3250
(No Load) Current(A): 0.6
(Rated Load) Output(W): 15
(Rated Load)Speed(r/min): 3000
(Rated Load) Torque(kgf-cm): 0.49
(Rated Load) Current(A): 1.7
(Stall) Torque(kgf-cm): 3.7
(Stall) Current(A): 13.5
