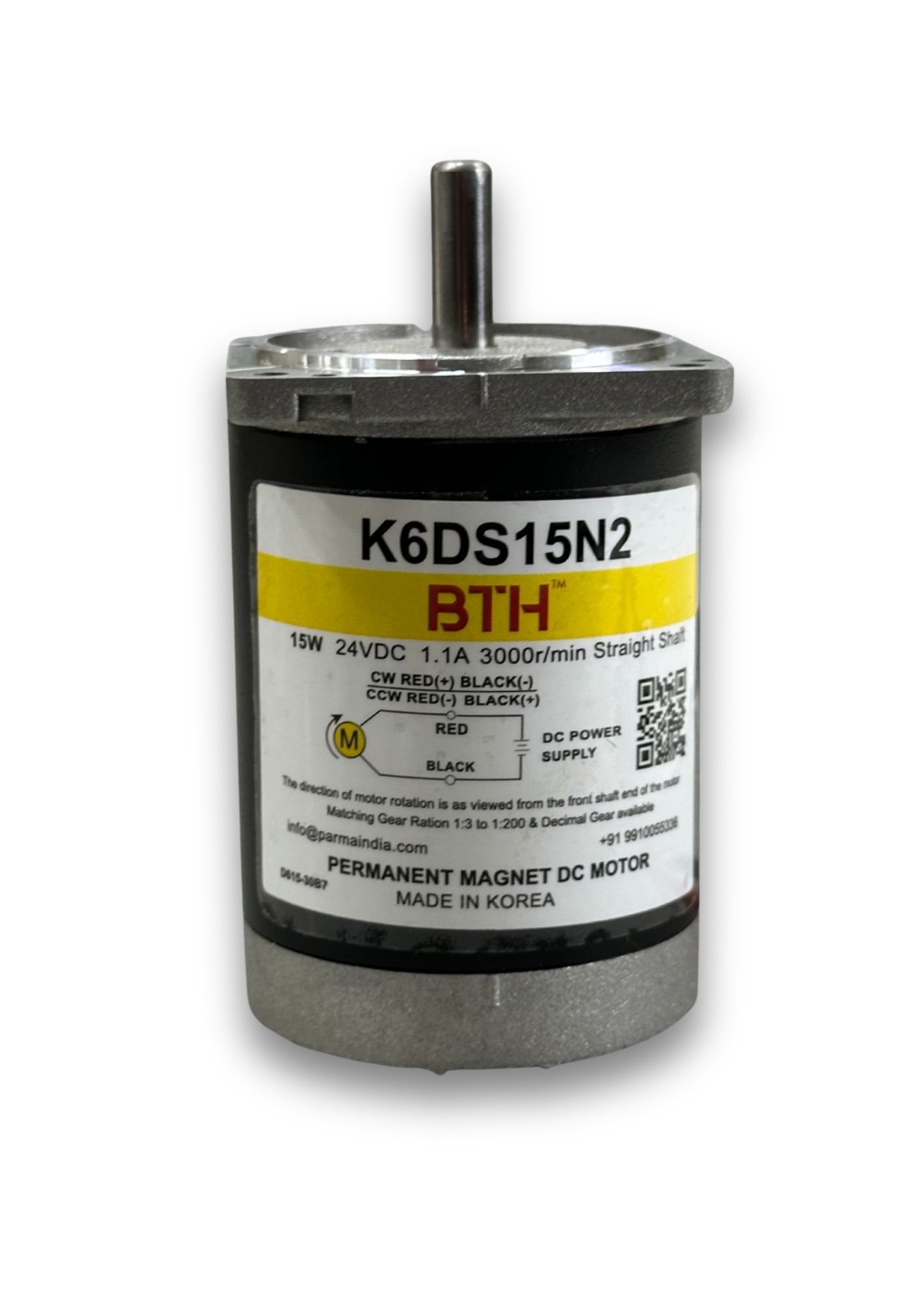

K6DS15N2 ||15 Watt 24V DC Motor, Straight Shaft, Flange 60mm
K6DS15N2 ||15 Watt 24V DC Motor, Straight Shaft, Flange 60mm K6DS15N2 ||15 Watt 24V DC Motor, Straight Shaft, Flange 60mm

K6DS15N2 ||15 Watt 24V DC Motor, Straight Shaft, Flange 60mm

Be the first to review this product
In stock
SKU
K6DS15N2
Special Price ₹3,061.50 Regular Price ₹4,710.00
(18% GST Extra)
Add to Wish List
  • Permanent Magnet DC Motors are the best solution to motion control and power transmission applications where compact size, wide operating speed range, ability to adapt to arrange of power are required.
  • Their ability to produce high torque at low speed makes them suitable substitutes for geared motors in many applications.
  • Compared to the same sized AC motor, it is easy to control the speeds and change the rotation direction with high efficiency.
  • Straight Shaft
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

MODEL K6DS15N2
Voltage (V) 24V
(No Load) Speed(r/min) 3500
(No Load) Current(A) 0.4
(Rated Load) Output(W) 15
(Rated Load)Speed(r/min) 3000
(Rated Load) Torque(kgf-cm) 0.49
(Rated Load) Current(A) 1.2
(Stall) Torque(kgf-cm) 4.1
(Stall) Current(A) 7.7
