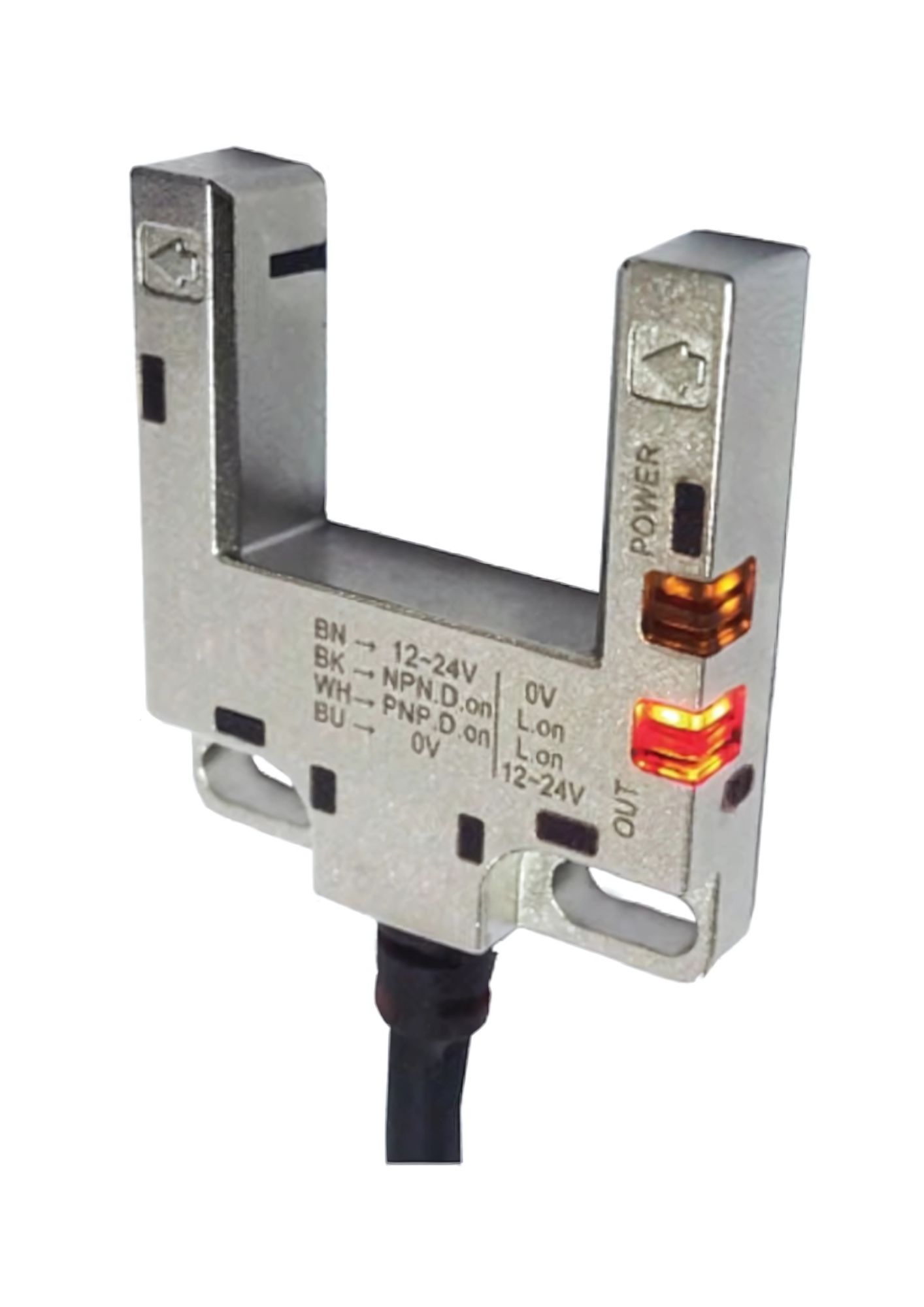

BU-18KM||18mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable
BU-18KM||18mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable

BU-18KM||18mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable

In stock
SKU
BU-18KM
Special Price ₹1,989.00 Regular Price ₹3,060.00
(18% GST Extra)
Add to Wish List
  • High-speed Response 1 kHz
  • Slot width 18mm
  • Reverse Power Polarity and Short-circuit (Overcurrent) Protection Circuit
  • BU-18KM has a better Prevention of outside Light.
  • Selectable Dark ON / Light ON and PNP / NPN
  • Solid die Casting Case
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Type: PNP(NO) Dark on / PNP(NC) Light on / NPN(NO) Dark on / NPN(NC) Light on
  • Sensing Distance: 18 mm
  • Emitting Light: Infrared LED 940 nm
  • Detection object : Opaque
  • Operating Voltage: 12~24VDC
  • Current Consumption: 35 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Response Time: 1 ms Max.
  • Ambient illumination: Incandescent light / 5,000 lux max.
  • Insulation Resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -10°C ~ + 55°C (No freezing allowed)
  • Ambient Humidity: 45% ~ 85% RH
  • Vibration resistance: 1.5-mm peak-to-peak amplitude, 10 to 55 Hz, 2 hours each in X, Y, and Z directions
  • Shock Resistance: 50G, repeated 10 times each in X, Y, and Z directions
  • Material: ZINC / Nickel-plated zinc alloy
  • Protection Degree: IP65
  • Wiring Method: Pre-wired Ø4.2 x 2 M / 4-wires
  • Weight: Approx. 70g
