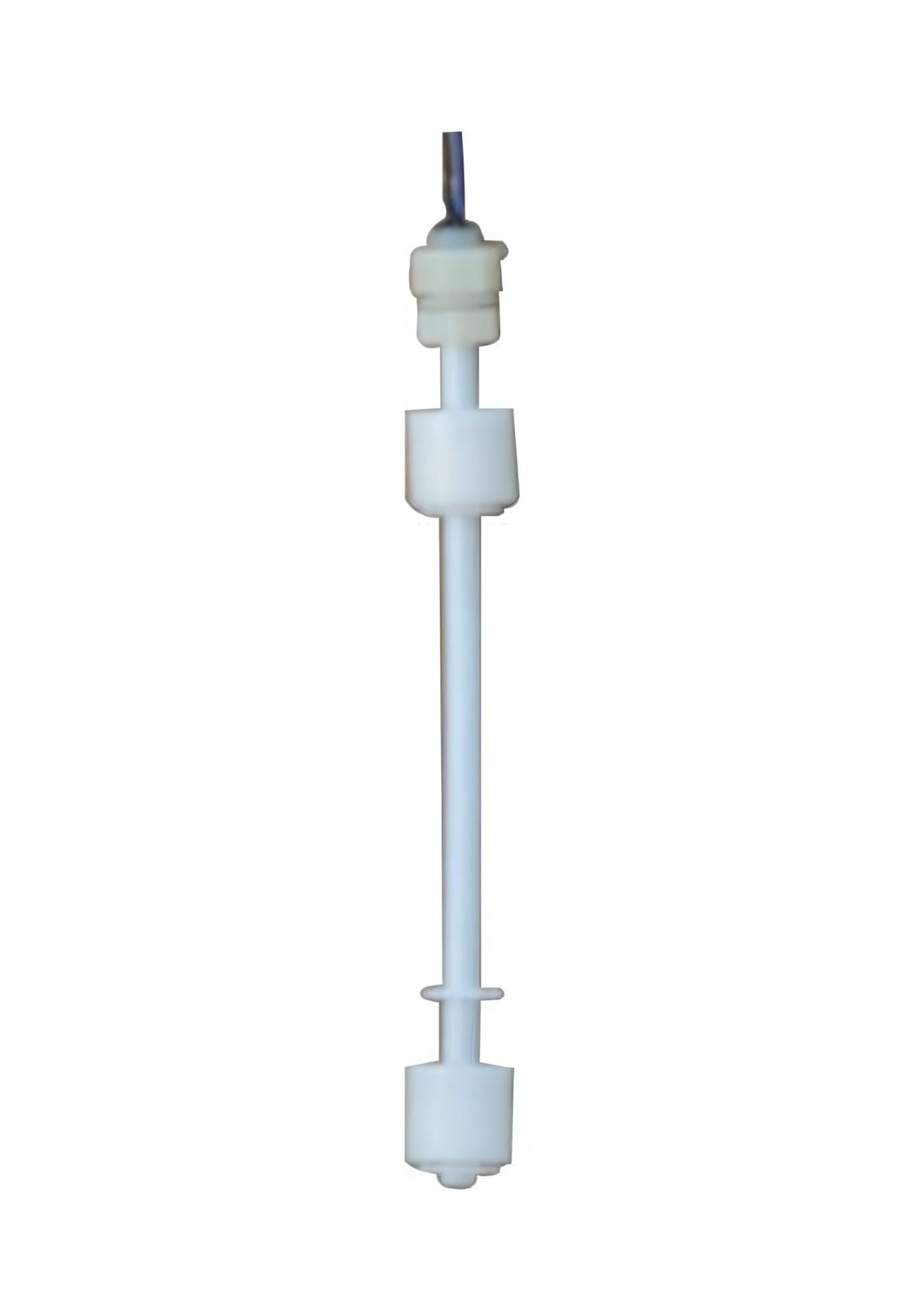

PSB2-200-2-2-P ||200mm Vertical Level Sensor, Two Ball Two Point, Plastic Body
In stock
SKU
PSB2-200-2-2-P
Special Price
₹585.00
Regular Price
₹900.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Blank: White PP Material
- Float Ball: White PP Material
- Float Body: White PP Material
- Seal Washer: Transparent silicone Pad
- Nuts: Beige nylon material
- Wire: UL1007 24AWG, black line
- Min. Shock Resistance: 30G
- Suitable Temperature: -20°C~80°C (Non Freezing)
- Min. Vibration: 30G (10~50Hz)
- Humidity: 95% RH (80°C)
- For: Water
- Insulation resistance: ≥ 100MΩ
- Contact resistance: ≤ 0.4Ω
- Max. limiting Current: 1.0A
- Max. Switching Current: 0.5A
- Max. Switching Voltage: 100V
- Max. Contact Power: 10W
- Switch Type: Normally Open (NO)
- Switch Operation: Selectable NO or NC by inverting float on unit stem
- Reed: 10W
- Magnet: Ferrite
- Resin: Black resin
- Operation Life: 1*10⁶ (DC: 5V, 10mA)
No specifications available for this product.
